3mm CNC Mild Steel Sheet Slotting Machine

3mm CNC Mild Steel Sheet Slotting Machine

US$22,900.00
1 set
US$22,500.00
2 set
US$22,000.00
3+ set

Basic Info.

Model NO.
LZK 1250-4000L
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Model
Lzk 1250-4000L
Grooving Metal Thickness
0.4-5mm
Grooving Metal Size
1250X4000mm
Grooving Speed
5m-70m/Min
Max Grooving Depth
2.5mm
Weight
8800kg
Number of Installed Knives
3
Main Electrical Components
Schneider
Hydraulic Cylinder
Taiwan Brand
Servo Motor
Taiwan Brand
Alloy Rack
Taiwan Yyc Rack, Yyc Gear
Warranty
1 Year
Transport Package
20gp
Specification
6060x2300x1600mm
Trademark
LZK
Origin
China
HS Code
8441309000
Production Capacity
100 Set Per Month

Product Description

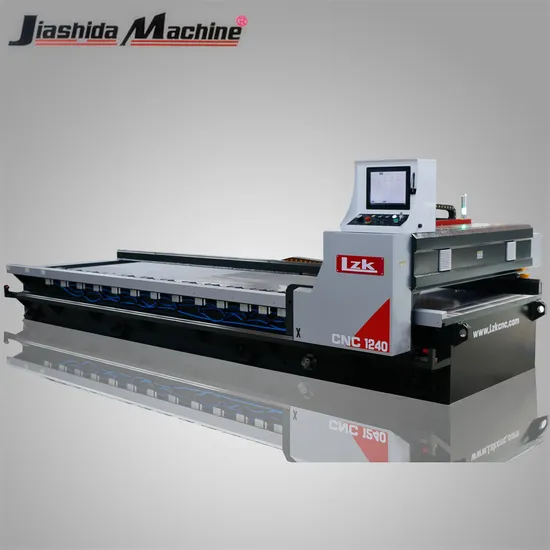

3mm cnc mild steel sheet slotting machine
Function Introduction
This equipment is a fully CNC gantry type slotting machine. This machine tool adopts advanced CNC system with novel design. It has the characteristics of high processing precision, simple operation, no noise and no vibration. The machine tool is used for V-groove, U-groove and other irregular grooves on sheet metal parts (including stainless steel plates, aluminum plates, aluminum-plastic plates, copper plates, iron plates, bakelite boards, acrylic plates and other special plates. Processing, especially suitable for V-groove processing before bending of sheet metal parts.
