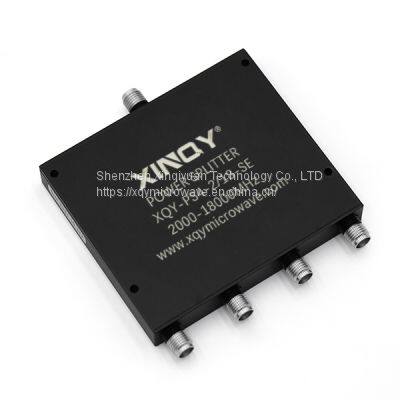

4 Way SMA Power Divider/Combiner 2-18GHz

Product Description

Product Description
● Model Number:XQY-PS4-2/18-SE
● Wideband Frequency :2-18GHz
● Low Insertion Loss :≤2.0 dB
● low VSWR:
Input Port VSWR:Typ.1.35 / Max.1.5
Output Port VSWR:Typ.1.25 / Max.1.4
● Excellent Amplitude Balance:±0.4 dB
● High Port-to-Port Isolation:Typ.22dB / Min.17dB
● Input/Output connector type:SMA-Female
● Customed frequency bands,connector type and optimized specifications are available.
4 Way SMA Power Combiner 2-18GHz is an RF broadband, 4 way, power divider/combiner furnished with SMA female coaxial connectors.The broadband band frequency from 2 - 18 GHz are covered with optimal performance. Max microwave input power levels up to 20 watts,which can be handled in power splitter and up to 1 watts as power combiner applications.Customed frequency bands,connector type and optimized specifications are available! For any enquiries about our products or any customization, please Contact us, and we will quickly get back to you.Please see Parameters tables for details.
Advanced technology
All XINQY power divider,power splitter, combiner adopt advanced technology: precision CNC machining,SMT,eutectic sintering and hybrid microassembly.We have a variety of surface treatments for Power Splitters/ Combiners such as Sandblasting natural Color Conductive oxide, Painting (black paint or blue paint) which in order to suit different applications.
Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, so that the products can obtain the double guarantee of mechanical and electrical properties.According to the characteristics of different products, develop specific SMT process to ensure efficient and high-quality installation effect; X-ray and AOI detection equipment are used for detection, without leaving any hidden dangers of mounting.Adopting eutectic sintering process, the frequency characteristics, heat dissipation characteristics and reliability of the product are effectively guaranteed.
