Brand Well-Sold Vmc850 (H) , Vmc1060 (H) , Vmc1160 3/4/5axis Horizontal Metal CNC Cutting Mini Vertical Driling Graphite Milling Machine Machining Center Tools

Product Description

Company Profile
Product Description

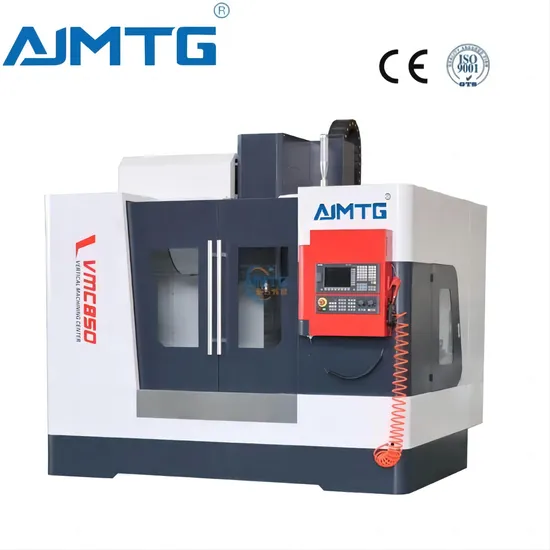

Well-sold VMC850(H),VMC1060(H),VMC1160 3/4/5axis Horizontal Metal Cutting Mini Vertical Driling CNC Milling Machine CNC Machining Center VMC
Vmc550 650 850 1160 1270 1370 1160 1890 OEM ODM High Quality Vmc3 axis 4 Axis 5 Axis Universal CNC Vertical Horizontal CNC Machining Center Machining BT40 BT50 4 5 axis cnc milling machine manufacturer vertical machining center pirce AJMTG Most Popular 3 axis VMC CNC Vertical Machining Center (VMC from small to big size, the web pages are limited, so please contact us for more details)AJMTG cnc vertical machining center belongs to one of our most economic cnc machining center for heavy duty field. The motor power is 5.5 kw even more, Spindle taper is BT40 or customized. It can load 500kgs work piece. It is quite new condition not used cnc machine center. This vmc machine is made in China. The main features are as below:1.The struction of the precision being connected with automatic lubrication device.2.Use the ball screw with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidity.3.The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure4.Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in calories and could do milling, drilling, reaming, boring, reaming and tapping5.All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function. Enhance machining accuracy.6.Taiwan spindle/ball screw/ bearing is available.7.X/Y/Z linear guide way is available.8.Ultimate 10000rpm spindle speed is available9.Portable hand wheel10.OEM or ODM is available.11.Customized color and voltage or LOGO.12.China top one quality and good after sale service.
Product Parameters

Machining range	X axis travel	800mm
	Y axis travel	500mm
	Z axis travel	500mm
	Spindle nose to worktable	150-650mm
	Spindle to column guide	550mm
Worktable	Worktable size	1000x500mm
	T slot	18X5X90mm
	Weight load	500kgs
Spindle specification	Spindle	8000rpm belt drive Japan make
	Spindle motor	7.5kw
	Spindle taper	BT40(Ø140)
Feed system	G00 fast feed	48/48/36m/min
	G01 cutting feed	1-10000mm/min
	Servo motor	2*2*3kw
Tool system	Capacity	24 tools arm type Taiwan make
Main parts		Make
Ball screw		Taiwan C3 grade diameter 40mm, pitch 12/16mm
Linear guide		Taiwan HIWIN or Germany 35mm pin roller type
Spindle		Taiwan diameter 140mm , 8000 rpm
Tool magazine		Taiwan BT40-24 tools arm type
Bearing for 3 axis		Germany or Japan Nachi, Screw Angle Support Bearing 30X62
