Panel Saw Altendorf Saw Machines Wood Cutting Saw Woodworking Automatic
| US$2,500.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZD400T
Layout
Horizontal
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Gross Weight
1100kg
Sliding Table
European Style
Voltage
220V 1phase / 380V 3phase (Optional)
Shipping Port
Qingdao
HS
84659100
Transport Package
Wooden Box
Specification
3250*3150*900mm
Trademark
QDZD
Origin
China
HS Code
84659100
Production Capacity
500sets/Month
Product Description

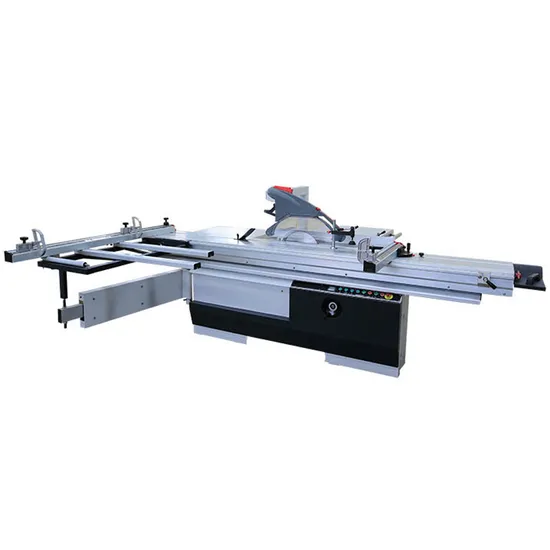

Panel Saw Altendorf Saw Machines Wood Cutting Saw Woodworking AutomaticTechnical Parameters
| Gross cut capacity | 3200mm |
| width of cut between the saw blade and rip fence | 1250mm |
| Tilting saw group | 0-45 |
| Diameter of main saw blade | 400mm |
| Diameter of scoring saw blade | 120mm |
| Max cutting height 90° | 120mm |
| Speed of main saw spindle | 3000/4000/5000 rpm |
| Speed of scoring saw spindle | 8000 rpm |
| Main saw motor power | 5.5kw |
| Scoring saw motor power | 1.1kw |
| Main spindle diamater | 30mm |
| Scoring saw spindle diameter | 22mm |
| Gross weight | 1100kgs |
| Overall dimension | 3250*3150*900mm |
Relative Machine
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
The Workshop
Product Details:
Feature:
1,Apply to processing all kinds of density boards,shaving boards,artificial boards,ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.
2,Moveable table guide track is chromium steel bar structure, exact and durable
3,The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
4,With oxidation treatment, the sliding table surface is beautiful and durable
5,The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise
