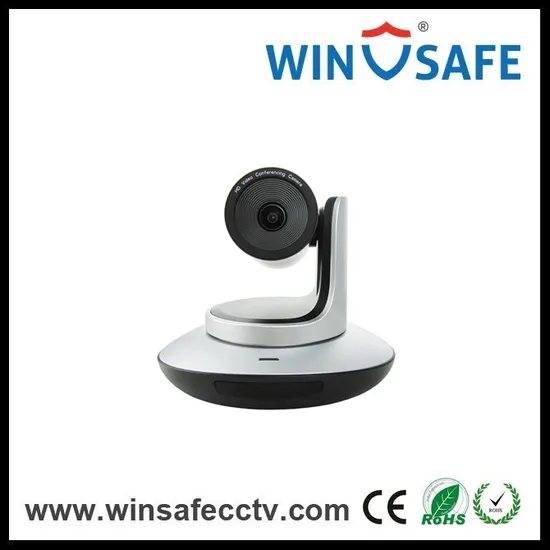

Visca USB3.0 PTZ Video Conferencing Camera

Product Description

Digital video recording camera USB 3.0 PTZ Video conference camera
Camera's Advantages
* Ultra crystal video quality: with Ambarella A9 DSP 1/2.3 5MP Sensor
and high quality 12x lens
* Fast switching between different video formats: only 3 senconds
needed
* Fast and accurate focus performance
* Easy firmware upgrade: no need to open the camera housing
* USB2.0 compatible
* Compatible with the majority of video conferencing software
(UVC 1.5 protocol standard)
* With powerful functional remote controller
* Multi language OSD menu: support English, Chines, Russia, Spanish
* 2 years warranty time
Features
* USB 3.0 super speed transit
* Zoom: 12X optical Zoom + 12X digital zoom
* 1920x1080p 60fps high resolution
* 72.5° field of view
* Ultra smooth PTZ mechanism
* Accurate PT motro control
* Up to 128 presets
* Effective RS232/RS485 seria control
* Exposure Compensation, 3D-noise reduction function
* Image flip function support upside-down installation
* Mounts: Wall mount & in-ceilling mount available
* Sony Visca and Pelco D/P protocol controls
Technical Specification

Model No.	UHV-12X-U3S
Sensor	1/2.8 inch high quality, 5MP HD CMOS Sensor
Video System	1920x1080p60/50/30/25, 1280x720p60/50/30/25
Zoom	12x optical zoom, 12x digital zoom
View Angle	6.3°(wide) - 72.5°(tele)
Focal Length	f=3.92(wide) - 47.32mm(tele)
S/N Rate	Above 50dB
Minimum Lux	0.1Lux
White Balance	Auto/Manual
Focus	Auto/Manual
Iris	Auto/Manual
Electronic Shutter	Auto/Manual
Black Light Compensation	ON/OFF
Anti Flicker	50Hz/60Hz/OFF
Pan Rotation Angle	- 170° - +170°
Tilt Roation Angle	- 30° - + 90°
Pan Rotation Speed	0° - 120° /s
Tilt Rotation Speed	0° - 80° /s
Preset	128 via RS232 control, 10 via remote controller
Control Port	RS232(sony visca), USB3.0(UVC1.5 protocol)
Video Port	USB 3.0(YUY2 format)
Power	DC12V
OSD Menu	English/Spanish/Russian/Chinese
Dimension(W x H x W)	220mm x 173mm x 117mm
Package	320mm x 300mm x 310mm
Net Weight	1.25KG(2.8LBS)

Dimensional Drawing(mm)
Input/Output Interface
Our Advantages
High quality products
Full selection range
Two years warranty/free maintainance
OEM & ODM Service
CE, FCC, RoHS Certified
Payment: T/T, Paypal, Western Union D/P L/C
3-5 daysprompt delivery
Welcome sample order for testing
Excellent after-sales services
Experienced sales team
Our Service:
1) We'll Gurantee you 100% Satisfaction
2) Pls report us if there are any problem, we will solve it ASSP.
3) This irems comes with 2 Years warrantry
4)Shipping and handing fees are not refundable for return
5) Should you have any question or problems, please send e-mail, call us or talk with us online
