Portable Concrete Pump Mixer with Good Service Cement Mixer with Pump Machine Price

Portable Concrete Pump Mixer with Good Service Cement Mixer with Pump Machine Price

US$6,000.00-29,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DHBT15E
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Productivity
35m²/h
Certification
ISO9001: 2000
Condition
New
Color
Customizable Colors
Delivery Height and Horizontal Distance
70m/300m
Hydraulic Oil Tank Volume
200L
Concrete Outlet Diameter
Φ180mm
Hopper Capacity × Filling Height
600*1400 (L*mm)
Towing Speed
Max. 8km/H
Total Weight
5600kgs
Tyre Size
700r16
Specification
5100*2200*2450 mm
Trademark
HAMAC
Origin
China
HS Code
8705400000
Production Capacity
20 Pieces/Month

Product Description

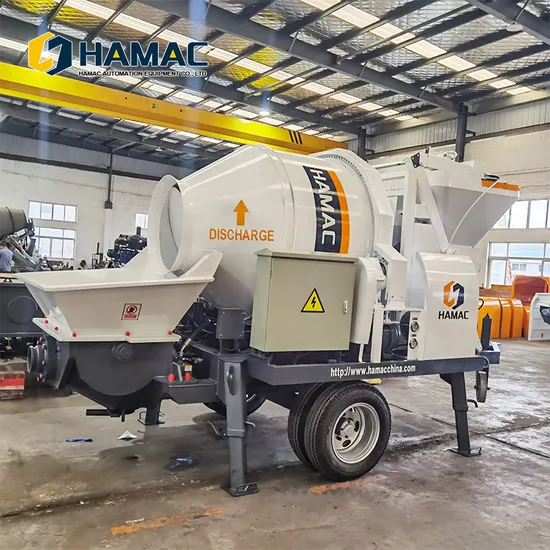

Concrete mixer pump combines concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete.
In the past time, the clients wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pumping machine to deliver the concrete to the buildings or jobsites. There will be two machines to finish the job. It required more people for the projects.
As a mature manufacturer of concrete pumping machines, HAMAC designed this series portable diesel concrete mixer with pump which is suitable for different projects. We have two options, one type is equipped with drum concrete mixer, another type is equipped with twin shaft concrete mixer which can mix the concrete uniformly.
It is a new designed versatile concrete machine, one stop solution for concrete mixing and pumping.
FAQ
1. How many meters high and far the concrete mixer pump can reach? Our concrete mixer with pump for sale can reach 70 meters high, 300 meters far, it is an actual data for concrete; 2. What is the price of the concrete mixer with pump? It depends on the different models, normally speaking, the price is between 25000-35000USD; 3. How many meters pipes and elbows are included in the quotation? 100 meters steel pipe will be included; 4. How can I control the weight of different sizes aggregates and sand, cement, water for the concrete mixer pump? Normally speaking, these different sizes of aggregates, sand and cement were fed by volume, so the weight is not so accurate. If you want to feed the different materials in an accurate weight, you have to use an aggregate batching machine. The water quantity is controlled by the time relay to control the working time of water pump;
Parts Name/Parameters Parts Specification
Models HBT15 DHBT15E DHBT15 DHBT15 PRO
Power Power supply model Electric Motor Diesel engine Diesel engine Diesel engine
Electric Component Siemens/Schneider/Omron
Mixing System Mixer JZM450 drum mixer, 750L charging hopper, 450L concrete output per batch
Mixing Motor Hydraulic Hydraulic Hydraulic Hydraulic
Hoist Motor Hydraulic Hydraulic Hydraulic Hydraulic
Submersible Pump 0.75kW 0.75kW 0.75kW
Max. Theoretical Mixing Output 18-22m³/h
Pumping System Main Motor 45kW, electric motor 52kW, Weichai diesel engine 62kW, Weichai diesel engine 92kW, Weichai diesel engine
Motor Rated Speed 1480 RPM 1800 RPM 1800 RPM 1800 RPM
Mian Hydraulic Oil Pump KAWASAKI K3V112 Domestic brand K3V80 KAWASAKI K3V112 KAWASAKI K3V140
Double Gear Pump 25&16
Valves overflow and directional valves, OM/HUADE, Italy brand/China brand
Main Oil Cylinder Φ100*Φ70*1000mm
Delivery Cylinder Φ200*1000mm
S Valve Φ200mm
Cutting Ring Φ200mm
Glass Wear Plate Φ200mm
Max. Theoretical Pumping Output 40m³/h
Outlet Pressure 10Mpa 6Mpa 8Mpa 10Mpa
Hydraulic System Type Open circuit
Motor Rated Voltage 380V, 3P Diesel engine Diesel engine Diesel engine
Max. Aggregate Size Pebble:40mm Aggregate:30mm
Delivery height and horizontal distance 70m/300m
Hydraulic Oil Tank Volume 200L
Concrete Outlet Diameter Φ180mm
Hopper Capacity × Filling Height 600*1400 (L*mm)
Machine Size(LxWxH) 5100*2200*2450 mm
Total Weight 5600kgs 5300kgs 5600kgs 5800kgs
Tyre Size 700R16
Towing Speed Max. 8km/h
