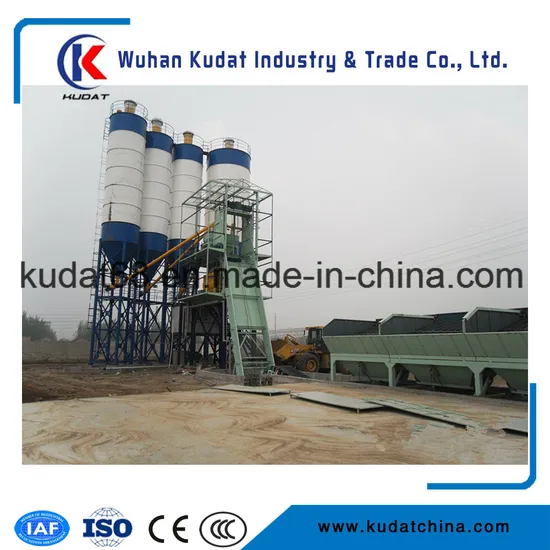

100tph Stationary Concrete Mixing Plant
| US$80,000.00-90,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HZS100
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
100m3/H
Feeding Height
1400mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Discharging Volume
2000L
Charging Volume
3200L
Drum Rotation Speed
100m3/H
Max. Aggregate Diameters
60mm
Mixing Motor Power
37kw
Overall Size
3580*2405*;2345mm
Lifting Motor Power
5.5kw
Weight
8600kgs
Voltage
380V
Mixing Time
30s
Transport Package
Nude
Specification
CE
Trademark
kudat
Origin
China
HS Code
847461000
Production Capacity
300unit/Month
Product Description
HZS100 Concrete Mixing Plant Configuration Table(100m3/h)| Item | Configuration | Specification, Model | |
| 1.Proportioning system PL3200 | Aggregate bin | each bin 16m3 | |
| Aggregate metering bin | |||
| Weighing sensor | |||
| Aggregate output belt conveyor | 800mm width×31500mm Length | ||
| Cylinder | SI-100-300 | ||
| Vibrator | MVE200/3 | ||
| Vibrator | MVE100/3 | ||
| Frame | |||
| 2.Aggregate hoisting system | Hoisting hopper | ||
| Gear motor | 37KW | ||
| Windlass mechanism | |||
| Rail rack | |||
| 3.Mixing main engine | JS2000Mixing tank body | ||
| Reducer | 429/311R2FZ | ||
| Motor | 37KW | ||
| Discharge system | |||
| Lubricating system | |||
| Shaft end main sealing parts | |||
| 4.Mixing main building | Main building support leg | ||
| Finished receiving hopper | |||
| Mixing floor | |||
| Metering floor | |||
| Stair walkway | |||
| High pressure cleaning system | SL40A | ||
| 5.Water weighing system | Water weighing box | 600kg | |
| Weighing sensor | |||
| Butterfly valve | DN100 | ||
| Water pump | |||
| Pipeline | |||
| 6.Cement metering system | Weighing bin | 1200kg | |
| Weighing sensor | |||
| Butterfly valve | SD300 | ||
| Vibrator | MVE60/3 | ||
| 7.Additive weighing system | Additive weighing box | 60kg | |
| Weighing sensor | |||
| Butterfly valve | GTB671X-10-50 | ||
| Additive pump | |||
| Pipeline | |||
| 8.Pneumatic system | Air compressor | ||
| Solenoid valve | |||
| Pipeline system | |||
| Air storage | CQG-0.1 | ||
| 9.Electric control system | Strong electric cabinet | ||
| Weak electric cabinet | |||
| Control console | |||
| Control room | 8m2 | ||
| Industrial computer | IPC810 | ||
| LCD | 17" | ||
| Contactor | |||
| Circuit breaker | |||
| Mini relay | |||
| PLC | |||
| UPS | TG500 | ||
| Printer | LQ635K | ||
| Air condition | 1.5P | ||
| Electric control assistant component | |||
| Connecting cable and accessory | |||
| 10.Heating System | Heating Outer Packing | ||
| Heating Pipes | |||
| 11.Powder supply system | Cement screw | φ273 | |
| Cement Silo | 100t | ||
