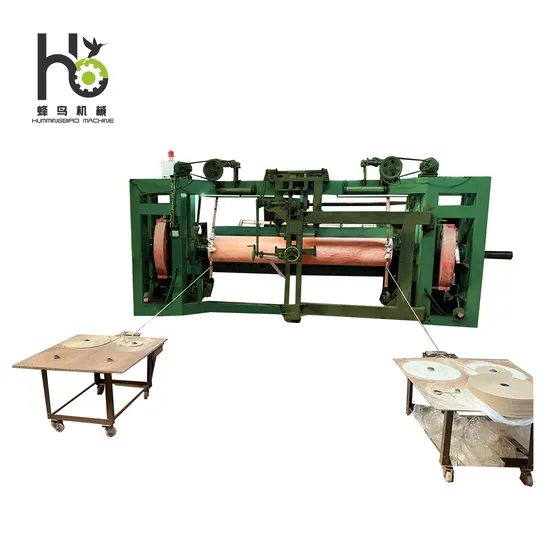

4FT*8FT Core Face Veneer Peeling Machine

Product Description

This Spindle-Less Veneer Peeling Machine adopts advanced technology and precision process design, and is designed for efficient and accurate plate processing needs. It integrates intelligence, durability and high precision, and can be widely used in wood processing, composite material cutting and other fields.
Equipped with an efficient dual-drive power structure and dual-roller synchronous motion technology, it significantly improves the equipment's operating stability and cutting uniformity. The key transmission parts are designed with oil-immersed screws, which greatly reduce the wear rate through oil film lubrication, extend the life of core components, and ensure long-term and efficient operation of the equipment.
Equipped with a large touch screen, integrated visual operation interface, and supports one-click adjustment of parameters such as thickness and speed. It can accurately execute complex processing instructions, reduce the intensity of manual intervention, and increase production efficiency by more than 30%.

Company Profile
Shandong hummingbird Machinery Co., LTD, located in Linyi city, Shandong province, has more than 20 years of experience in machinery production and improvement.The company established Hummingbird International Trading Company in order to expand the international market. After several years of efforts, the company's main products and equipment have been exported to Southeast Asia, the Middle East, South America, Africa and other markets.Looking forward to working with you to create, share the future!
Product Parameters

Model	HBXQ-7115A	HBXQ-6115B	HBXQ-7115C
Processing Length	1500mm	1500mm	1300mm
Max.Processing Diameter	600mm	600mm	500mm
Rcmaining Core Diamcter	24mm	25mm	25mm
Thickness Range	0.3-5mm (adjustable)	0.3-4mm(adjustable)	0.4-4mm
Line Speed	40-150m/min(adjustable)	30-110m/min(adjustable)	65m/min
Single Roller Motor Power	7.5KW*2	7.5KW*2	11kw
Double Roller Motor Power	7.5KW*2	7.5KW*2	7.5KW*2
Feeding Motor Power	7.5KW(servo motor)	7.5KW(servo motor)	11KW(servo motor)
Cutting Knife Motor Power	4KW(servo motor)	4 KW(servo motor)	2.2KW(AC motor)
Conveyor Motor Power	2.2KW	1.5 KW	1.5KW
Automatic CNC Knife Height Adjustment	0.74KW*2(servo motor)	\	\
Automatic CNC Knife Seam Adjustment Motor Power	2.3kW(servo motor)	2.3 KW(servo motor)	1.5KW
Total Power	47.48kw	45.3KW	43.3KW
Single Roller Reducer Model	R87	R87	R87
Double Roller Reducer Model	R87	R87	R87
Feeding Reducer Model	R87	R87	R87
Cutting Knife Reducer Model	RV110	RV110	RV90
Conveyor Reducer Model	RV90	RV90	RV90
Screw Diameter	70mm	70mm	70mm
Overall dimension	4450* 2140*1600	4350* 2040* 1500mm	3500*1900*1600 mm
weight	7Ton	6.5Ton	5Ton

Features
Detail Accessories
Section :A
Automatic tool changer
This machine adds hydraulic tool clamping technology, which can auto-matically change the tool by numerical control, saving workers the trouble of manually changing the tool.
Lead screw
The lead screw is protected by a shellon the outside, dust and wood shavwill not enter the lead screw, the feeding screw is soaked in oil, that can avoid the screw to be rust, can extend the working life.
Add according to customer needs
Considering that there are customers who require rotary cutting of veneers of different sizes, we can add vertical knives to the rollers according to customer requirements.

Section :B
Double transmission
Our mechine double-roller and sin-gle-roller each wear two motors, whichhave more power. machine adopts thedouble-roller movement mode, theveneer is evenly cut out, with an accuracy of ±0.01mm, and the remaining tail sheets are automatically trimmed.
Integrated large-screentouch computer
it is convenient to use the touchscreen to adjust the thickness andspeed of the rotary cutting, and thedegree of automation is higher.
Lead screw
The lead screw is protected by a shellon the outside, dust and wood shavings will not enter the lead screw, the feeding screw is soaked in oil, that can avoid the screw to be rust, can extend the working life.
Guide Rail
The guide rail part is made by high temperature quenching and CNC cutting method,increases the hardness, guide rail equipped with lubrication system ensure it to be unlimited service life.
Servo motor
The feeding motor is a famous brandservo motor, which ensures morestable and precise operation of the machine.
The veneer cutting motor is a servomotor, which has enough power tocut thick veneer, keep the cutting edge more smooth, and the size is more accurate.
Electroplating roller
All peeling rollers are quenched and electroplated, which improves the hardness and service life of peeling rollers.
Adopt cross rollers, the remainingwood core diameter is smaller.Note:There are different types of roller patterns, we will choose the appropriate roller pattern according to the different wood varieties of customers.
Oil pump
The oil pump automatically lubricates the guide rail in time according to the usage.
