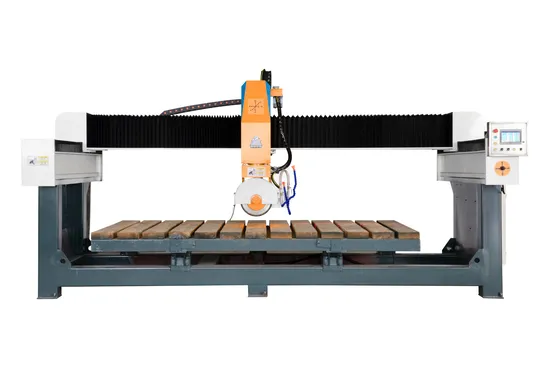

3+1 Axis CNC Bridge Saw, Miller, Stone Cutting Machine
Basic Info.
Model NO.
SL-Q-3+1
Type
CNC Cutting Machine
Usage
Jadestone, Granite, Marble, Granite/ Marble /Quartz
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V/415V/440V/220V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
CCC, CE, SGS
Power
22kw
Working Size
3.2*1.6m
Using Area
Stair,Table(Round or Square),and Edge Cutting
Axis
3 +1
Transport Package
Standard
Specification
Export standard
Trademark
Geyin
Origin
China
Production Capacity
100/Month
Packaging & Delivery
Package Size
500.00cm * 230.00cm * 240.00cm
Package Gross Weight
3000.000kg
Product Description
3+1 axis CNC bridge saw ,miller , stone cutting machine
It adopts PLC and touch screen control system, simple to operate,Easy to install . The machine structure is integrated, with small area .
It used for processing materials such as marble, granite, quartz, ceramics, porcelain, etc.
The main components: imported accessories, servo motors, PLC,touch screen.
The machine head can rotate at any angle between 0-90 degrees. The workbench can be flipped 85 ° and also includes 45 ° chamfer . Working: Cross cutting. Vertical cutting. Open a square basin. L-shaped.
1.OEM/ODM Optional
2,Support English ,Vietnamese,Spanish ...
3.45 ° chamfer
| Saw blade diameter | Φ350-Φ400 MM |
| Max.working dimensions(L*W*H) | 3180*1980*80 MM |
| Workbench dimensions(L*W) | 3100*1900 MM |
| Workbench tilting degree | 0°-85° |
| Head rotating degree | 0°-45°-90° |
| Head chamfering rotation | 0°-45° |
| Main motor power | 11 KW |
| Total power | 12.5-14.5 KW |
| Water consumption | 3.5 m³/h |
| Machine weight | 3500 KG |
| Trolley dimension(L*W*H) | 4800*2650*2600 MM |
