Wooden Case 0.8~8mm Horizon 1160X630X1140mm China Dental Laser Welding Equipment

Product Description

Product Description
2024 New Function 3 in 1 China 1500W 2000W 3000W Handheld Fiber Laser Welding Machine for Metal Stainless Steel Carbon Aluminum

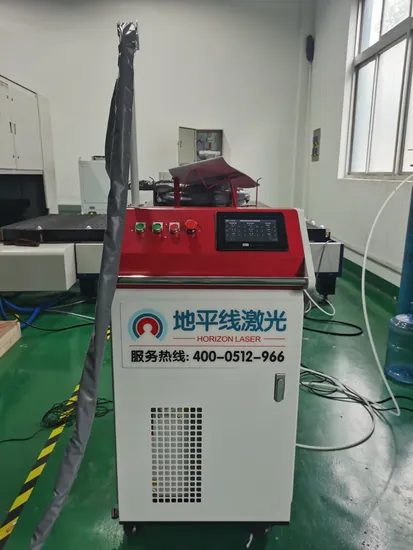

The 3in1 handheld fiber laser machine is a new high-power continuous fiber laser equipment launched by Horizon Laser Technology Co., Ltd. It supports three major applications: laser welding, laser cleaning and laser cutting. Handheld welding is convenient for the welding of boilers, advertising characters, cabinets, doors and windows, etc.; handheld cleaning can be applied to the renovation of rail transit, shipbuilding, petrochemical pipelines, and mechanical parts; handheld cutting is suitable for cutting 1-2mm stainless steel, carbon steel, Aluminum and other metal sheets.
The 3in1 handheld fiber laser machine is mainly composed of a continuous fiber laser, a handheld 3in1 processing head, a chiller, a wire feeder, a 3in1 laser control system, and a safety light output system for welding, cleaning and cutting of products.
Detailed Photos
Laser Power:
1. MAX/RAYCUS/IPG/JPT/BWT/Customized
2.Advantages: High beam quality Alternative lamp pump lasers High photoelectric conversion efficiency Pulse and continuous working modes High pulse power, stable power, and high peak power
Water Chiller: Brand: Bingyue/Hanli/S&A Good dustproof and anti-condensation effect. Intelligent control self-adaptive hot and cold dual temperature adjustment. Separate cooling of cleaning head and laser source. Stable laser output,fast and energysaving.
Smart Control Panel Language: 19 languages, such as: English, German, Russian, Vietnamese, Thai, Turkish, Portuguese, French etc. The full-screen operation interface makes the working status clear at a glance. The operation panel is simple to set and easy to learn. Complicated training is not required.
Handheld Welding Gun: Pure copper welding nozzle,integrated gas protection system. The hand-held welding head is light and flexible,which can realize welding of any part of the workpiece. You are not easy to fatigue after a long working time.
Auto Wire Feeder
Auto Wire Fedder Included When the welding gap is big or you want a stronger welding strength,wire feeder is needed. You can turn off the feeder function when you do not need it
Free Accessories Including:
Product Parameters

Technical Parameters

Model	DPX-W1000	DPX-W1500	DPX-W2000	DPX-W3000
Laser Source Type	CW fiber laser source(Wavelength: 1080±3nm)
Output Power	1000W	1500W	2000W	3000W
Power Adjustment Range	10%~100%
Welding Mode	Continuous Welding, Spot Welding
Adjustable Weld Width	0.2~5 mm
Torch Cable Length	About 10m
Torch Weight	<1.2 kg
Dimensions(L*D*H)	1000*550*700mm		1200*600*1300mm
Net Weight	150kg		250kg
Power Consumption	<5kw	<7kw	<8.5kw	<10kw
Operating Voltage	Single-phase 220VAC/ Three-phase 380VAC
Working Environment	Temperature:0~40ºC,Humidity<70%
Safety Light Emission System	1. Safely earth lock: the welding head can control the light emission only when the welding head touches the work-piece.2. Gas detection: The alarm red light will indicate when the gas cylinder is not opened or the gas flow is low. 3. Welding gun firing button and laser shutter, double insurance to emit light.

Welding Performance

Recommended Welding Thickness for Different Materials
Model	DPX-W1000	DPX-W1500	DPX-W2000	DPX-W3000
Stainless Steel	≤3.0mm	≤4.0mm	≤6.0mm	≤8.0mm
Mild Steel	≤3.0mm	≤4.0mm	≤6.0mm	≤8.0mm
Galvanized Sheet	≤2.0mm	≤3.0mm	≤5.0mm	≤6.0mm
Aluminum Alloy	≤2.0mm	≤3.0mm	≤4.0mm	≤5.0mm
Brass	≤2.0mm	≤3.0mm	≤4.0mm	≤5.0mm
Note: The above is the maximum processing capacity of each model.

3 IN 1
The Differences between Traditional Welding and Laser Welder

	Traditional Welding Methods	Laser Welder
Speed	Average	Up to 4X Faster than TIG
Quality	Depends on the user experience	Consistent high-quality results
Learning Curve	Steep	Quick and easy
Materials Flexibility	Limited with consumables changes	Wide range with no set up
Distortion and Deformation	High	Very low
Heat Affected Zone	Large	Small
Wobble Welding	No	Yes-up to 5mm additional weld width
Pre and Post Weld Cleaning	No	Yes-up to 15mm cleaning path

Packing & Shipping

Cutting Samples

Our Advantages
Shenzhen Horizon Laser Technology Co., Ltd is a new high-tech enterprise integrating technical services, technology promotion, laser equipment modular design, sales and integration services. Horizon Laser has many senior technical experts (Covering machine tool design, optics, automation integration, laser process development) from well-known laser companies. Horizon laser is mainly committed to promoting laser processing technology, popularizing laser applications, and reducing the asymmetry of client information through modular sales and integration services of laser equipment, and strives to achieve an satisfaction for customers to buy and use.

Certifications
After Sales Service
1. 7*24 hour
2. Response time<12 hours
3.Online support
4.Product replacement
5. Customer field service
6. Backup products during repairing for long time cooperators
* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
