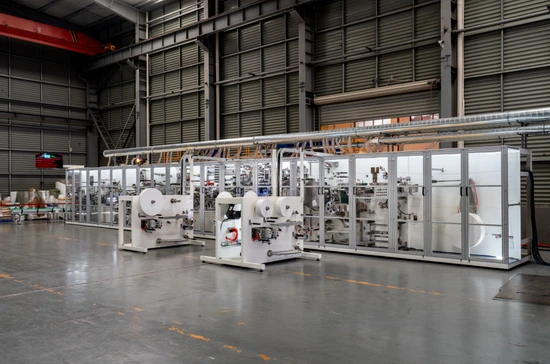

High-Efficiency Full Servo Sanitary Napkin Manufacturing Machine for Modern Production
| US$700,000.00-2,500,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CSG-PL2500
Real Running speed
＞800PCS/min
Automatic Grade
Automatic
Certification
CE, RoHS, ISO, CCC, SAA, C-tick, NOM, PSE, GOST, EMC, E-Mark, UL
Condition
New
After-sales Service
After Sales Services&Training
Pass Percentage
97%-100%
Color
Customized According to Requirements
Product Structure1
Fast-Easy Packing Sanitary Napkin
Product Structure2
Straight Packing Sanitary Napkin
Product Structure3
Individual Packing Sanitary Napkin
Power
180-330kw
Transport Package
Wooden Crates/Cases
Specification
26m*3.5m*3m
Trademark
YUHONG
Origin
China
HS Code
8441901090
Production Capacity
25 Set/Year
Product Description
Full Servo Sanitary Napkin Machine Product Description| CSG-SN1500EP Full Servo Sanitary Napkin Machine | |
| Product Stucture | |
| 1 | Fast-easy packing sanitary napkin |
| 2 | Straight packing sanitary napkin |
| 3 | Individual packing sanitary napkin |
| Main Technical Parameters | |
| 1 | Supply: 3 phase,380V,50Hz |
| 2 | Power:180-330KW(Excluding hot melt applicator and Compressor) |
| 3 | Production speed:600-1200pcs/min |
| 4 | Qualification:≥97% |
| 5 | Outside dimension(m):32 x 8.5 x 3 (L×W×H)( for reference) |
| Main Function and Features | |
| (I)Mechanical part | |
| 1 | Pulp SAP mixing product and laminating core product are compatible |
| 2 | High-density ultra-thin fluff core forming system,good absorbability |
| 3 | Core punching on-line and top sheet printing rule position function |
| 4 | With web guiding system |
| 5 | Machine with count function and directly connect with packing machine (option) |
| 6 | Packing machine(option) |
| 7 | Dust collection filter system (option) |
| 8 | Straight packing with fixtape separating function(option) |
| (II)Electric part | |
| 1 | Full servo motor drive and PLC control |
| 2 | One button for size change, quick and less waste |
| 3 | High-precision tension control system,active un-winding and auto-splicing system |
| 4 | i-MAS Intelligent equipment mangement and analysis system |
| 5 | Material auto-splicing end joint limit at 3m, and decrease material wastage |
| 6 | Material automatic inspect,broken and lost alarm system |
| 7 | Material picture ruled position application |
| 8 | Vision inspection system (option) |
| 9 | Elastic BTSR tension control system, single tension adjust(option) |
Sales Service
Company Profile
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO.,LTD
With nearly 30 years design and manufacturing of disposable hygiene machine( Sanitary napkin machine , Under pad machine , Adult & Baby diaper machine) , more than 30 sets production line per year, and provided thousands of machines to our customers around the world. Especial enjoyed the good reputation in China, South-east Asia, middle-east, and Europe. FAQ
