120W 3030 SMD LED LED Street Lamp Aluminium Housing

Product Description

Product Description

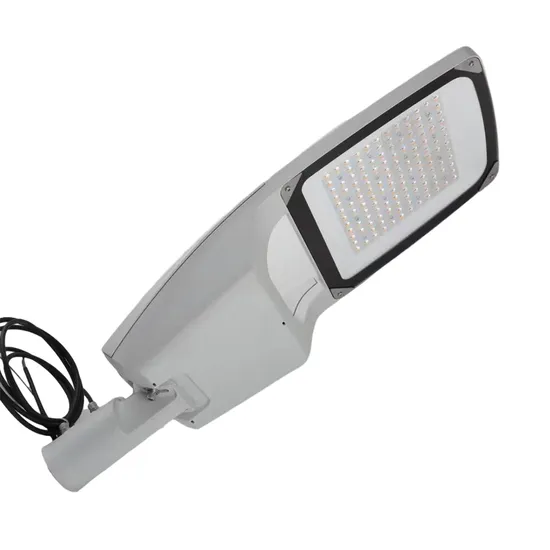

LED Urban Street Lighting YASL-27

Features:
50 60 100 200 Watt LED STREET LIGHT produces 6500-26000 lumens at 130 lumens / watt and has durable die-cast aluminum
heatsink housing. perfect for street lighting and parking lots.
Color Temperature is 4000K. Top of fixture is solid and smooth to discourage birds from nesting or using as a platform.
Fixture has tool free access for ease of maintenance. Photocell options include 3 pin and two 7 pin options. You have the
option of choosing between frame version and glass version .
INSTALL.
This fixture is mounted on a 4-16m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15°
Fixture has internal clamps to secure itself to pole.
This 150 Watt LED STREET LIGHT is ideal for residential street and parking lot outdoor lighting applications. It is
also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree. This fixture has 1000 hours salt water spray
test. Fixture is tough and durable rated at IK08 impact rating.
ENERGY SAVINGS.
High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.
Compared to metal halide lamps ,the average savings obtanined using LED Lighting is approx 70% ,90% to halogen lamps .
This fixture provides a lumen output equal to 400 Watt Metal Halide and can reduce your lighting bill when
compared to metal halide and hps lighting.
WARRANTY / CERTIFICATIONS.
LED Lighting Supply provides a 5 year warranty along with CE and Rebate Eligible certifications.
IP66 CE ROHS
Product Description:

Photometric

Product Size

Streetlight Requirements - 5 Years Warranty Product

S.No	Requirement	Requirement	Test Standard
Physical requirements
1	Housing type	Heavy-duty rugged pressure die-cast aluminium alloy	ISO 3522
2	Cover	Tempered Glass
3	Gasket	Silicon Rubber gasket
4	Housing wattage range	30W 40W 50W 60W 80W 100W 150W 200W 220W 240W
5	Socket Options	NEMA socket, Photocell, Smart controller, Shorting Cap
6	Stainless-steel components	Minimum 316L Grade 316L
7	IP Protection	IP66	IEC 60529
8	IK Protection	IK08	IEC 62262
9	Tool free opening	Tool-free access to gear compartment
10	Corrosion tests in artificial atmospheres - Salt spray tests	EN/ISO 9227 - Corrosion tests in artificial atmospheres - Salt spray tests for 1000 hours	EN/ISO 9227
11	Vibration test	ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration	ANSI C136.31
LED and Optics
1	LED Make	CREE
2	LED Type	>2W High power LED with ceramic base (3V - Single chip die) >2w
3	LED driving current	<750mA
4	LED life	>100,000 hours @L95	LM80 and TM21
5	Optics Material	UV PC
6	Lighting distributions	Type I, II, III, IV
Thermal Requirements
1	Product ambient temperature range	-40°C to 55°C
2	Product Storage temperature range	up to 85°C
3	LED Case temperature (Tc)	<75°C @50°C ambient temperature	UL1598
4	Driver Case temperature range	<85°C @50°C ambient temperature	UL1598
Performance
1	Input Voltage Range	110V 120V 220V 270 305VAC - 50/60Hz	IEC 60598-2-3
2	Power Factor	>0.90	IEC 60598-2-3
3	THD	<20%	IEC 60598-2-3
4	Surge Protection	10KV
5	Dimming	1-10V or 1-10V+DALI
6	Appliance class	Class I or Class II	IEC 60598-2-3
7	CCT	3000K/4000K/5700K	ANSI C78.377A
8	CRI	>70Ra	ANSI C78.377A
9	MacAdam	<3 Step Binning	ANSI C78.377A
10	Product life	>100,000 hours @L80	TM28
11	Lumen efficacy As per LM-79	≥ 160lm/W (25°C ambient temperature)	LM-79
12	Lumen efficacy As per LM-82	Not more than 5% difference form LM79 result	LM-82
13	LED module connector and wire joint connectors	UL approved	IEC 60598-2-3
14	Electrical wires between Driver and LED modules and NEMA socket and driver	Must be UL approved	IEC 60598-2-3

Detailed Photos

Company Profile Die-Casting man was established in 1996 which is one of the lighting manufacturers with design & development, production & testing.
We continue to offer a superior range of production and service including street light, high bay and die casting OEM products.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products
with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries.
Also we fully understand high quality is another important element for long term business development. We keep it in mind that
products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories
and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
FAQ

1	what are your MOQ requirements	1-5 pieces for samples. 100MOQ for mass production. For your first order we can accept small quantity.
2	what about the LED Chips?	We can use the led chip that you required.
3	What about the LED driver?	We use any brand that you required.
4	What is your main product ?	Die-casting Man supply design, tooling, die-casting injection, machinning, painting, assembling and testing service for street light and OEM die casting products.
5	Guarantee of your product?	We offer 5 year guarantee for our customer. 50000 hours and 5 year guanrantee
6	Doea your fixture pass New EPR and Harmonics	Yes we are
7	Surge Protect	atleast 4kV for L-N and 6kV N/L-PE depends on which brand of drvier that you use.
8	Are you able to sell empty house	Yes we sell empty house
9	Do you have a body with easy plug and play module and driver installation	Yes, I suggest out type YASL-20 to you. Please see attached catalog page.
10	Can I put logo on the house?	Yes you can. We have two options. First option screen printing your logo on the house, no MOQ required. Second die casting logo on the house, MOQ 1000 pieces each item. There will be additional cost for both screen printing and die casting logo.
11	If I have some defective goods, what will you do?	If occasionally defective goods, we will send you free replacement with your next order. If defective rate >1%, We will send you free replacement components like driver, SPD, PCB with leds. We will not cover the freight and maintaining cost in your country.
12	what services can you provide?	Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,EUR,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,PayPal; Language Spoken:English,Chinese,Japanese
13	how can we guarantee quality?	Always a pre-production sample before mass production; Always final Inspection before shipment;
