8 Megapixels Resolution HD 4K Camera for Video Conference
| US$55.00-60.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SX-6800H
Optical Zoom
Without Optical Zoom
Spectral Rrange
Infrared Camera
Image Sensor
HD CMOS
WiFi
Not Support WiFi
Product Positioning
Professional
Product Name
5.0megapixels USB Camera for ATM
Model Number
Sx-6500
Sensor
5.0 Megapixels 1/4 CMOS
Resolution
2592h*1944
Size
58*27mm
Pixel Size
1.4um *1.4um
Sensitivity
0.49V/Lux-Sec(550nm)
Max Frame Rate
12fps
Lens
M7
Transport Package
Bubble Bag and Standard Exprot Carton
Specification
ISO 9000; CE, FCC, RoHS
Trademark
SHIXIN OR OEM
Origin
China
HS Code
8529904100
Production Capacity
1000PCS/Month
Product Description

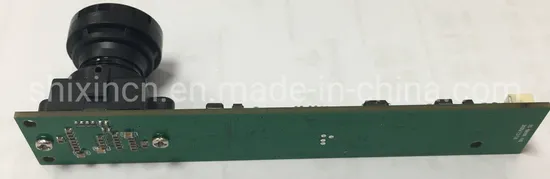

4K HD Camera 8.0Megapixels USB Module Camera (SX-6800H)USB 8.0 Megapixel Camera
IMX415 CMOS Sensor
8.0 megapixel resolution
Resolution: 3840*2160
Frame rate: @25fps (3840*2160)
@25fps (1920*1080)
Pixel size 1.45um X 1.45um
Color balance: Auto White Balance/Auto Exposure/Auto Gain
Dimension: 16mm*90mm
Interface: USB2.0(no need external power)
Software: Capture software, free driver
Application: ATM, Portable scanner, Industry camera, Medical equipment
| Name | USB Camera |
| Product No. | SX-6800H |
| Resolution | 4K (8.0Megapixels) |
| Image Sensor | 1/2.8" CMOS |
| Pixels | 3840*2160 |
| Pixel Size | 1.45μm*1.45μm |
| Compression Format | MJPG/YUY2 |
| Resolution & Frame Rate FOV | 1920*1080 25fps[MJPG] 4fps[YUY2] H: 110 degree, V:73 degree 3840*2160 25fps[MJPG] 1fps[YUY2] H: 110 degree, V:73 degree |
| SN | >=39dB |
| Dynamic Range | >=72dB |
| Illumination | >=0.1LUX at F1.2 |
| Interface | USB2.0 4-Pin 1.5mm |
| Power Consumption | Max. 1.3 W |
| Power Supply | USB5V±5% |
| Lens | 2.1mm |
| Scan Method | Progressive scan |
| Interface Speed | USB2.0/480Mb/s |
| Dimension of PCB | 38*38mm / 90*16mm ±5% |
| Work Temperature | -30~75ºC |
| Storage Temperature&Humidity | -20~70ºC/20%~90%RH |
| Support System | WindowsXP/7/8/10//vista/Server/Linux(include UVC)/Android |
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
