Product Description

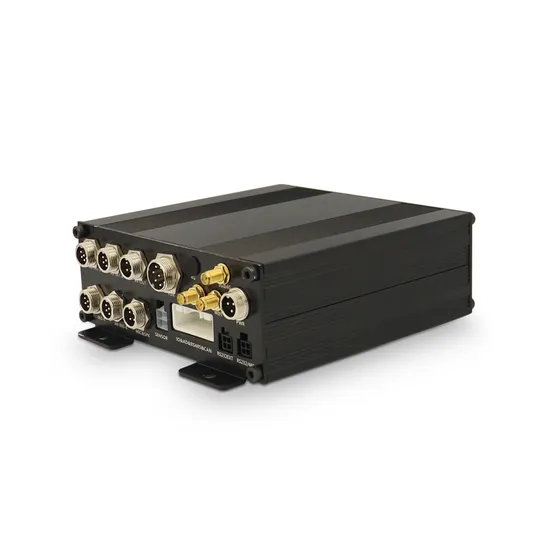

Meitrack 8CH 1080P Dual SD Card Mobile DVR MD822S
Product Overview
Specifications

Dimension	145 mm x 145 mm x 57 mm
Weight	818g
Power input	DC: 9-36 V; rated input: 12V/3A
Power consumption	Start the host audio and video: about 8W Connect 8 cameras: about 24 W in the daytime (a display connected: 29 W); about 32 W at night (a display connected: 37 W) Connect a single camera: 50-100 mA in the daytime; 200-250 mA at night
Operating temperature	-20°C to 70°C
Video input	8-channel 1080P@25FPS live video recording Support the connection of different kinds of cameras (D1/720P/1080P)
Video output	1-channel CVBS + 1-channel VGA
Compression standard	H.264/H.265 (Optional)
Image display	Support one-image and nine-image display
Audio compression	G.726
Audio input	8-channel camera Mic input. The audio funcon is required for the camera. 1-channel handset input, 1-channel 3.5 mm headphone jack input (GSM audio interface)
Audio output	1-channel independent audio DC blocking output (connected to the AV-OUT interface, VGA aviaon connector, or handset interface) , 1-channel 3.5 mm headphone jack output (GSM audio interface)
Recording search and playback	Search and play back videos based on the channel, recording type, or time.
Recording method	Simultaneously record the ACC, alert, sound, and video.
WiFi	802.11 b/g/n; frequency: 2.4 GHz; support AP/STA mode
GPS/GLONASS	Detect the insertion, pull-out, and short circuit of the antenna.
Storage medium	2 SD cards
2G/3G/4G	MD822S-E GSM: B3/B8, WCDMA: B1/B8 LTE FDD: B1/B3/B7/B8/B20/B28A MD822S-A WCDMA: B2/B4/B5, LTE FDD: B2B4/B12 MD822S-AU GSM: B2/B3/B5/B8, WCDMA: B1/B2/B5/B8 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 MD822S-J WCDMA: B1/B6/B8/B19 LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 MD822S-G GSM: B2/B3/B5/B8, WCDMA: B1/B2/B4/B5/B6/B8/B19 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B25/B26/B18/B19/B20/B28 LTE TDD: B38/B39/B40/B41

Accessories

ACCESSORIES	MD822S MDVR
	Power & ACC cable
	I/O cable
	USB cable
	GPS antenna
	3G/4G antenna
	WiFi antenna
	Lock key
	Cameras splitter (1 to 2)
	CD download card
OPTIONAL ACCESSORIES	Cameras (1080P/720P/D1)
	SD card
	VGA display
	CVBS display
	Microphone & speaker
	Ultrasonic fuel level sensor
	RFID reader
	RFID tag
	Camera extension cable
	Handset
	iButton reader
	iButton key
	Temperature sensor
	A61 sensor Box
	A53 fuel level sensor

Application
Certificates: CEMS03 is a professional centralized software that is tailor-designed to support businesses and sustainable platforms, ideal for developers. The MS03 spotlights such features as GPS Tracking, Video Surveillance, and Alarm Systems amongst others.
Company overview
Why choose us
Why Choose US?
Since 2002.20,000m2 state of the art manufacturing facility based in Shenzhen, China.Placed in-house R&D centers in Taiwan, Shenzhen and the United States.Providing OEM&ODM service.Providing software development service.Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.
Manufacturing
Standardized Production ManagementGPS signal generators MP9000 & MP9100 Agilent
GSM/GPRS integrated tester 8960 Reflow soldering,
SMT machine, solder paste printer, AOI tester...
Strict Quality Control
IATF16949:2016 Quality Management System
ISO9001:2015 Quality Management System
Certs: CE, FCC, RoHS,PAHs, etc.
Our Services
1. Strong R&D capabilities, and rich supply chain resources
2. Produce diverse standard products to meet diversified IoT requirements
3. Design and customize products tailored to customers' unique needs.
FAQ
1. Where is Meitrack come from?
We are from Shenzhen, China.
2. What kind of products does Meitrack have?
Meitrack is producing personal, vehicle and assets GPS Tracker, GPS tracking App and Platform.
3. How to contact us?
Please feel free to contact us via email, phone or our social media account.
