AC High Voltage Tester

Product Description

Application
Digital AC Hipot test set (Power frequency withstand voltage test set) adopt numerical control technology, strong anti-jamming capacity. Compared with the last generation control box, it has small size, light weight, fine appearance characters, etc. Its output voltage range is 0~430V continuously adjustable, and it is used for calibrate, detect and test voltage regulate control for equipment. This control unit has simple operation, compact structure, stable function, reliable running, easy maintenance features, and it is the ideal control equipment for outdoor HV test. It can be widely used in electricity, hydraulic engineering, chemical, railway industries and laboratories.

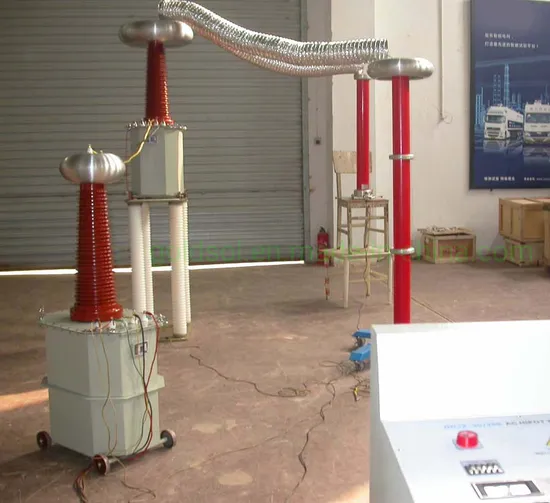

The equipment mainly includes 1 control unit and 2 oil-immersed transformers.
Advantage
-Direct reading: This equipment adopt digital LCD meter which can directly display HV voltage, meter voltage and LV current, HV current (HV current for optional). It is easy for test observation and recording. -Accuracy measurement: Whole digital processing, built-in precise mathematical models, high test accuracy, precision test result. -Exactly protection function: Whole digital processing, over-current protection value setting, voltage setting, and over-voltage protection value setting all adopt digital display which makes the protection more exactly. -Automatically timing: This equipment has the timing function. It automatically measures time according to the set voltage which makes the timing more efficient. -Easy to carry: small size, light weight, the volume is 30%~ 70% the volume of the similar products.

Panel (Controller)
1. Timer: setting test time,;
2. Power switch;
3. Setting over-current protection value;
4. High voltage display value (KV);
5. High-voltage selection switch;
6. Low voltage current value display (A);
7. High voltage output indicator;
8. Alarm indicator: it gives alarm when time is over;
9. Open switch (On);
10. Close switch (Off);
11. Timing switch;
12. Over-current indicator;
13. Over-voltage indicator;
14. "0" postion indicator;
15. "Up/down rgulating voltage handle;
16. Power input;
17. Power Output: Voltage Regulator Output Terminal;
18. Meter input: connecting to the "meter" of transformer;
19. Grounding terminal.
Configuration:

Sr no	Description	Qty
1	30kVA digital control unit	1 unit
2	30kVA/150kVseries exchtation test transformer	1 unit
3	15kVA/150kV test transformer	1 unit
4	150kV insulation support	1 unit
5	300kV equalizing ball	1 unit
6	Connection Cables	1 set

- 30KVA digital control unit
1.Introduction
The digital display control unit adopts advanced digital circuit design and it is an inevitable substitute for the analog control box. Compared with ordinary controller, it has the advantages of rapid protection, accurate measurement, powerful function, small size, light weight and beautiful appearance.
2.Advantage
- All functions of ordinary control included: zero start, over current protection, over voltage protection, sound and light alarm.
- Built-in AC true RMS measurement circuit, with high-precision LCD meter, high measurement accuracy and more intuitive display
- Reliable protection and easier setting compared to ordinary electromagnetic relays
- Automatic timing: automatic timing when the test voltage setting value is reached
- Primary & secodary voltage and current can be directly switched by touch button
3.Specification
Low voltage resolution:0.1A
High voltage resolution:1mA
Meter voltage resolution:0.1V-
Meter HV voltage resolution:0.1kV
Power supply:AC380V±10% 50Hz
Output voltage:AC0~450V continous
Output capacitance:30kVA
Output current:75A
Size:610mm×515mm×820mm
Weight:90kg
- 30kVA/150kV Series Exchtation Test Transformer
1.Introduction
It is used for power system to test various insulation voltages of various high-voltage electrical equipment, electrical components and insulating materials under power frequency or DC high voltage. This series of test transformers has the advantages of small size, light weight, compact structure and strong versatility.
2.Advantage
- One molding for high voltage bushing
- Completely isolated between the casing and the oil drum, and all the connecting parts are sealed with imported oil-resistant O-ring seals, which completely solves the problem of common transformer oil leakage.
- Sleeping iron core design to effectively improve the shock resistance.
- All products are subjected to 24-hour inversion test before leaving the factory to test the problem of oil leakage in the test transformer.
- All products can pass 1.1 times induction withstand voltage test.
- Insulating oil is colorless and transparent Karamay original oil
- High-low pressure wire is made of high-strength polyester and oxygen-free copper bar enameled wire
- The core is made of new WISCO two-silicon cold-rolled silicon steel coil.
3.Technical parameter
Capacitance:30kVA
Input voltage:AC 400V
Output voltage:AC 150kV
Series exchatation voltage:AC 400V
Input current:75A
Output current:200mA
Unload Loss :<10%
Short circuit resistance:<10%
Ratio error:<1%
Meter voltage:100V
Insulation oil dielectric strength:2.5mm,>50kV
Size(mm):650×540×1710
Weight:240Kg
- Test Transformer 15KVA/150KV
Capacitance:15kVA
Input voltage:AC 400
Output voltage:AC 150kV
Input current:37.5A
Output current:100mA
Unload Loss :<10%
Short circuit resistance:<10%
Ratio error:<1%
Meter voltage:100V
Insulation oil dielectric strength:2.5mm,>50kV
Size(mm):630×500×1650
Weight:215Kg
Accessaries

Sr no	Description	Qty
1	Power cable	1 unit
2	Connecting cables (Controller to transformer; Transformer to transformer)	1 set
3	Earth cable	1 unit
4	High voltage Insulation protection shield	2 units
5	Factory's Calibration report	1 unit
6	Operating manual	1 unit

Transport weight and dimension (Wooden case outside)

Sr no.	Name of Commodity & Specification	Qty	Weight (GW/NW)	Demension (CM)
C/NO.1-4	Digital Control unit, 30KVA	1 unit	@113kgs/90kgs	@56*57*106 cm
C/NO.2-4	Exchitation Transformer, 30KVA/150KV	1 unit	@260kgs/240kgs	@47*59*142cm
C/NO.3-4	Test Transformer, 15KVA/150KV	1 unit	@232kgs/215kgs	@60*60*134cm
C/NO.4-4	Insulation Support (150KV)	1 unit	@80kgs/65kgs	@80*50*25cm
Total:		4 units	685kgs/610kgs	1.31m³
