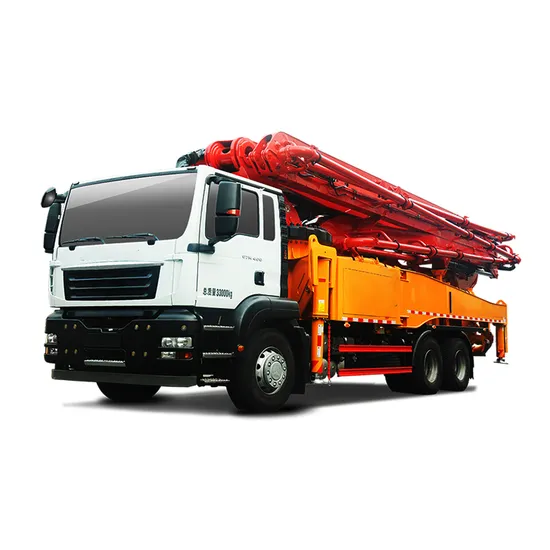

49m Truck Mounted Concrete Pump (SYG5359THBEB 490C-8)

Product Description

49m Truck Mounted Concrete Pump (SYG5359THBEB 490C-8)
Feasures
One-button Technology(for 53m and above TMCP)
One-button fixed boom position function quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
Boom Anti-Vibration Technology(for 53m and above TMCP)
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Energy-saving Technology
When system pressure reaches 12Mpa:No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%.
Anti Overswing Technology
To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%.
Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Parameters

Length Width Height Empty Weight Vertical Reach Horizontal Reach Reach Depth Output Pressure Chassis Brand Chassis Model

12200mm 2500mm 4000mm 35000kg 48.6m 43.6m 30.8m 200 / 137m³/h 8.3 / 12MPa / Actros 3343
