Motor Driven Screw Extruded EPS Foam Compaction Recycling Machine
| US$2,000.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
300/400
Material Processed
Foam
Plastic Type
Polystyrene
Screw
Single-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
QS, GMP, ISO9001:2008, CE
Power
Diesel Engine or Motor
Output Size
300*300 / 400*400
Hopper
Vertical/Horizontal/Tilt
Diesel Engine
1-4 Cylinders
Transport Package
Plywood Box
Specification
300/400
Trademark
Myaid
Origin
China
HS Code
8419899090
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
500.00cm * 200.00cm * 200.00cm
Package Gross Weight
1300.000kg
Product Description

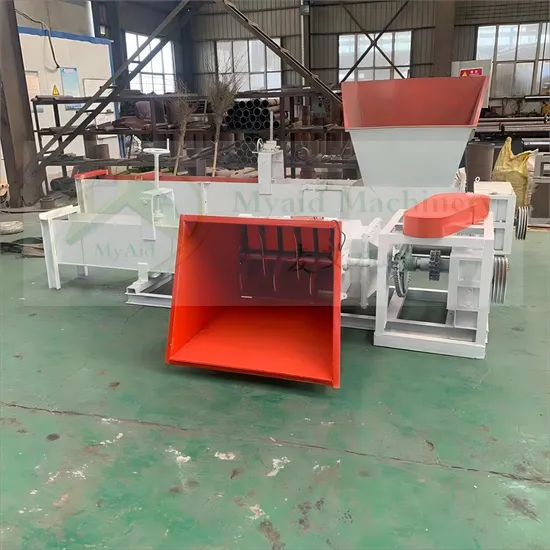

Introducing the cutting-edge EPS Compaction Machine.This innovative EPS Compaction Machine efficiently shreds and compacts large, lightweight EPS polystyrene foam materials into high-density, small-size briquettes. Transporting loose foam materials is costly due to their voluminous nature, as 95% of polystyrene beads are air. Compacting them not only saves space but also reduces transportation expenses significantly.
Our versatile EPS Compaction Machine offers two power system options: it can be driven by an electric motor or powered by a diesel engine, ensuring flexibility and adaptability to various operational environments.
Imagine the convenience of seeing foam waste scattered in small volumes everywhere; with our compactor mounted on a truck, it can be driven to different locations to efficiently collect and compact foam waste on-site, promoting eco-friendly practices and operational efficiency.
Machine Application
Machine Advantage
Machine Parameter
| Model No. | 300E | 300H | 300V | 400H | 400V |
| Brick Size | 300*300mm | 300*300mm | 300*300mm | 400*400mm | 400*400mm |
| Capacity | 150kg/h | 150kg/h | 175kg/h | 250kg/h | 300kg/h |
| Diesel Engine | Single cylinder | Single cylinder | Single cylinder | Four cylinders | Four cylinders |
| 18kw | 22kw | 22kw | 48kw | 48kw | |
| L25 | L32 | L32 | 4102 | 4102 | |
| Turn on automatically by battery power or manually by rocker | |||||
| Hopper Size | 830*760mm | 830*760mm | 1100*800mm | 1200*1000mm | 1200*1000mm |
| Machine Size | 3000*1500*1200 | 3000*1700*1200 | 3000*1700*1400 | 4600*1600*1600 | 4600*2800*1400 |
| Machine Weight | 1000 | 1050 | 1050 | 1600 | 1600 |
| Motor Power - optional | 11kw | 11kw | 15kw | 15kw | 22kw |
Principle
