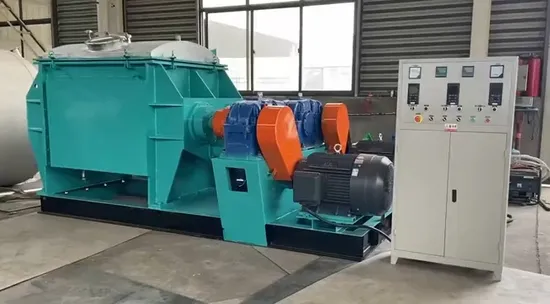

Customized Double Sigma Mixer for Making Shield Tail Sealing Grease (2500L)

Product Description

Shield tail sealing grease is a uniform paste made with grease as the main agent and adding fibers, tackifiers, fillers and other additives. It mainly plays a role of sealing, waterproofing, lubricating and anti-corrosion. Shield tail sealing grease is divided into two types: hand-coated grease and pumped grease. Hand-coated grease is used in the initial launch, and pumped grease is used in the propulsion process.
How to use a kneader to produce shield tail sealing grease?
1). Tail shield sealing grease composition: hydraulic oil, extreme pressure lithium-based grease, ester fiber, polyacrylamide, calcium carbonate, thickener. The total weight ratio of each component is: hydraulic oil 60%, extreme pressure lithium grease 10%, ester fiber 1%, polyacrylamide 1%, calcium carbonate 25%, thickener 3%.
2). Add hydraulic oil, extreme pressure lithium grease and thickener into the double sigma mixer according to the above weight ratio, heat to 80ºC-90ºC, stir for 1~2 hours, then add polyester fiber, calcium carbonate and polypropylene Put the amide into the double sigma mixer, continue to heat to 80°C-90°C, stir for 1 to 2 hours, and cool down at room temperature.
1.Why do you need a double sigma kneader?
Usually speaking,we mostly use the followed types of mixers: V type mixer,ribbon mixer, coulter mixer, paddle mixer, double screw mixer, double sigma kneader, planetary mixer, etc. But only kneader and planetary mixer are suitable for high-viscosity materials mixing. Compared with planetary mixer,the kneader has a wider range of application to the viscosity of the material, but the material remaining and cleaning may not be as thorough as the planetary mixer. When customers have more colors or varieties,he should try to choose planetary mixers.
2. Why is the kneader suitable for mixing high-viscosity materials?
(1). Special mixing blades: special structure, heavier weight, larger contact area with materials, moving towards each other.
The kneader has two strong stirring blades (usually sigma type/z type), and the inside of the sigma blade is usually cast steel ZG310 cast into a model, and then a stainless steel plate is pasted and welded to avoid corrosion. The two sigma blades move towards each other at different speeds, usually 36/25.
In short,the kneader uses a pair of mutually cooperating and rotating blades to produce a strong shearing action to make the semi-dry or rubbery or adhesive-like viscous material stretch and squeeze quickly to obtain uniform mixing and stirring.
(2). Large motor power: power from 1.5KW to 300KW or even greater.
Compared with other types of mixers, the stirring paddle is extremely heavy, so the driving motor of the kneader is more powerful. Due to the large contact area between the two stirring paddles and the material and the large resistance during movement, the motor power is usually increased or soft start is used.
3. Types:
1). Heating method: direct electric heating, electric heating with heat transfer oil, steam heating, heating with circulating heat transfer oil, etc.
2). Discharging methods include: hydraulic tilting cylinder dumping, ball valve discharging, screw extrusion, side screw discharging, bottom flap discharging, etc.
3). Other auxiliary functions: vacuum kneader, pressure kneader, heating and cooling type, explosion-proof type, etc.
4.Applications:
It is widely used in high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, pulp, cellulose, and also used in batteries, inks, pigments, dyes, medicines, resins, plastics, carbon, electrode pastes , Electrodes, rubber, cosmetics and other industries.
5. Kneader structure:
According to the number of motors required by the motor stirring blade, it can be divided into single-drive kneader and double-drive kneader.
The main structure of the kneader is composed of a drive system, a kneading system, a heating/cooling system, a support system, a hydraulic system, a vacuum system, and an electronic control system.
6.Technical parameters: (only medium and low viscosity materials as an example, the motor power of high viscosity materials needs to be recalculated)

Model	Volume		Drive(KW)	Discharging	Heating
	Full(L)	Effective(L)
DSM-2	2	1.2	1.1	Manual tilting	Steam	Electric
DSM-5	5	3	1.5-2.2	Manual tilting	Steam	Electric
DSM-10	10	6.5	2.2-3	Manual tilting	Steam	Electric
DSM-50	50	33	5.5-7.5	Tilting,Screw extruder	Steam	Electric
DSM-150	150	100	7.5-11	Tilting,Screw extruder	Steam	Electric
DSM-200	200	130	11-18.5	Tilting,Screw extruder	Steam	Electric
DSM-300	300	180	18.5-22	Tilting,Screw extruder	Steam	Electric
DSM-500	500	330	22-30	Tilting,Screw extruder	Steam	Electric
DSM-1000	1000	650	37-110	Tilting,Screw extruder	Steam	Electric
DSM-1500	1500	920	37-110	Tilting,Screw extruder	Steam	Electric
DSM-2000	2000	1250	55-160	Tilting,Screw extruder	Steam	Electric
DSM-3000	3000	1950	75-220	Screw extruder	Steam	Electric
DSM-4000	4000	2500	90-	Screw extruder	Steam	Electric
DSM-5000	5000	3300	110-	Screw extruder	Steam	Electric
