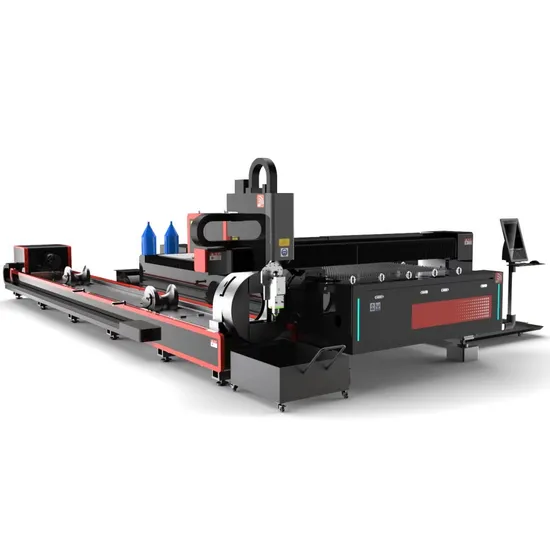

1kw~6kw CNC Sheet Metal Fiber Laser Cutting Machines Raycus Max Laser with Auto Focus Head Cutter

Product Description

Laser-Hot Selling 1kw 2kw 500W 1000W 2000W 3000 Watt 1530 3015 Ipg/Raycus CNC Metal /Stainless Steel/Carbon Plate Fiber Laser Cutter Cutting Machines
Product Description
steel laser cutting machine
High precision: suitable for cutting precision accessories and fine cutting of various craft words and paintings. 2. Fast speed: more than 100 times that of wire cutting. 3. The heat-affected zone is small, and it is not easy to deform. The slit is smooth and beautiful, no post-processing is required. High Matching Fiber Laser Cutting Machine
High speed cutting for moderately thin sheet and widely used in fields of light-fixture,kitchen ware,stainless steel decorative materials,case and cabinet etc.
FEATURES 1.Ultra-fast cutting function. 2.Equipped with a quick automatic interchange able units to improve work efficiency. 3.The optic path of laser fiber travel is simple and free of maintenance. 4.The advanced dual drive cutting planer system is adopted, which guarantees its highprecision and high dynamic perfomance. 5.Equipped with anti-laser radiation protection,pollution reduction, strong protection, high safety performance. 6.The X axis and Y axis adopt imported helical gear rack with a better meshing and stable driving.Therefore the acceleration is sped up. Detailed Photos
Auto Focus Laser Cutting Head .Fiber laser cutting head * Available with and without capacitive height sensing * Temperature sensors protect optics and minimize the chance of overheating * 10mm of les movement to set focus Quick and easy access to the cover glass * Flexible design to otimize spot size * Smooth assist gas flow * Compact,lightweight design
·A laser head with an autofocus function that automatically adjusts focus without the need for manual adjustment. The software can automatically change the focusing lens according to the different thickness of the material. Simple, convenient and fast.
Laser Sources Multimode continuous fiber laser

·We use Raycus, JPT, IPG, MAX, or other laser sources that we support based on customer needs. 1. High electro-optical conversion efficiency, flat-top distribution of spot energy and high energy density. 2. Reduce weldingspatter and make the cutting ability of thick plate more stable. 3. Good cutting effect, can be cut thicker plate, sheet cutting efficiency is higher. 4. Modular design, highly integrated system, stable operation, fewer failures. 5. Compatible with welding and cutting, applied in hardware, medical, automobile, shipping, aviation, construction machinery and other fields.
A new generation of single-mode continuous laser resonator
1. The product integrates high power, light volume, humanized control, high beam quality and highlight conversion efficiency. 2.For quick cutting of carbon steel, stainless steel, brass, aluminum thick plate materials. 3. High laser cutting frequency and high finish of cutting surface. 4. Can meet the requirements of precision processing, 3C product welding, high reflex material cutting. Product Parameters

Performance index	parameters
Bed form	Pipe welding
Beam form	Steel beam
Processing range	3000mmx1500mm
X-axis	1520mm
Y-axis	3050mm
Z-axis	100mm
Positioning accuracy	±0.05mm/m
Repeated positioning accuracy	±0.03mm
Maximum positioning speed	75m/min
Maximum acceleration	0.8g(~2000w)
	1g(3000w)
Machine weight	1.4t
Maximum load of working platform	700kg
Overall dimensions of equipment	4200mm*2300mm*1600mm

Cutting samples
Sample Display Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium, and other metal plates and pipes.
FAQ
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q:How can I do if the machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We willresponse within 24 hours as quick as we can to solve it for you. Q: Are you factory or trading company?A: We are a factory with many experience. Q: What's your MOQ? A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.Q: How do your factory do regarding quality control? A: Quality is priority. Each laser machine will be tested by 24 items. After all the 24 items passed, then our QC do48~72 hours reliability test. Our laser machines has gained CE.
