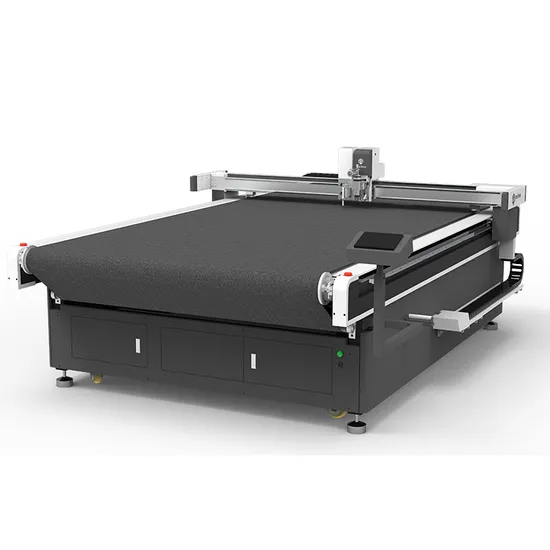

Cutter Cutting Machine for Cutting Leather Cloth or Fabric Jeans Fabric Cutting Machine Price
| US$12,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YC-1625A
Power Source
Electric
Automatic Grade
Automatic
Warranty
3 years
Certification
CE, ISO
Name
Oscillating Knife Cutting Machine
Model
Yc-1625AC
Max. Cutting Speed
1200mm/S
No-Load Speed
1500mm/S
Multifunctional Head Cutting Tools
Oscillating Knife, Driven Rotary Cuttting Tool
Cutting Thickness
0.1-20mm
Cutting Accuracy
0.1mm
Transmission Interface
Ethernet
Motor
Panasonic Servo Motor
Transmission System
Smtycc Linear Rail and Rack
Fixed Mode
Vacuum Absorb
Rated Power
11kw or Others
Feature
New Product
Safety Device
Infrared Blocking Device, etc
Cutting Materials
Fabric, Leather, PVC and Other Flexible Materials
Transport Package
Wooden Cases.
Specification
2500*1600mm
Trademark
YUCHEN
Origin
Shandong Jinan
Production Capacity
50 Sets/Month
Product Description
Yuchen focus on the research and development of CNC fabric cutting machine more than 10 years,widely popular because of its long service life, complete functions, and simple operationBrand: Yuchon
Model: YC-1625A (size can be customized)
Work Size: 1600*2500mm
Applicable cutting materials: knitted material,fur, PU leather, jean,canvas,artificial leather,blend fabrics,Cotton & Linen, etc
Functions: cutting, drawing and punching.
cutting tool: driven Rotary cutting tool
Product Parameters
| Model | YC-1625L YC-1625A | YC-1630L YC-1630A | YC-1830L YC-1830A | Other sizes are customizable |
| Working area | 2500×1600mm | 3000×1600mm | 3000×1800mm | |
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime | |||
| Safety device | Infrared blocking device,Emergency stop button switch, Intelligent anti-collision device. sensitive response; safe and reliable | |||
| Max. cutting speed | 1200mm/s | |||
| No-load speed | 1500mm/s | |||
| Multifunctional head cutting tools | Oscillating knife cutting tool, Driven rotary cutting tool,Pneumatic cutting tool, Milling tool, Kiss cutting tool,V-cutting tool, Creasing wheel, Punching tool, Drawing pen etc. | |||
| Cutting thickness | 0.1-20mm ; 0.1-60mm0.1-20mm (subject to material) ; 0.1-60mm(Optional) | |||
| Cutting accuracy | ±0.1mm | |||
| Transmission interface | Ethernet | |||
| Transmission system | Panasonic Servo Motor/SMTYCC Linear rail and rack | |||
| Fixed mode | Vacuum absorb | |||
| Supply voltage | AC 220V 380V±10%,50HZ | |||
| Rated power | 11KW or others | |||
After Sales Service
FAQ
1.payment terms:
L/C,Western Union,T/T,Paypal
2.Delivery time:
Standard machine:7-15 days
Customized machine:10-25 days
3.Packing:
plastic film inside and plywood case for outside packing
4.Transportation fee
Ship by sea or airplane, railway. Actual cost reimbursement
5.instal
We offer video teaching,and we have professional technicians who will help you to install, guide and train
6.After sales service
1).3 year free warranty
2).Life time free maintenance service.
3).24 hours online service, free technical support with different languages.
4).Door to door technical support when needed
