Fire Fighting Sprinkler System Flange Type Wet Alarm Check Valve

Fire Fighting Sprinkler System Flange Type Wet Alarm Check Valve

US$300.00-400.00 1 Piece (MOQ)

Basic Info.

Model NO.
WAV1 4"
Alarm Valve Type
Wet Alarm Valve
Automatically Opened and Closed Repeatedly
Can′t Automatically Opened and Closed
Open Fire Sprinkler System Type
Water Spray System
Closed Fire Sprinkler System
Wet Fire Sprinkler System
Dry Alarm Valve Type
Na
Wet Alarm Valve Structure
Seat Type
Alarm Valve Diameter
100mm
Nozzle Flow Coefficient
Na
Deluge Valve Type
Diaphragm Type
Material
Carbon Steel
Certificate
FM
Certificate Brand
Waterwise
Flange Size
4" or 6"
Flange Tyoe
ANSI, Not Customized
MOQ
1
Transport Package
Wooden Case
Specification
20KG
Trademark
SXFIREPRO
Origin
China
HS Code
8424200000
Production Capacity
50000/Year

Product Description

Product Description Durable 4" Alarm Check Valve is a wet alarm check valve applied in wer pipe sprinkler system. The main function of this valve is to make it possible that the installation of sprinkler systems in buildings not subject to freezing temperatures. With our R&D team's effort, this valve gets approved by domestic and oversea customers.
Plent 4" Alarm Check Valve s available with a flanged inlet and flanged outlet. Please be noted that the flange type only support ANSI type. For more info. please refer to below tech data chart
Our Advantages
STANDARD TRIM PACKAGES, including:
1. All necessary nipples and fittings
2. All standard trim accessories
3. All necessary gauges
Product Parameters
Product Plent 4" Alarm Check Valve
Model# WAV1 4"
Inlet Connection ANSI Flange
Outlet Connection ANSI Flange
Shipping Weight 55lbs /25kg
Max Working Prssure 175 PSI / 1.2 Mpa (12 bar)
Factory Hydro Test %100 @ 350 PSI / 2.4 Mpa (24 bar)
Standard Finish Red Painting
Flange Specification Flange: Class 150 ANSI B16.1
Required Accessories Standard Trim
Optional Accessories Retard Chamber, Water Motor Alarm, Alarm Pressure Switch
Installation Manner Vertically
Certificate FM

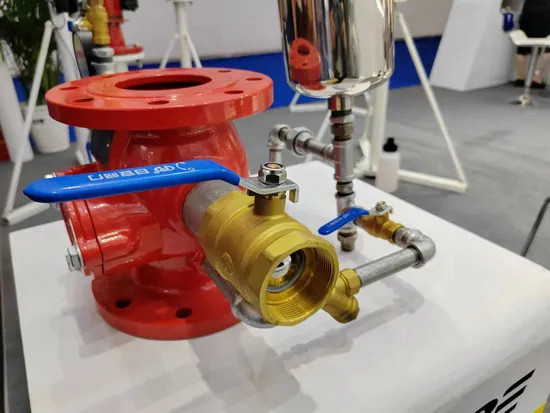

Detailed Photos
Machining, Warehouse and Testing Building:
Fire fighting Exhibition in Beijing
Our Company Since the company was founded in 1996, SXFIREPRO has evolved and grown from a small factory in the yard with the limited capacity to only make couplings, to a sophisticated and leading factory, that now spans over 35000 square meters and employs over 60 skilled engineers, craftsmen, and mechanics - a figure that continues to grow. As one of the family-owned fire equipment manufacturers in China, SXFIREPRO continues to instill the tradition of product excellence, acute customer care, and superior service.
Over the past few years, SXFIREPRO has pushed and expanded its product line to fire monitors, fire nozzles, bladder foam tanks,foam concentrate,fire robots, etc., Unlike most fire equipment manufacturers, sxfirepro also delivers on the meaning of custom-crafted appatatus. Working side-by-side with each customer, sxfirepro will construct your vehicle based on your specific department's needs, The Shengxin team - from the best engineers and draftsmen to highly skilled mechanics and craftsmen will always give you a surprise on the quality. An sxfirepro product is as unique as our customers.
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if the cost is below USD20 with freight on your cost.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. Or it is 15 days if the goods are not in stock, it is according to quantity.
Q. what is your payment term?
A: T/T 30% payment in advance, balance to be paid prior shipment.
Q: what is your main market?
A: ,Western Europe,North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia.
Q: Can I have my own customized product?
A: Yes, we can supply logo Print and package desiged based in our MOQ.
