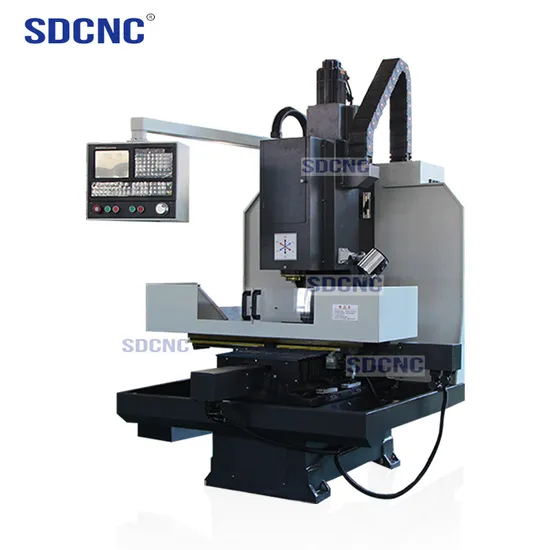

Xk7125 CNC Vertical Automated Milling Machine with Siemens Controller
| US$22,000.00-23,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XK7125
Object
Gear
Structure
Lifts
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Worktable Size
1270*254mm
Three Axis Travel (X/Y/Z)
700*380*450mm
Main Motor
2.2kw
Stroke of Spindle Quill
127mm
Transport Package
Wood Packaging
Specification
2000*900*2350
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2000.00cm * 900.00cm * 2350.00cm
Package Gross Weight
1700.000kg
Product Description
The vertical machining center can be applied to many fields such as mechanical processing and mould
manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high
precision, high efficiency, is widely used in aerospace, mould, automobile, internal combustion engines, textile
machinery, chemical machinery processing, oil, electronics and other industries.
Product Parameters
| Specification | Unit | XK7125A |
| Worktable size | mm | 1270*254 |
| T-slot | mm | 3/16/65 |
| Three axis travel (X/Y/Z) | mm | 700*380*450 |
| The distance from spindle nose to worktable | mm | 60-510 |
| Z axis torque | N.m | 7 |
| X axis torque | N.m | 6 |
| Y axis torque | N.m | 6 |
| Spindle taper | | ISO40 |
| X axis fast feeding | M/min | 6 |
| Y axis fast feeding | M/min | 6 |
| Z axis fast feeding | M/min | 0.4 |
| Stroke of spindle quill | mm | 127 |
| Spindle feeding automatical | Mm/rev | 0-400 |
| Spindle speed range | R/min | 65-4500(16 steps speeds ) |
| Positioning accuracy | mm | 0.02 |
| Repeat positioning accuracy | mm | 0.01 |
| Main motor | Hp | 3(2.2 KW ) |
| Machine size | mm | 2000*900*2350 |
| Machine net weight | Kg | 1700 |
Standard Accessories:
1.Draw bar
2.Tool box and tools
3. Woeking lamp
4.Elector lubricating pump
5.Hung up control panel
6.Cooling system
7.Oil collecting plate
8.Plastic splashing guard
Optional Accessories:
1.Air draw bar
2.Machine vise
3.Universal clamping kits
