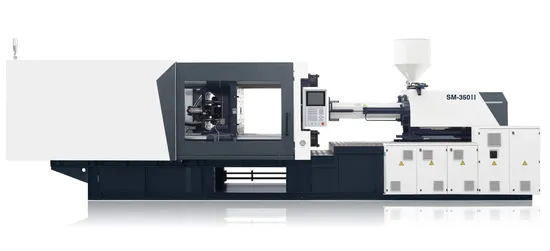

SM-350T Energy Saving Servo Injection Molding Machine
| US$39,800.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SM-350T
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
500/Y
Product Description
Platen Drawings:Parameters:
| SPECIFICATION | SM-350 | |||
| SCREW TYPE | A | B | C | |
| Injection Unit | ||||
| Screw diameter | mm | 65 | 70 | 75 |
| Screw L/D ratio | L/D | 22.6 | 21 | 19.6 |
| Shot volume(theoretical) | CM3 | 1161 | 1346 | 1545 |
| Injection weight(PS) | g | 1056 | 1225 | 1406 |
| Injection rate | g/s | 299 | 346 | 398 |
| Injection pressure | Bar | 2028 | 1748 | 1523 |
| Screw speed | rpm | 190 | ||
| Clamping Unit | ||||
| Clamping force | KN | 3500 | ||
| Open stroke | mm | 675 | ||
| Space between tie-bars(W*H) | mm | 730*680 | ||
| Max mould height | mm | 750 | ||
| Min mould height | mm | 280 | ||
| Ejector stroke | mm | 180 | ||
| Ejector force | KN | 90 | ||
| Others | ||||
| Max pump pressure | Bar | 16 | ||
| Motor pump power | Kw | 39.4 | ||
| Heating power | Kw | 23.2 | ||
| Machine dimension(L*W*H) | M | 7.35*1.88*2 | ||
| Oil tank cubage | L | 500 | ||
| Machine weight | Ton | 12.7 | ||
Configuration List:
| Items | Brand/country | |
| Servo System | Controller | TECHMATION -8' (TAIWAN ) |
| Servo Motor | INOVANCE (CHINA) | |
| Servo Drive | INOVANCE (CHINA) | |
| Oil Pump | ECKERLE (Germany) or SUMITOMO (JAPAN ) | |
| Electric Unit | Stroke transducer | NOVO or FLTCH (Germany) |
| Breaker | Schneider (France ) or LS (Korea ) | |
| Contactor | Schneider (France ) or LS (Korea ) | |
| Air Switch | Schneider (France ) | |
| Location /Speed Sensor | Schneider (France ) | |
| Hydraulic Unit | Hydraulic Direction Valve | YUKEN (Japan) |
| Proportion back-pressure valve | North man (Taiwan) | |
| Plasticizing hydraulic Motor | DAN DUN (ITALY) | |
| Hydraulic Hose | MANULI(ITALY) or GOOD YEAR (USA) | |
| Hydraulic Sealing ring | All Italy and Japan | |
| Others Unit | Mechanical safety | Standard |
| Electric safety | Standard | |
| Mold close fast | Standard | |
| Injection Unit | Linear guide-way | |
| Air core | 1pcs | |
| Hydraulic Core | 1pcs | |
| T slots and screw holes | Standard | |
| Servo system Compared with the other manufacturers is big, Overload ability strong and stable. | ||
