Stressing Jack Post Tensioning Hydraulic Mono Jack for Sale

Product Description

Product Description

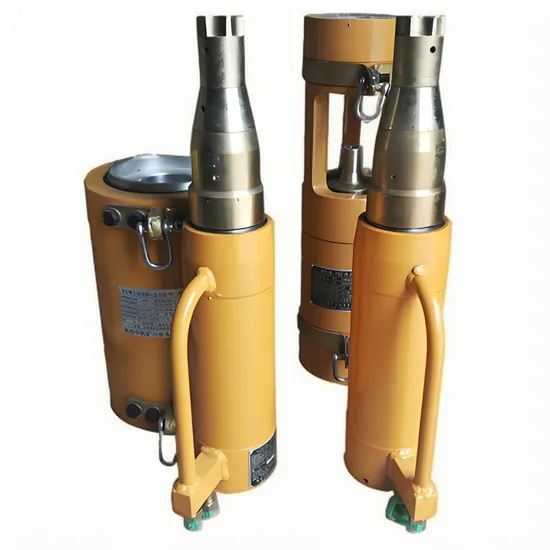

Prestressing Mono jack
Prestressing jack is one of the indispensable and important tools in the tension anchorage construction of Prestressing bridge project. Prestressing jack structure, structure size and tension tonnage limit its range of use.
Prestressing Mono jack is a kind of multi-purpose prestressed tension equipment. Prestressing Mono jack is mainly used for single-hole tensioning, and can also be used for porous prestressing, tensioning and drainage. Prestressing Mono jack is suitable for a variety of specifications and sizes of high-strength steel wire and steel strand.
Prestressing Mono jack is suitable for stressing single hole tension, group anchor by root tension, troubleshooting, withdrawing anchor and filling tension. As far as the Prestressing strand wire strength is concerned, it can stretch the following 2000 grade Φ15.24 steel wire, Φ12.7 steel wire.
Prestressing Mono jack is small, light weight and high efficiency. It is important to note that the reserved length of the kilo-card strand is short (about 260mm). It is especially suitable for high altitude or small space location.
Prestressing Mono jack is used with double circuit oil pump 63Mpa and above.
Product Parameters

Item	Value
Nominal tension	257KN
Nominal oil pressure	50 MPA
Tension piston area	5.137*10 M2
Return piston area	1.335*10 M2
Piercing hole diameter	19 MM
Trolley trip	200 MM
Dimensions	180*568 MM
Return oil pressure	Less than or equal to 25 MPA

Product structure
1.Prestressing Mono jack tensioning cylinder and return cylinder both adopt double seal to improve seal reliability. Prestressing Mono jacks are sealed with Grey-ring or Sterring for reliable sealing.
2.Prestressing Mono jack two cylinders and piston head are designed as a whole, avoiding the possibility of failure due to two-body welding or two-body connection with threads.
3.Prestressing the improved design of Mono jack wear-resistant ring and wear-resistant sleeve can avoid the possibility of the assembly type being forced out and improve product reliability.

Applications
Prestressing Mono jack has compact structure, stable working during tension, high oil pressure and large tension. Prestressing Mono jack is used in highway Bridges, railway Bridges, hydropower DAMS, high-rise buildings and other prestressing construction projects.
Company Profile
haanxi Saifusite Mechanical Electrical Equipment Co., is a professional company which engaged in researching, developing, manufacturing hydraulic mining equipment, hydraulic construction machinery equipment, ultra-high pressure pumping station, cylinder and other mine equipment.Since the company since its inception, has been in line with the concept of quality first, reputation first, with high quality and thoughtful service return customers and society.

Packaging & Shipping
FAQ
Q1: Warranty terms of your machine?A1: One-year warranty for the machine and technical support according to your needs.Q2: Will you provide some spare parts for the machines?A2: Yes, of course.Q3: What about the voltage of products? Can they be customized?A3: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your equipment. Q4: Which payment term can you accept?A4: 100% T/T( Decide according to actual situation)Q5: How long will it take to arrange production?A5: we can deliver the normal goods within 3-5 working days. Other nonstandard electrical items we will deliver within 25-30 days. Q6: Can you accept OEM orders?A6: Yes, with a professional design team, OEM orders are highly welcome. Q7: Which trade term can you accept?A7: Available trade terms: FOB, CIF, CFR, EXW, etc.
