Split Heat Pipe Solar Collector System with Solar Keymark Certification

Product Description

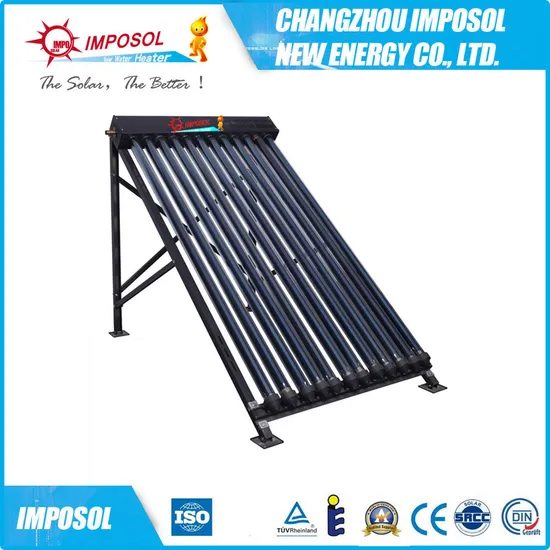

Heat Pipe (14mm) Vacuum Tube 58-1800mm Pressure Solar Collector
Main specifications :
Inner manifold: Copper header pipe , Potable water rated.Maximum pressure: 1000kPa, Size 35mm x 1mm thickness
Outer manifold: Aluminium alloy with Anodized or Powder Coated Finish , thickness 2mm
80mm distance between vacuum tubes
Insulation: High quality Glass Wool (K = 0.043W/mK), 50mm
Vacuum tube: Borosilicate 3.3 twin wall glass 58x1800mm, AlN/AIN-SS/CU coating coating,Vacuum: P<5x10-3 Pa, 58mm x 1800mm
Heat pipe: High purity "oxygen free" copper pipe with Aluminum fin ,Startup temperature -45 C ;
14mm diameter*55mm length condenser , 1mm thickness; 8mm diameter*1650 mm length Body,0.6 mm thickness
Frame: 6005-T5 Aluminium Alloy 2.5mm thickness
Stainless steel SUS 304 bolts
Rubber Components :HTV Silicone Rubber (UV stabilised)
Connection Options:22mm OD copper (Europe)
Optional accessories :
Reflector:aluminum component

Model	Light Area(m2)	Vacuum Tube			Capacity (Liters)	20GP/40HQ Loading Qty
		Ø(mm)	L(mm)	NO .
IPRB B 581810	1.68	58	1800	10	85-100	174/423
IPRB B 581812	2.17	58	1800	12	100-120	153/372
IPRB B 581815	2.65	58	1800	15	125-150	128/311
IPRB B 581818	3.12	58	1800	18	150-180	102/251
IPRB B 581820	3.44	58	1800	20	170-200	95/230
IPRB B 581824	4.08	58	1800	24	200-240	82/200
IPRB B 581825	4.24	58	1800	25	210-250	79/192
IPRB B 581830	4.89	58	1800	30	250-300	67/163

Production process
Changzhou Imposol New Energy Co., Ltd. is top ten in China for exportation. With more and more customers from Europe, Australia, Africa and Asia joinning us.
With products' high performance and reasonable price backing us, With products'quality and company's credit supporting us, We believe that we are turning the world greener day by day-together!
As an OEM factory in China, We specialize in manufacturing various types of solar water heater, solar collectors and vacuum tubes. Our product range include; Compact and split, low pressure and high pressure vacuum tube solar water heater; Thermosyphon; Heat pipe, Upipe and SCHMV tube solar collector; Flat plate solar water heater and solar collector.
We have also designed and carried out some wonderful solar water projects for hospitals, schools, factories and familieS as well as our own design for new products.

Solar Collector Specifications	Lighting area ()	Size	Capacity (L)
IPB-1.5/diemeter47-12 tube	1.15	1730*870*25	80
IPB-1.5/diemeter47-14 tube	1.35	1730*1000*25	100
IPB-1.5/diemeter47-16 tube	1.9	1730*1300*25	120
IPB-1.5/diemeter47-20 tube	2.1	1730*1390*25	150
IPB-1.8/diemeter58-12 tube	1.3	2030*785*25	80
IPB-1.8/diemeter58-14 tube	1.5	2030*935*25	100
IPB-1.8/diemeter58-16 tube	1.76	2030*1085*25	120
IPB-1.8/diemeter58-20 tube	2.3	2030*1385*25	150

Why Choose Us?
1. Our Product is economic and environmental;
2. Our Product is durable and has a long service life;
3. We have rich production experience. The quality of Product is reliable;
4. We have a perfect production process and strict quality control system;
5. We have perfect service system and will give you the best service.
6. Professional Production Line
