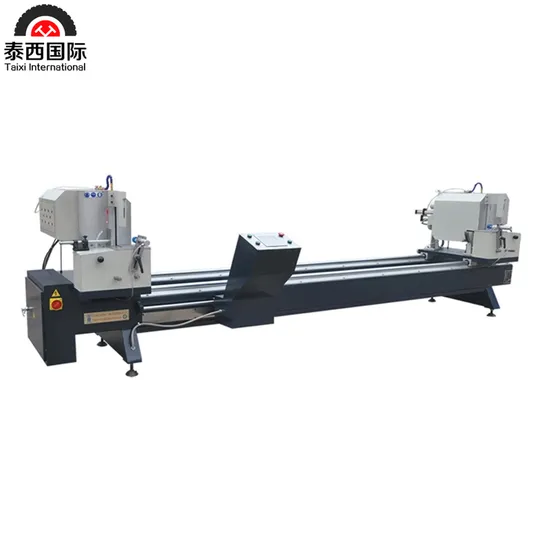

CNC Double Head Precision PVC Cutter Saw 500*4200 Aluminum Profile Cutting Machine

Product Description

CNC Double Head Precision Cutting Saw

CNC Double head Precision Cutting Saw LJZ2-CNC-500×4200

Product Details
Features:
Large processing range, used for cutting aluminum profiles and curtain wall profiles.
High processing efficiency, suitable for large-scale production.
Complete safety protection settings.
With CNC design, it can realize automatic cut-to-length blanking for profiles of different specifications.
The fuselage adopts advanced steel structure design, after aging treatment, to ensure that the fuselage has good rigidity and is not easy to deform.
High-quality imported aluminum special carbide saw blade to ensure accurate cutting performance.
The high precision of the main shaft ensures stable rotation of the saw blade and effectively improves the surface quality of the cutting surface of the profile.
Saw blade feed adopts gas-liquid damping cylinder to ensure uniform feed and stable movement.
The feed mechanism adopts imported flat guide rails, linear bearing motion pair, high motion precision and accurate positioning.
The machine head automatically rotates, two-way positioning, clamping, accurate and stable.
The sealing is good when sawing, which can effectively prevent the sawdust from escaping.
The two saw heads can realize the angle conversion between 45°and 90°.

Technical Parameters:
Power Supply: 380V 50Hz
Motor Power: 2×2.2+0.7KW
Speed: 3850r/min
Air Pressure: 0.5-0.8Mpa
Air Consumption: 200L/min
Saw Blade Specifications: Φ500×4.4×Φ30 Z=120
Feed Speed: 0-3m/min
Cutting Length: max 4200mm min 400mm
Cutting Width: Max135mm
Cutting Height: max 200mm 45° max 300mm 90°
Overall Dimension: 5500mm×1550mm×1900mm
Digital Double-head Cutting Saw LJZ2S-500×4200

This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry,it is also suitable for processing milling, chamfering and other procedure.
Product Description:
Using advanced industrial CNC systems, friendly machine interface and operation is simple;
Suitable for aluminum, aluminum / wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing;
In one clamping profiles complete milling, drilling, chamfering, grooving and other multi-functional precision machining;
Made of high strength welding structure, after heat aging after annealing processing guarantee high rigidity and high stability;
Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision;
High-quality imported automatic tool change for high speed motorized spindle ensure stability, stability of rotation noise, cutting ability;
Technical Parameter:
Power Supply: 380V 50Hz
Motor Power: 2×2.2KW
Speed: 3850r/min
Air Pressure: 0.5-0.8Mpa
Air Consumption: 200L/min
Saw Blade Specifications: Φ500×4.4×Φ30 Z=120
Cutting Length: max 4200mm min 400mm
Cutting Width: Max135mm
Cutting Height: max 200mm 45° max 300mm 90°
Cutting Angle: 45°, 90°
Overall Dimension: 5700×1500×1700mm Double head Precision Cutting Saw LJZ2-500×4200A
Product Details
Features:
Used for not only aluminum profile and curtain wall profile cutting, but also corner connector cutting.
Feeding system adopts imported linear guide pair, with high accuracy and long service life.
Two saw heads can automatically adjust the angle, 45° and 90° (22.5°) cutting is available.
Imported carbide saw blade give accurate processing and high endurance.
Imported linear bearing motion pair ensured steady processing accuracy.
Saw blade rotate smoothly due to high accuracy main spindle.
Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
Auto-opening guard shield ensured safety operation.
Technical Parameters:
Power supply: 380V 50Hz
Motor power: 2×2.2KW
Speed: 3850r/min
Air pressure: 0.5-0.8Mpa
Air consumption: 200L/min
Saw blade specifications: Φ500×4.4×Φ30 Z=120
Cutting length: max 4200mm min 400mm
Cutting width: Max135mm
Cutting height: max 200mm 45° max 300mm 90°
Cutting angle: 45°, 90°
Overall Dimension: 5700×1500×1700mm Double head Heavy-duty Cutting Saw LJG-500
Product Details
Features:
Mainly used for aluminum alloy profiles, and also used for cutting plastic profiles.
Adopts the hard quality alloy saw blade, the outside diameter can reach 20", the linear speed is high, the accuracy of processing is high.
When it works, two saw blades can cut profiles simultaneously or separately.
The saw blade can tilting to required angle between 90°and 45° .
The machine tool can equipped with digital display device, so it is more suitable for cutting aluminum alloy profiles.
Technical Parameters:
Power supply: 380V 50Hz
Motor power: 2×2.2KW
Speed: 2840r/min
Air pressure: 0.5-0.8Mpa
Air consumption: 200L/min
Saw blade specifications: Φ500×4.4×Φ30 Z=120
Cutting length: max4500mm min480mm
Cutting width: max 230mm 45° max 250mm 90°
Cutting height: max 150mm 45° max 135mm 90°
Cutting angle: 45°, 90°
Overall Dimension: 5700×1300×1360mm

Double-head Cutting Saw LJZ2-CNC-450×3700
Product Details
Features:
CNC Double-head Cutting Saw for Aluminum Door & Window is used for cutting -45°-90°-45°. adopt heavy duty linear guide and high precision rack transmission part. The moving head is dragged by stepper motor, controlled by CNC, LCD panel have a software for cutting The machine with dual-purpose, not only cutting, but also can cut connector. It features of stable structure ,good rigidity, safe and reliable , high precision, large cutting range, high efficiency, easy operation.
Technical Parameters:
Power supply: 380V/50HZ
Input power: 3.7KW
Air pressure : 0.5-0.8Mpa
Blade rotational speed: 3087r/min
Saw blade specification: D=450mm d=30mm
Cutting length: Min580mm Max3700mm
Cutting angles: -45°,90 °,45°
Outside dimension: 4500×1170×1400mm
Weight(about): 1300kg

Double-head Cutting Saw LJZ2-450×3700
Product details:
The Double-head Cutting Saw is used to process the aluminum and plastic profiles at angles of -45°, 90°, 45°. Pneumatic driving system and linear feeding ensures the stable running. The movement of the movable head is driven by a motor, easy to operate. The machine has the advantages of good rigidity, reliable operation, high accuracy, large processing range and high efficiency. This double -head cutting saw is one of essential uPVC and aluminum profile cutting equipment.
Features:
Right cutting head moved driven by a motor
High accuracy through hard-alloy saw blades
Stable saw blades feeding through Hydro-pneumatic Damping Cylinders
The two working head can work individually or simultaneously
Saw units rotate outward and inward achieving the cutting of -45°, 90°, 45°
Meet the requirement for both cutting length and cutting angle in one-time cutting
Special locating plates for transom profile cutting
Equipped with sawdust cleaning system
Technical Parameters:
Power Supply: 380V 50Hz
Input Power: 3.6KW
Working Air Pressure: 0.5-0.8Mpa
Blade Rotational Speed: 3087r/min
Saw Blade Specification: D=450mm, d=30mm
Cutting Length: 580-3700mm
Cutting Angles: -45°-90°-45°
Outside Dimension: 4500*1100*1400mm
Weight(about): 1250Kg

Arbitrary-angle CNC Double head Cutting Saw LJZ2R-CNC-500×6000
Product Details
Features:
The machine is most advanced double head cutting saw equipment for aluminum door & window.
The control system adopts the new closed-loop system.
The servomotor drives the speed reducer to adjust angle between 45°and 157.5°.
Several profile processing dimensions can be input one time and make continuous cutting.
The imposed high precision blade makes the cutting surface more smooth.
The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
The airproof device under the worktable has wonderful crumbs clearing effect.
The following saw cover keeps it working in the clean environment.
The profile is clamped by two cylinders in every head, and kept the cutting security.
Technical Parameters:
Power supply: 380V 50Hz
Motor power: 6.5Kw
Speed: 2800r/min
Air pressure: 0.5-0.8Mpa
Air consumption: 200L/min
Saw blade specifications: Φ500×4.4×Φ30 Z=120
Cutting length: 760-6000mm 45° 480-600mm 90°
Cutting width: max 120mm
Cutting height: max 230mm
Overall Dimension: 7800×1800×1530mm

CNC Corner Connector Automatic Cutting Saw LJMJ-CNC-450/500

Product Details
Features:
It has features of easy operation, reliable performance, advanced technique and convenient maintenance etc.
Used for connector of aluminum profile cutting, and for plastic profile cutting.
Imported carbide saw blade give accurate processing and high endurance.
Linear bearing motion pair gave less resistance force and ensured high processing accuracy.
Suitable for large volume production.
Clamping and feeding process adopt pneumatic control. It has features of high automatization, reliability and production efficiency.
Technical Parameters:

Power supply	380V 50Hz
Motor power	3.0Kw
Speed	3850r/min
Air pressure	0.5-0.8Mpa
Saw blade specifications	Φ500×4.4×Φ30 Z=120
Cutting range	135×300mm
Cutting angle	90°
Overall Dimension	1700×1400×1500mm
