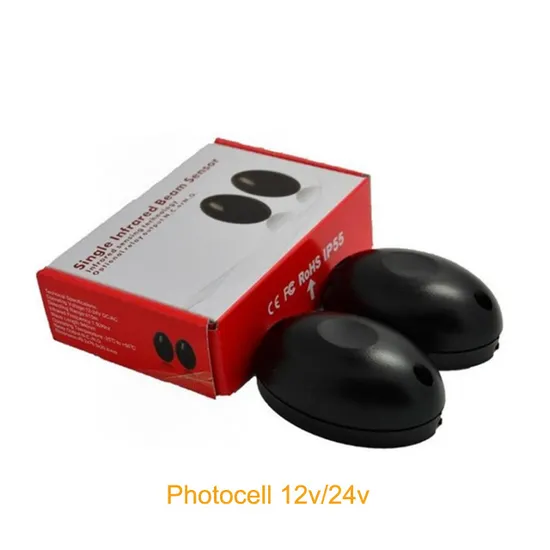

Infrared Photocell 12V 24V for Auto Gate Garage Door Opener Gate Photocell for Automatic Gate Opener

Product Description

Infrared Photocell 12V 24V for Auto Gate Garage Door Opener Gate Photocell for Automatic Gate Opener
Key Features: * Effective anti-glare for up to 50,000LUX, equipped with an automatic glare filtration system to mitigate the impact of light or car illumination. * Sealed against all weather conditions including rain (fog), dust (insects), and other integrated elements, designed to function reliably in challenging environments. * Detector adjusts sensitivity automatically during foggy or adverse weather conditions (AGC circuit). * Exceptional resistance to radio frequency interference (RFI) and electromagnetic interference (EMI). * Incorporates a unique digital filter circuit design. * Employs high-power transmitter components, offering a 90% sensitivity margin. The infrared receiver on the tube employs low-power processing technology and is equipped with anti-lightning circuitry. * Features a rain cover design. * Utilizes a C-type relay output. * Allows adjustment of the beam interruption period for enhanced flexibility and adaptability. * Comes with a professional anti-interference optical cover. Technical Specifications: * Outdoor Guard Distance: 20m * Indoor Alert Distance: 30m * Sensing Speed: 30ms * Alarm Output - Normal: Normally Closed (NC) & Normally Open (NO) contact capacity AV / DC 30V / 0.5mA * Alarm Linkage: Supported * Working Voltage: DC12-24V * Housing Material: Polycarbonate (PC) When the light beam between the emitter and the receiver is obstructed, the device will emit an alarm signal.
Product Description
Product type
infrared sensor, photocell, detector
Spec.

Power	12/24v AC&DC
Range	≤ 20 meters
Tem.	-10ºC -70ºC
Frequency	1.92 KHZ
wave length	940 nm
input	rx 15 mA Tx 30mA
Relay output	1A maz 36v
Technology	infrared
Dimention	49.2*76*21.6 mm

1, More than 200 kinds models; OEM & ODM welcomed

2, CE & RoHS & ISO Compliant

3, Patent moulds for enclosure

4, Markets covered Europe, South and North America, Asia etc.

5, Offer samples to test.
Trade terms

1). Payment: T/T only ,30% deposits before production,70% balance to be paid before delivery

2). Samples can be delivered in 3-5 days

3). Shipping freight are quoted under your requests

4). Discounts are offered based on order quantities

5). FOB price are quoted under inquiry
