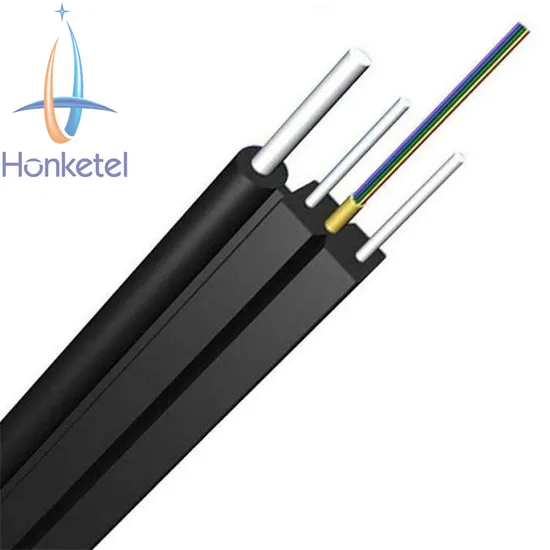

FTTH Indoor Outdoor 2 Core Self-Support Steel Wire Type Fiber Optic Cable Single Mode Drop Cable (GJYXFCH)

Product Description

Description:
The FTTH drop cable is positioned in the centre. Two parrallel fiber reinforced plastics(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color PVC/LSZH sheath. The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).

Characteristics:
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP/ steel strength members ensure good performance of crush resistance to protect the fiber.
3. Novel groove design, strip and splice, simplified installation and maintenance, higher tensile strength.
4. Single Steel wire as the additional strength member ensures good performance of tensile strength.
5. Simple structure lightweight and high practicability.
6. Novel flute design, easilystrip and splice, simplify the installation and maintenance.
7. Low smoke, zero-halogen and flame retardant sheath, environment-friendly, good safe.easily
Application:
1.High-performance optical network operating
2.High-speed optical routes in buildings (FTTH)
3. Suitable as cable extending from outdoor (as aerial cable) to indoor
Standards:
Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794.
