Industrial Oxygen/Nitrogen Production Plant Cryogenic Air Separation Plant

Product Description

Product Description
Cryogenic Air Separation Plant
Differ from Pressure swing adsorption process (PSA) process, we adopt Cryogenic distillation process for making the air separation plant.
With this process, pure gases can be separated from air by first cooling it until it liquefies, then selectively distilling the components at their various boiling temperatures. It can produce high purity gas product.

Product Parameters

Specification for cryogenice oxygen plant
Design condition	Atmospheric pressure	mmHg	760
	Ambient temperature	ºC	32
	Relative humidity	%	75
Main performance parameters	Oxygen output	Nm3/h	As user's requirement
	Oxygen purity	%	99.6
	Working pressure	Mpa	Subject to the final design
Power supply	Voltage	V	380/220 (Subject to user's condition)
	Frequency	Hz	50(Subject to user's condition)
	Total power consumption	KW	Subject to the final design

Detailed Photos
Air compressor
The inlet air will be compressed into the pressure as per process required.
It is sprayed-oil screw compressor, box-body construction, it have low noise, whole machine gather gas, lubricate, water, electric, cooling and instrument to one, realize machine and electric become one body.
Pre-cooling unit
The outlet temperature of compressed air is around 40ºC which is too high for the down-stream molecular sieves high efficiency operation, in order to increase the performance of the molecular sieves, a pre-cooling unit is required.
Purifier
Remaining contaminants in the process air such as moisture, carbon dioxide, acetylene (and etc.) shall be removed before enters into the main heat exchanger, a molecular sieves system is adopted.

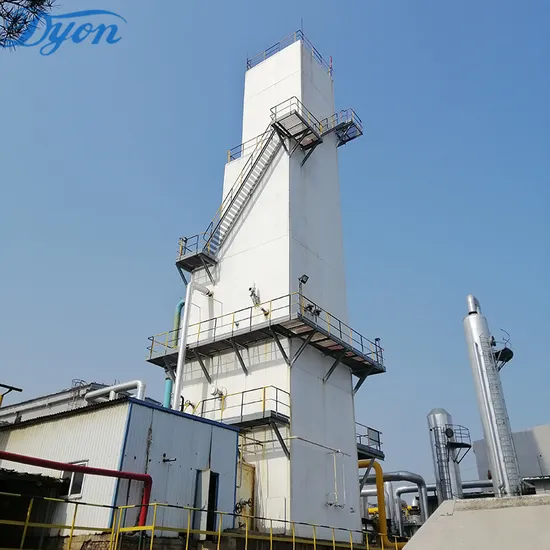

Fractionating column
It adopt fin type heat exchange, made in aluminum, heighten heat exchange affection, depress the operating pressure, reduce the power consumption furthest, saving cost.
Turbine expander
Turbine expander also referred to as a turbo-expander, is a centrifugal or axial-flow turbine, through which a high-pressure gas is expanded to produce work. It's the one of core part of the whole plant.
Liquid pump
Liquid pump is a kind of cryogenic liquid pump, by which the pressure of oxygen/nitrogen can be increased to achieve the purpose of transporting oxygen.
Our Advantages
All unit machines are skid-mounted construction, connected by fixed-size short pipe, it's not complicated to install. Adopt liquid oxygen pump inner-compress technology, could produce high-quality oxygen, which can be used both for medical and industrial filed. Complete set plant runs stablly, and it's easy to operate, convenient to maintenance, and we supply a two-year spare parts freely. Set four-stage pipeline oil-removing filter with imported filter element. Each filter element shall be replaced with a
monitor to remind users to replace the filter element regularly, preventing the
oil and water in the air from entering the purifier and fractionating tower. Design and manufacture of the external cleaning tower system of the fractionating tower, no need open to clean the oil in the fractionating tower, avoiding the trouble of removing and reloading perlite, cutting and welding aluminum pipes and leak detection. All the fractionating tower is filled with waterproof pearlite (perlite), which ensures the start-up time of normal oxygen production due to its excellent cooling effect. Advanced technology adopted in each unit can reduce power consumption greatly, and save electricity fee at the
same time.
Packaging & Shipping
All goods are packed as required as transportation standard.
Certifications
In order to improve equipment performance and provide customers with better products, our company has established a research and development center. After continuous research and creation, combined with market demand, we have invented many devices to improve equipment performance. The following is a partial display of our invention patent certificate:
Successful Project
Related products

Model	GO2 output and purity	GN2 output and purity	Unit power consumption	Occupied Area
KZO-20	20Nm3/h, ≥99.6%	--	1.4KWH/NM3 O2	~100M2
KZO-30	30Nm3/h, ≥99.6%	--	1.4KWH/NM3 O2	~100M2
KZON-30/30	30Nm3/h, ≥99.6%	30Nm3/h, ≥99.999%	1.4KWH/NM3 O2	~100M2
KZO-40	40Nm3/h, ≥99.6%	--	1.4KWH/NM3 O2	~150M2
KZON-40/40	40Nm3/h, ≥99.6%	40Nm3/h, ≥99.999%	1.4KWH/NM3 O2	~150M2
KZO-50	50Nm3/h, ≥99.6%	--	1.4KWH/NM3 O2	~150M2
KZON-50/50	50Nm3/h, ≥99.6%	50Nm3/h, ≥99.999%	1.4KWH/NM3 O2	~150M2
KZO-80	80Nm3/h, ≥99.6%	--	1.38KWH/NM3 O2	~150M2
KZON-80/80	80Nm3/h, ≥99.6%	80Nm3/h, ≥99.999%	1.38KWH/NM3 O2	~150M2
KZO-100	100Nm3/h, ≥99.6%	--	1.38KWH/NM3 O2	~210M2
KZON-100/100	100Nm3/h, ≥99.6%	100Nm3/h, ≥99.999%	1.38KWH/NM3 O2	~210M2
KZO-120	120Nm3/h, ≥99.6%	--	1.38KWH/NM3 O2	~210M2
KZON-120/120	120Nm3/h, ≥99.6%	120Nm3/h, ≥99.999%	1.38KWH/NM3 O2	~210M2
KZO-160	160Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZON-160/160	160Nm3/h, ≥99.6%	160Nm3/h, ≥99.999%	1.3KWH/NM3 O2	~250M2
KZO-180	180Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZO-200	200Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZO-250	250Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZO-300	300Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
KZO-350	350Nm3/h, ≥99.6%	--	1.3KWH/NM3 O2	~250M2
