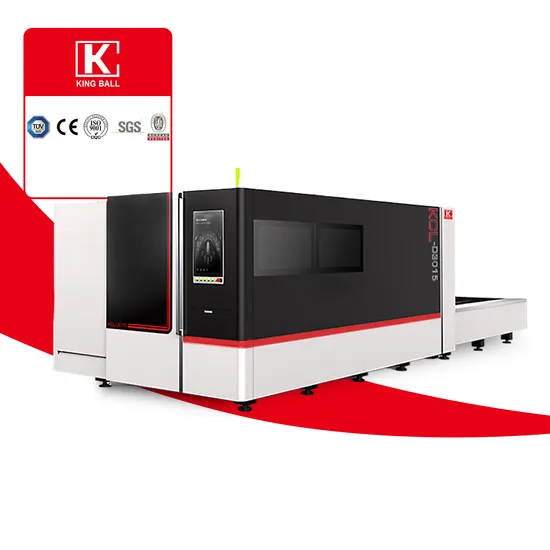

Kcl Mini 1kw 2kw 3kw 4kw 6kw 8kw 12kw 20kw Mild Stainless Steel Iron Aluminum Copper CNC Sheet Metal Tube Pipe CNC Automatic Fiber Laser Cutting Cutter Machine

Product Description

Products Description
Performance
Professional mechanical design, novel appearance modeling and a number of patented technologies, with high degree of refinement, fast speed, small cutting seam, smooth section, simple operation and low energy consumption, are suitable for mass continuous processing and highlight the cutting competitive advantage.Details Images

Model	KCL-3015	KCL-4015	KCL-4020	KCL-6020	KCL-6025	KCL-8025	KCL-10025	KCL-12025
Cutting Range (mm)	3000*1500	4000*1500	4000*2000	6000*2000	6000*2500	8000*2500	10000*2500	12000*2500
Laser Power (w)	1000W&1500W&2000W&3000W&6000W&8000W&12000W
Maximum idle speed	160 m/min
Maximum cutting speed	35-80 m/min
Positioning Accuracy	0.03 mm
Reposition Accuracy	0.02 mm

Core Thechnology
MAX & Raycus & IPG Brand Laser Source
Higher Electro-optic conversion efficiency Superior reliability & modularity Easy maintenance and low down time Anti high reflection function
Laser Cutting head
3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively
extending the continuous working time.
Various brands of laser head are available
CYPCUT
Easy to use
Vanous file editing functions
Supporl remole oontrol
Real-time alarm and protection
Steel Plate Welding
steel frames undergo annealing at over 600 degree to relieve stress. They are built to last years of heavy use without distortion. Auto
changing pallet system allows over 1800kg loading weight.A heavier frame means less vibration and better accuracy. the machine
frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel
bars.
Aluminum beam
The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is
casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be
maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.
France MOTOREDUCER Servo Motor-Japan FUJI
Hanli brand Industrial chiller Electric cabinet(Separate electric cabinet with air conditioning)
Air Compressor(Optional) Volatge Regulator(Optional) Dust Extraction System(Optional) Cutting Thickness of Fiber Laser Cutting Machine
Cutting Samples
Company & Factory Introduction
Our Service Pre-sales services:
1. inquiry and consulting support 2. sample testing support
3. visit our factory
After-sales services:
1. 2 years warranty period 2. training how to install and use the brake press machine
3. engineers available to service machinery overseas

Contact Ways
Mr.Pumbaa Yang
Customer Manager
E-mail:pumbaa@jinqiu.cc

FAQ
1.Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days.
For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.
Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging.
We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items.
Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.
By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.
