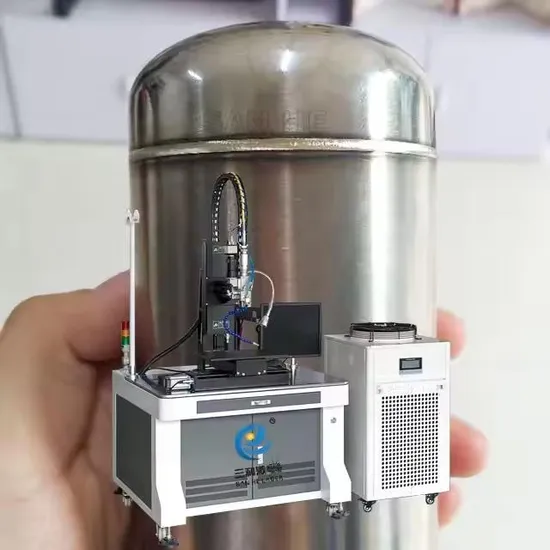

Hardware Floating Ball Kettle Knife Pipe Door Handle Fiber Laser Welder Automatic Fiber Laser Welding Machine

Product Description

model	3HE-MF1000W/1500W/2000W/3000W/4000W/5000W
Laser Source Optical Parameters
Work Model	Continuous
Average Power(Pulse)	1000w
Max.Power (W)	1500w
Laser Wavelength(nm)	1080±5
Repetitive Rate(Hz)	500-5000
Pulse Width(ms)	0.05-0.6
Output Power Stability	<2%
Right light	Yes
Repeat Position Precision
Output Parameters
Fiber Core Diameter(um)	25/50/100 Optional
BBP(mm. m rad)	0.4,2.5
Electronic Control Characteristics
Input Voltage	200-240VAC/47-63Hz
Control Model	External RS232/AD
Power Adjustment	10%-100%
Power Consumption (W)	1200
Welding Parameters
Welding Speed	According to welding materials (adjustable)
Welding Depth(mm)	0.2-3mm(adjustable)
Beam Range	0.1-4.0mm
Others
Auxiliary Gas	Argon
Dimension	W90*L1500*H2000mm
Weight	<500
Cooling	Watering cooling
Operating temperature ( ºC)	10-40

Q1. When the machine can't work well, what should I do?
A: 1. The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon.
2. All our machines have two years' warranty, If there is any problems of machine parts under "normal use", new machine parts will be
sent by air for free.
3. Please rest assured that operation CD and manual will be offered along with machine, ensuring you can operate the machine easily.
Q2. Are you factory or trading company?
A:We are factory with 11 years experience has branch or offices in Thailand,Vietnam,Malaysia,Tianjin, Zhejiang, Jiangsu, Shanghai,
Chongqing and Dalian.
Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and
quick sale service.
Q3. Where is your facotry located in? How can I visit there?
A: Our factory is located in 3/F, Building B, Lianyi Industrial Park, Wentang Middle Road, Dongcheng District, Dongguan,
Guangdong, China .
We can pick you up from Shenzhen airport to our factory,You are warmly welcome to visit us!!!
Q4.How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the very beginning to the end.
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
and we have CE, ISO9001,SGS certification.
Q5.What is the delivery time?
A:We have standard models in stock,will delivery within 5-7 working days.
For un-standard models, we will delivery within 10-15 working days.
Q6. How long can I expect to get the sample?
A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side.
Q7: How can I get Machine's spare parts?
A: There are two methods. Spare Parts ordered together with the machine, this is the safest way to transport the parts.
The other way is you can inform us when you need to replace the consumables, we will send them to you within 24 working hours.
