120 Tons 8-Cavity Plastic Pen Ballpoint Pen Making Machine

120 Tons 8-Cavity Plastic Pen Ballpoint Pen Making Machine

US$13,000.00 1 sets (MOQ)

Basic Info.

Model NO.
HCE120
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Opening Stroke
350mm
Voltage
220V/380V/400V/415V
Ejector Stroke
100
Ejector Force
38
Space Between Tie Bars(W×h)
410*410
Transport Package
Wooden
Specification
4.15*1.12*2.00m
Trademark
HAICHEN
Origin
Zhejiang, China
HS Code
8477101090

Product Description


Product Description
Pen Making Machine
Haichen is a ballpoint pen injection molding machine manufacturer
We can provide you with professional advice and solutions, including the selection of ballpoint pen machines and pen molds. Our pen injection molding machines have helped many factories succeed through efficient production.
There are many types of pens. Like ballpoint pens, DF pens, gel pens, Novelty Pens… Normally all of those pens' plastic parts, are made by a pen injection molding machine.

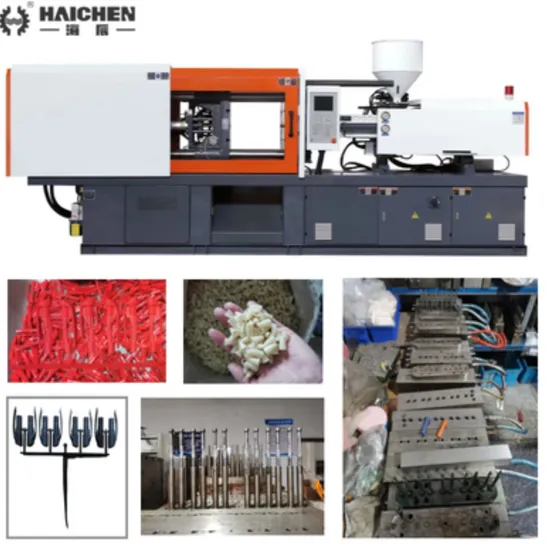

Detailed Photos
The Required Equipment 1.HAICHEN Injection Molding Machine
110 ton-150 ton
2.Mould
8cav-32cav
3.Auxiliary
Auto loaders/Chiller/Dryer/Crusher
4. Robot/conveyor

Product Parameters
INTERNATIONAL CLASS NO HCS120
A B C
INJECTION UNIT
Screw diameter mm 35 38 42
Screw L/D ratio L/D 22 20.2 18.4
Shot volume(theoretical) cm3 163 192 235
Injection weight(ps) 9 148 175 213
Injection rate g/s 89 105 128.1
Injection pressure Mpa 219 186 152
Screw pressure rpm 210
CLANPING UNIT
Clamping force kN 1200
Open stroke mm 350
Space between tie bars(W×H) mm 410*410
Max.Mold height mm 380
Min.Mold height mm 150
Ejector stroke mm 100
Ejector force kN 38
OTHERS
Pump pressure MPa 16
Pump motor power kW 11
Heating power kW 8.2
Machine dimension(L×W×H) m 4.15*1.12*2.00
Oiltank cubage L 200
Machine weight t 3.4

Company Profile
Haichen Machine is a global manufacturer of high precision plastic injection molding machines. We are not just an injection molding machine manufacturer, also supply the solution for plastic production.
Our headquarters, centrally located in Ningbo and is an injection molding machine production factory that integrates production, sales, and after-sales service. Haichen machine is fully equipped to support sales, service, mold trials, customer training, maintenance… Our service teams are staffed with experienced, professional service technicians who are fully committed to supporting the success and profitability of our customers.
Haichen injection molding machine, ranging from 30 tons to 3000 tons, with more than 20 years of experience. Haichen machine generally stocks over 100 injection molding machines for quickly delivery.
Our Advantages
Packaging & Shipping
FAQ
Q: Parts of a pen
A: The parts of a pen like pen barrel, pen clip, pen tip, thrust device, thrust tube, spring, reservoir, socket, ball & ink.
Q: 5 steps to manufacture a ballpoint pen
A: Step 1:Raw material preparation for all of the pen components.
Step 2: Ballpoint pens part manufacturing process by injection molding.
Step 3:Pen refill production.
Step 4:Assembling the pens process
Step 5: Testing and Quality Inspection.
Q: The injection molding production process of ballpoint pens using PS raw materials
A: The production process of the injection molding machine using PS material in the manufacturing process of the ballpoint pen is as follows 5 steps:
Material preparation,Drying,Injection molding,Molding process and Post-processing
Q: What machines are used to make pens?
A: What machines are used to make pens? The answer is 3 different machines:
Pen injection molding machine,Ink filling machine,Automatic assembling machine
