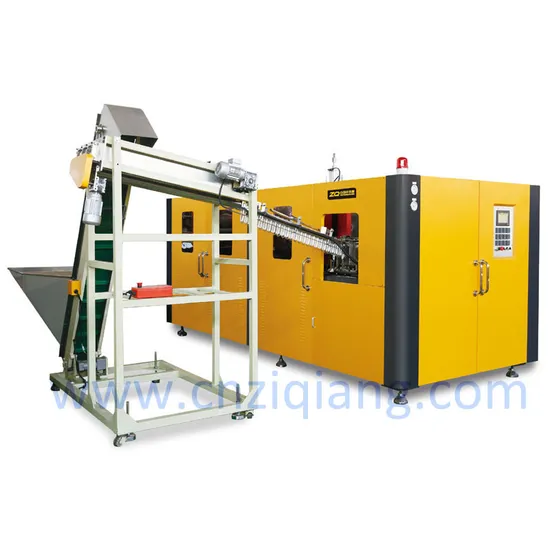

Fully Automatic 1500ml Mineral Water Bottle Making Machine Price for Pet Bottle Blower
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZQ-M1500-3
Making Method of Parison
Injection Molding
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
After-sales Service
Engineers Available to Service Machinery Overseas
Max.Container Volume
2000ml Bottles
Number of Cavity
3 Cavities
Auto Systems
Fully-Auotmatic
Products Output
2300-2600bph
Delivery Date
40 Days
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
General Packing
Specification
CE & ISO 9001
Trademark
ZQ
Origin
Huangyan, China
HS Code
8477300000
Production Capacity
30 PCS/Month
Product Description
Fully Automatic 1500ml Mineral Water Bottle Making Machine Price for PET Bottle BlowerBy structure optimization and technicial innovation, Cost-effective ZQ-M series of blowing machines have been developed on the basis of ZQ-A series of blowing machines.
ZQ-M series of blowing machines can produce different shapes of 0.6L, 2.0L, 5L and 10L carbonated, mineral, pesticide, cosmetics, wide-mouth and other plastic PET/PP containers. They have all the advantages of ZQ-A series of blowing machines: Low rejection rate, high speed, stable running and easy operation.
ZQ-M600-4 Speed: >=4500bottles/hour.
Settings One.
A). PLC colour display: OMRON(Japan)
B). Pneumatic parts: FESTO(Germany)
C). Controller of preform transfer: Servo motor DELTA(Taiwan)
D). Other electric parts are all world-famous brand
PET bottle making machine,equipment information.
| TYPE | ITEM | ZQ-M1500-2 | ZQ-M1500-3 | ZQ-M5000-1 | ZQ-M5000-2 |
| CONTAINER | Number of cavity | 2 | 3 | 1 | 2 |
| Output | 1600-1800 pcs/hr | 2300-2600 pcs/hr | 600-700 pcs/hr | 1200-1400 pcs/hr | |
| Max. container volume | 2.0L | 2.0L | 5L | 5L | |
| Max. neck diameter | 38mm | 38mm | 100mm | 100mm | |
| Max. container diameter | 105mm | 105mm | 180mm | 180mm | |
| Max. container height | 350mm | 350mm | 350mm | 350mm | |
| ELECTRICAL SYSTEM | Number of lamp | 28pcs | 40pcs | 28pcs | 48pcs |
| Max. heating power | 42kw | 60kw | 42kw | 60kw | |
| Installation power | 44kw | 65kw | 44kw | 63kw | |
| Actual power consumption | 28kw | 40kw | 30kw | 40kw | |
| AIR SYSTEM | Operatating pressure | 7kg/cm² | 7kg/cm² | 7kg/cm² | 7kg/cm² |
| Low pressure consuming | 1200 Ltr/min | 1600 Ltr/min | 1200 Ltr/min | 1600 Ltr/min | |
| Blowing pressure | ≤ 30kg/cm² | ≤ 30kg/cm² | ≤ 30kg/cm² | ≤ 30kg/cm² | |
| High pressure consuming | 2000-2500Ltr/min | 2800-3000Ltr/min | 2000-2500Ltr/min | 3000-3500Ltr/min | |
| CHILLER WATER | Operating pressure | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² | 5-6 kg/cm² |
| Temperatuer | 10° C | 10° C | 10° C | 10° C | |
| Consuming | 5600kcal/hr | 7600kcal/hr | 5600kcal/hr | 5600kcal/hr | |
| Flow rater | 30Ltr/min | 40Ltr/min | 30Ltr/min | 30Ltr/min | |
| MACHINE | Machine dimension | 3.1× 1.45× 1.85(m) | 4.20× 1.60× 1.9(m) | 3.3× 1.75× 1.9(m) | 4.35× 2.0× 1.9(m) |
| Machine weight | 2.0T | 2.5T | 2.2T | 3.2T |
Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
