Double Screw Extruder Floating Fish Feed Pellet Making Machine

Product Description

Product Description
Double Screw Extruder Floating fish Feed Pellet Making Machine
The pet food production line is a fully automatic and food-grade processing production line. You can make pet food in any shape according to different market needs. In order to increase the protein and other nutrients of pets, the automatic dry pet food machine/processing line uses meat meal, grains, beans and vegetables as raw materials to produce pet food with new shapes and unique tastes, so that they can live healthier.
1. Raw materials for fish food: wheat/corn meal, fish meal, raw flour, fresh fish, meat, chicken
2. Final food: dog food, shrimp feed, fish feed, poultry feed in different shapes and sizes
3. Capacity: 600-1000kg/h, 1000-2000kg/h, 2000-4000kg/h, 4000-6000kg/h
4. Consumption: low electricity and labor consumption
5. Design: Flexible design according to customer needs, we provide turnkey projects.

Material	The part of contact food is stainless steel
Voltage	Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
Standard	CE
Capacity	80-120kg/h, 150kg/h, 250kg/h, 500kg/h, 1t/h, 2t/h
size of fish feed	1-14mm
Features	Lots of types, flexible collofishion, extensive applied raw materials, easy operation.

Detailed Photos
Fish feed grinder Fish feed manufacturing machinery

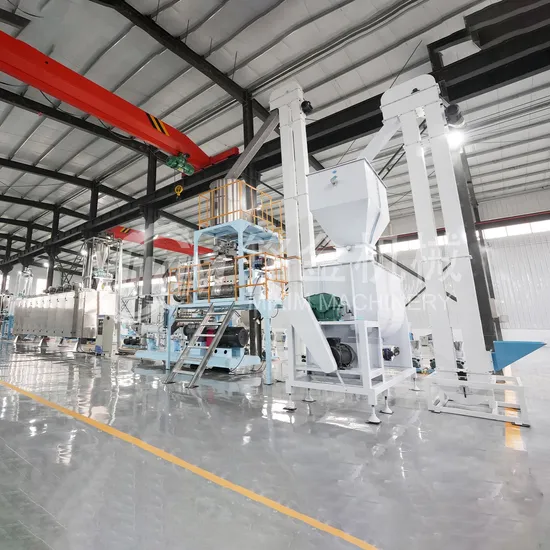

Fish feed grinder Fish feed manufacturing machinery includes raw material mixer → twin screw extruder → elevator → layering oven → automatic seasoning line and packaging machine.
The fish feed machine can produce floating fish feed, and the fish can float on the water for about 24 hours.

Parameter of fish feed mill machine fish feed manufacturing machinery
Model	65	70	85	90	95
Installed capacity(kw)	35	50	110	130	150
Real power(kw/h)	22	37	75	90	110
Output(kg/h)	100-150	200-300	300-800	800-1500	1500-2000

Dryer
The feed dryer uses a heat pump evaporator to absorb heat from the outside air, or recovers the waste heat of the exhaust gas during the drying process. Through the work of the compressor, the energy is transported (transferred) to the drying box. The hot air in the drying box is repeatedly circulated and heated to absorb the moisture in the material, and then cooled and humidified. After the hot air dehumidifies or condenses, the moisture in the material is taken out, and finally the material is dried continuously.
Seasoning Machine
The coating roller is specially designed to evenly apply seasoning to your baked or fried products. All products come standard with a stainless steel frame and adjustable feet. Motors, brackets, oil spray pipes and nozzles are also standard.
1. Spray fish oil or other nutritional additives on the surface of pellets to improve the palatability and conversion rate of feed.
2. Adopts roller mode and oil atomization spray system, continuous and automatic operation.
3. Widely used to spray fat, vitamins, substrates and drugs on the surface of extruded feed.
Cooler
Adopt counter-current cooling principle to make the particles fully cooled.
1 Special components make the particles uniform.
2 The pendulum counter-current cooler adopts pneumatic system control layout.
3 Suitable for cooling various materials. Company Profile
