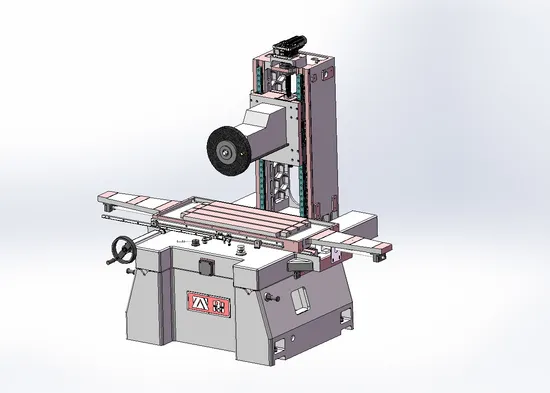

Grinding Wheel Moves Surface Grinder Machine, Surface Grinding M630 Ahr

Product Description

BRIEF INTRODUCTION
Zhongnan produces surface grinding machine from small size up to big size.
The accuracy of the machine meets the national standard of horizontal surface grinding machine. (GB/T4022-1983)
The longitudinal movement of the working table is driven by high performance pump, which has stable movement and low noise. The oil tank is equipped with a cooling device, low temperature rises and small thermal deformation.
The machine can grind grooves and flange sides.
The grinding head adopts the internationally accepted rolling bearing structure.
The grinding head transverse feed motion screw adopts high precision ball screw, the feed is sensitive, the transverse feed movement can be hydraulic or manual. The vertical feed is manual controlled, with a quick moving device, and it is easy to move up and down.
Automatic lubrication system lubricates each guide ways and vertical balls crew.
Parameters of surface grinding machine M630AHR

Name	M630AHR
Working table dimension(L×W)mm	600×300mm
Max grinding length mm	660mm
Max grinding width mm	340mm
Distance between spindle center to working table	540mm
Max weight of workpiece	430kg
T slot of working table	14×1
Feed speed of working table	5-23m/min
Front-back hand wheel manual feed rate	5mm/rotation, 0.02/min
Front-back automatic feed rate	0.1-8mm
Front-back rapid feed speed	50Hz 820mm/min
Grinding wheel dimension(OD×W×ID)mm	350×40×127
Rotation speed of grinding wheel	1450r/min
Max up-down movement	432mm
Up-down hand wheel feed rate	0.001mm/min 0.2mm/rotation
Up-down rapid feed speed	630mm/min
Spindle motor RPM and power	1450r/min, 5.5kw
Up-down motor power	80W
Front-back motor power	40W
Oil pump power	2.2kw
Weight of machine	2000kg
Space of machine	2200×3000×1900mm

Company Profile
Nantong Zhongnan Intelligent Technology owns Zhongnan CNC technology, Zhongnan Intelligent, Xinsheng CNC technology and other subsidiaries such as foundry factory. Since its establishment in 2000, Zhongnan started with producing surface grinding machines, and gradually developed into high-end CNC machining center and manufacturing with production lines of CNC vertical machining center, high-precision gantry machining center, horizontal machining center, CNC vertical and horizontal milling machines, Zhongnan is one of the reputed manufacturers covers full production lines in the metal cutting machines industry in China. The products of the group company are widely used in defence industry, aerospace, automobile, green energy, mold and other fields of manufacturing.
Zhongnan Intelligent Technology has a production park covers 100,000 square meters. There are more than 380 employees, 30 senior engineers, and 20 R&D engineers. Production capacity covers the entire production chain of casting manufacturing, machining, painting, assembly, commissioning, inspection, etc.
100,000 square meters factory.
