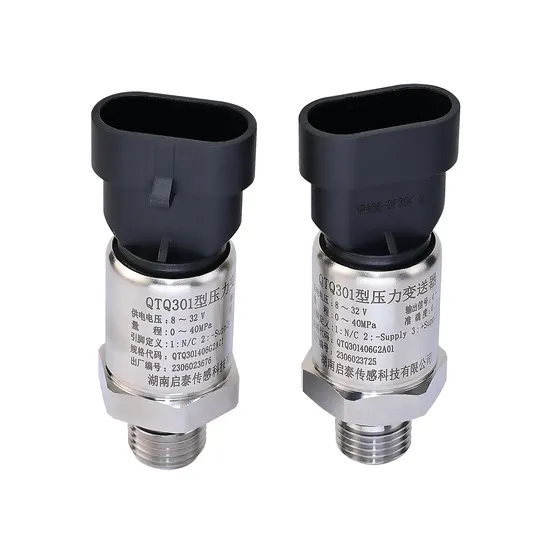

China Factory Chntek Pressure Sensor 0.5-250MPa 4-20mA 0.5-4.5V Pressure Transmitter

China Factory Chntek Pressure Sensor 0.5-250MPa 4-20mA 0.5-4.5V Pressure Transmitter

US$45.80
1-99 Pieces
US$36.80
100-999 Pieces
US$28.80
1,000+ Pieces

Basic Info.

For
Strain Gauge Pressure Transmitter
Output Signal Type
Analog Type
Production Process
Normal Wirewound
Material
Stainless Steel
Thread Type
G
Wiring Type
Three-Wire
Measuring Medium
Liquid
IP Rating
IP67
Certification
RoHS
Customized
Customized
Range
0.5-250MPa
Trademark
chntek
Origin
China
HS Code
9026209000
Production Capacity
500000

Product Description

Parameter QTQ 300
Measuring range(MPa) 1-10 16-40 60-100MPa 100-250MPa
Burst pressure 300% 300% 200% 100%
Overload pressure 4000% 1000% and ≤400MPa ≤400 MPa
Accuracy ±0.2%F.S/±0.5%F.S/±1%F.S
Long-term stability ±0.2%F.S/year
Output 4-20mA, 0.5-4.5V, 0.5-4.5V(ratiometric), 0-10V,0-5V
Power Supply 8-32VDC
Zero point temperature drift ±0.1%F.S/10ºC
Full range temperature drift ±0.3%F.S/10ºC
Response time ≤1ms
Durability 10^8pressure circles
lnsulation resistance ≥1000MQ/500VCD
Sensitive component material 17-4PH
lP rating IP67
Medium temperature range -40~+80ºC(0.25%F.S), -40~+105ºC(0.5%F.S,1%F.S)
Ambient temperature range -40~+105ºC
Storage temperature range -40~+105ºC
Random vibration 20g,GB/T2423.56-2006
Sinusoidal vibration 14.1g,GB/T2423.10-2008
Shock 50g,11ms,GB/T2423.5-1995
EMC-electromagnetic field radiation immunity GB/T 17626.3-2016
EMC-electrostatic discharge immunity GB/T 17626.2-2018
Dimensions Outer diameterΦ 19.6mm, height 47.6±1mm
Pressure port G2=G1/4-19
M3=M12*1.5
G1=G1/8
G5=G1/4-19A
M6=M20*1.5
M1=M8*1.25
G4=G1/2
M4=M14*1.5
N2=NPT1/4
G3=G3/8
Electrical Connection 01=M12X1
02=Direct cable outlet
03=Packard connector
04=Hirschmann connector
05=AMP connector
07=Deutsch DT04-4P
08=Deutsch DT04-3P
12=SUMITOMO 6189-0131
13=SUMITOMO 6189-6907
