Ep / Nylon Rubber Conveyor Belt for Mining Coal

Product Description

Ep / Nylon Rubber Conveyor Belt for Mining Coal
Company Information
Rongcheng Huacheng Rubber Co., Ltd. is specialized in rubber products, research and development, design and manufacturing, business services as one of the enterprises. The company has domestic first-class research and development centers, the test set up complete, advanced detection instruments, to ensure that the raw materials, semi-finished products, finished the whole process to get to the full testing and quality control to ensure that customers receive consistent quality product.

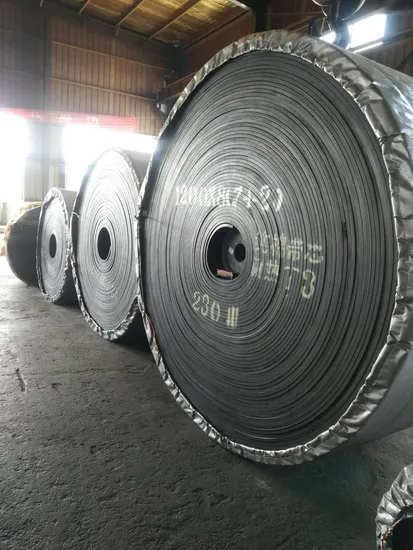

Product picture
Multi-ply Fabric belt
The multi-ply fabric belts high performance and flexibility on the basis of the latest technologies. Due to the carcass construction and quality of cover they guarantee optimal operations with respect to the conveying of sharp -edged, cold and chemically neutral bulk materials in the field of raw material extraction and in the processing industry
EP Conveyor Belt Technical Parameters Reference

Conveyor Belt Type	Textile Model	Monolayer Longitudinal Tensile Strength ≥N/mm	Canvas Layer	Top Cover Rubber Thickness mm	Bottom Cover Rubber Thickness mm	Belt Width mm	Monolayer Thickness mm
EP Conveyor Belt	EP-100	100N/mm	suggest that do not more than 6 layers	3~25	0~10	300~2200	0.75
	EP-125	125N/mm					0.75
	EP-150	150N/mm					0.85
	EP-160	160N/mm					0.85
	EP-200	200N/mm					1.00
	EP-250	250N/mm					1.20
	EP-300	300N/mm					1.35
	EP-315	315N/mm					1.40
	EP-350	350N/mm					1.50
	EP-400	400N/mm					1.65
