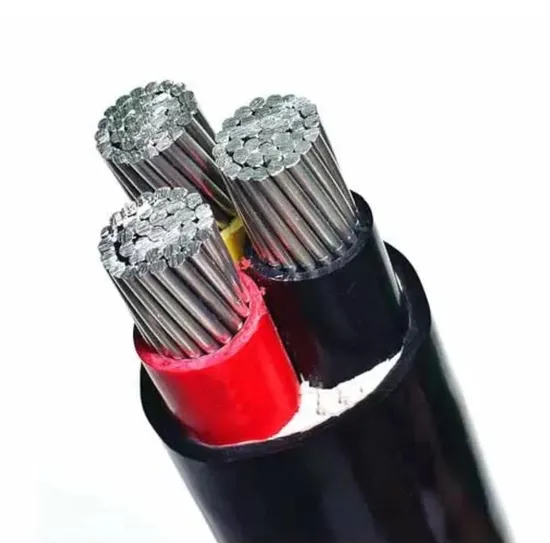

Low Voltage PVC Insulation Cable 3 Cores Conductor Power Cable with ISO 9001 China Factory

Product Description

Applications:
Used outside as energy utility and lighting cables, in cable ducts, under ground, under normal and salty
water if specially made.

Construction:Conductor : Annealed Aluminum Conductor as per IEC 60228
≤6mm2 solid (class 1) or stranded (class 2)
>6mm2 stranded (class 2)
Flexible conductor(class 5) optional.
Insulation : PVC(polyvinyl chloride) rated at 75ºC
Metallic Screen optional : Copper tape or copper wires braiding optional
Armored optional: :Aluminum wire or stainless steel tape for single core cable, Steel wire or steel tape for multi core cable
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Standards:International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request

Technical data:Rated voltage:0.6/1kV Low Voltage
Maximum Conductor Temperature: under normal (75 ºC), emergency (130ºC) or short circuit no more than 5 s (160ºC)
conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor

Certificates:ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

Ordering Advice
Rated Voltage
Application Standard:IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement

Technical parameter:

Cross section of conductor	Thickness of insulation	Thickness of Sheath	Approx.cable diameter	Test Voltage(AC)
mm2	mm	mm	mm	KV/5min
3x1.5	0.8	1.8	10.9	3.5
3x2.5	0.8	1.8	11.8	3.5
3x4	1.0	1.8	13.7	3.5
3x6	1.0	1.8	14.8	3.5
3x10	1.0	1.8	17.6	3.5
3x16	1.0	1.8	19.9	3.5
3x25	1.2	1.8	23.6	3.5
3x35	1.1	1.8	26.1	3.5
3x50	1.4	1.8	26.5	3.5
3x70	1.6	2.0	28.8	3.5
3x95	1.6	2.1	33.6	3.5
3x120	1.8	2.2	37.1	3.5
3x150	2.0	2.3	41.9	3.5
3x185	2.2	2.5	45.9	3.5
3x240	2.4	2.7	51.8	3.5
3x300	2.6	2.9	55.3	3.5
3x400	2.6	3.0	60.6	3.5

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is
always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and
non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather
-proof material on the outsides of drum according to customer's requirement.
Till now, TDDL has obtained a series of certifications covering ISO9001 quality management, ISO14001 environmental ,
management system certification, OHSAS18001 occupational health and safety management system, China CCC, PCCC,
CRCC, CE etc.
Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation:
Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than
30 years.
The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds
of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, enviro
nmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control
cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and
etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and
others,on the basis of customers' requirements. The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001
occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product
certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc. As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power
Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely
usedin smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than
60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from
numerous customers.
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60
countries and regions, and enjoys a certain reputation among users.
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable
(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,
Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay ,
Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our
workshops are equipped with advanced production and inspection equipment and the products strictly according to internati
onal standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the sim
ilar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
