Precision Knitting Machine for High-Quality Sweater and Fabric Production with Computer Control

Product Description

DISCOVER GSJX: The Pinnacle of Knitting Technology
EMBRACE THE FUTURE OF KNITTING
LEADERS IN KNITTING MACHINERY EXCELLENCE With 25 years of relentless innovation and unparalleled service enhancement,
Guosheng stands at the forefront of the global smart knitting machine manufacturing industry.
We are dedicated to enhancing the performance of our entire product range,
Collaborating closely with knitters worldwide to drive standardization efforts
in the global knitting machine industry.
WHY CHOOSE OUR MACHINE
Purchase now and receive complimentary training for machine operation and pattern design.
Guosheng provides mature and attentive service, ensuring free training in machine operation and pattern design to alleviate any concerns.

Comprehensive one-year warranty

Guosheng boasts a stable inventory and efficient production capabilities.
We are committed to providing a satisfactory purchasing experience. Guosheng's complete inventory system and efficient assembly line ensure a delivery period of approximately 10 days. We also offer customized orders to further enhance efficiency and shorten delivery times.
Efficient, high-quality machines that you simply cannot miss.
1) Optimized cam structure and motor model significantly boost needle transfer speed.
2) Compact carriage design allows for fast return, enhancing work efficiency.
3) Yarn storage collaboration improves fabric flatness.
4) Needle plate with milling flute method and heat treatment ensures sustained high efficiency.

Product Description
Product Application

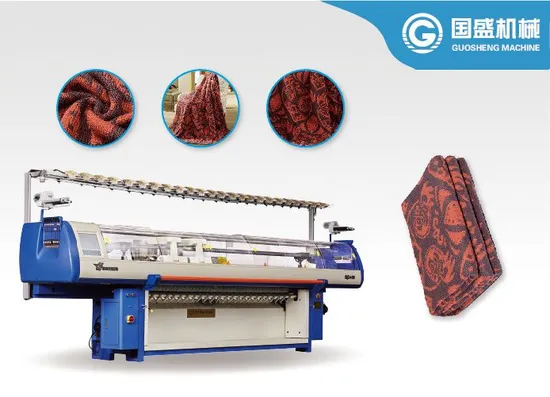

This computerized flat knitting machine with single carriage single system is an economical option, utilizing digital technology for various knitting functions like transfers, tuck, eyelet stitch, jacquard, and more.
Capable of knitting basic stitches such as plain stitch, rib fabric, links and links, interlock stitch, and others.

SPECIFICATIONS FOR FLAT KNITTING MACHINE
Model	GSJX-1-52
Gauge	5G,6G,7G,8G,9G,10G,12G,13G,14G,15G,16G
Knitting Machine	Single System,Single Carriage
Knitting Width	44inch,52inch,60inch,80inch,100inch
Knitting Speed	Max 1.2m/s
Knitting Function	Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide or Apparent Shaping
Stitch Density	Stitch system controlled by stepping motor,32 section stitch selectable,adjustable scope supported by subdivision technology:0-650.
Racking	Controlled by AC servo motor,racking within 2 inches and with fine adjusting function.
Drive System	Synchronous belt drive,AC servo system.
Needle Selection	Controlled by computer,electric magnet needle choose system with high efficiency.
Yarn Carrier	1*8 yarn carriers on each side of 4 guide rails,shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor,32 section levels selection adjustable area:0-100.
Protection System	The machine will automatically alarm if yarn breaking,float yarn,rewind,end of knitting,fail of racking,needle breakage and error programming occur ect.
Control System	1.Adopt LCD screen,input device:USB,system memory 256MB,a great amount of design files can be stored. 2.Monitoring menu,each knid of operating parameter,can be shown,and they can be adjusted at any time when the machine is running. 3.Design system is visual and easy to understand and upgrad. 4.Multi language version ,there are chinese,english etc.
Power	220v,single-phase,have memorizing function at the power-off moment.

Main Features1) Optimized cam structure and motor model significantly boost needle transfer speed.
2) Compact carriage design allows for fast return, enhancing work efficiency.
3) Yarn storage collaboration improves fabric flatness.
4) Needle plate with milling flute method and heat treatment ensures sustained high efficiency.
Certifications
We care for every product as if it were our own child.To ensure safe transportation, we use vacuum packaging to prevent moisture and rust. We also offer complete packaging solutions tailored to your requirements, ensuring convenience in loading, unloading, and storage, as well as saving time during checking and delivery. Receive your product in perfect condition, right on time.
