Innovative Eco-Friendly Granulator for PS Foam Plastic Waste

Product Description

Plastic Recycle Machine ---Experience the unparalleled efficiency of our Die-Cutting EPS Recycle Machine, designed for maximum output. It's your ideal solution for large-scale recycling operations.
Machine Features
--Large-capacity silo featuring a cyclone separator device, ensuring seamless and efficient material handling.
--Outfitted with an expansive inlet grinder and powerful blower, delivering a remarkable transport distance of up to 50 meters.
--Both the primary and secondary extruders feature hydraulic screen changers, maximizing efficiency and reducing downtime.
--Versatile cutting options include both die-cutting and straight cutting types to suit all production needs.
--User-friendly operation with consistent performance, premium quality, and high automation for superior processing.
--Equipped with a reducing screw for optimized operation and processing efficiency.


Specification

Model	HLFSJ-190/130
Capacity	300-400kg/h
Power	261KW
Cooling water	0.3-0.4Mpa
Screw L/D	21.4/1(First screw); 12:1(Second screw)

Different Models

Model Parameters	Unit	HLFSJ-80	HLFSJ-130	HLFSJ-150/120	HLFSJ-190/150
Capacity	Kg/h	30-50	100-180	180-220	300-400
Inlet width of crusher	mm	/	1100	1420	1420
Power of crusher	kw	/	22	30	30
Max delivery of blower	m	/	50	50	50
Power of blower	kw	/	4	4	5.5
Volume of Silo	m2	/	9	9	9
Diameter of the primary screw	mm	80	130	150	190/150
L/D	/	18	18.5:1	18.7:1	21.4:1
Diameter of the secondary screw	mm	/	100	120	130
L/D	/	/	11:1	11:1	12:1
Installed power	kw	50	90	144	261
Cooling water pressure	Mpa	0.2	0.3-0.4	0.3-0.4	0.3-0.4
Installation size(LxWxH)	m	6x1.5x1.9	17x3.5x5.5	20x3.5x6.1	20x3.5x6.1
Weight	T	2	8	10	12

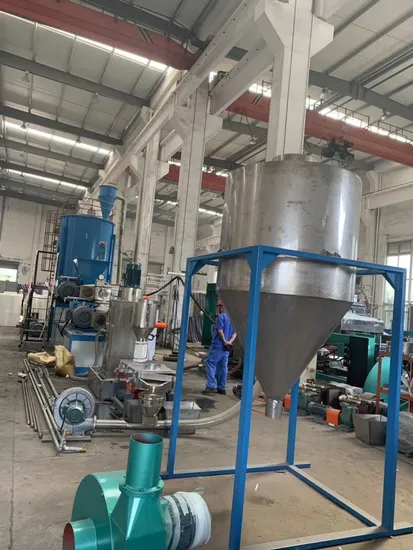

Photos
Packing & Delivery

To ensure your goods' utmost safety, we provide professional packaging services that are environmentally friendly, convenient, and highly efficient, safeguarding your products during transit.



FAQ
1. Q: What material can this machine process? A: The machine is proficient in processing EPS and foam PS materials, offering robust recycling capabilities.
