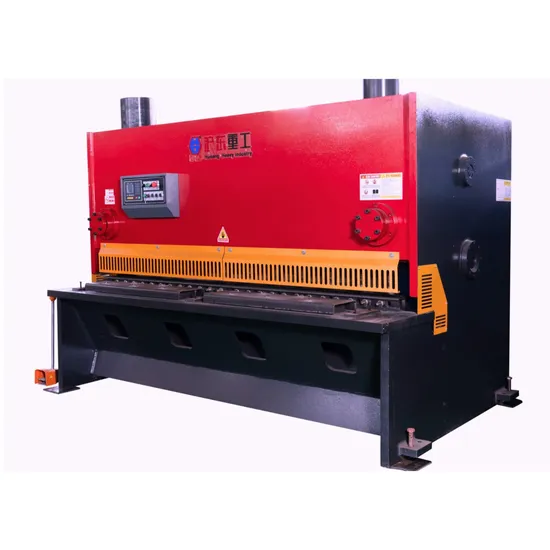

CNC QC11y-16X3200 Metal Steel Cutter Guillotine Hydraulic Pendulum Steel Shearing Machine CNC Shear Cutting Machine

Product Description

CNC QC11y-16X3200 Guillotine Hydraulic Pendulum Steel Shearing Machine Manufacturer Product Description
The Chinese-supplied 3200mm Kingball QC12y Hydraulic Plate CNC Guillotine Hydraulic Pendulum Steel Shearing Machine epitomizes cutting-edge technology and meticulous craftsmanship, designed to deliver exceptional precision in the shearing of steel plates. Discover the advanced capabilities and intricate details of this remarkable machinery:
Product Overview:
The 3200mm Kingball QC12y Hydraulic Plate CNC Guillotine Shearing Machine seamlessly integrates the robust power of hydraulic engineering with the precision-driven advantages of Computer Numerical Control (CNC) technology. This sophisticated combination ensures unmatched efficiency and smooth operation in metal cutting tasks. Featuring a state-of-the-art hydraulic pendulum shearing mechanism, this machine guarantees precise and effortless cutting of steel plates, accommodating a maximum width of 3200mm with ease and precision.
Product Parameters

TYPE	Throat Depth(mm)	Cutting Width(mm)	Width(mm)	Dimension(mm)	Cutting thickness(mm)	Stroke Number(t/m)	Weight(t)	Power(kw)
6*2500	100	2500	410	3120*1600*1900	6	≥15	5	7.5
6*3200	100	3200	410	3800*1600*1900	6	≥15	5.7	7.5
6*4000	100	4000	500	4600*1600*2040	6	≥13	7.5	7.5
8*2500	100	2500	410	3030*1620*1930	8	≥12	5	7.5
8*3200	100	3200	570	3800*1800*2100	8	≥12	7.5	11
8*4000	100	4000	570	4600*1800*2170	8	≥12	/	11
10*2500	100	2500	570	3100*1850*2100	10	≥10	6.5	11
10*3200	100	3200	570	3800*2000*2130	10	≥10	8.5	11
10*4000	100	4000	570	4600*2000*2130	10	≥10	11	11
12*2500	100	2500	540	3200*2000*2050	12	≥10	7	18.5
12*3200	100	3200	600	3900*2100*2500	12	≥10	11	18.5
16*2500	100	2500	550	3330*2000*2240	16	≥10	8.5	22
16*3200	100	3200	600	3850*2020*2460	16	≥6	11.4	22
16*4000	100	4000	600	4700*2000*2550	16	≥7	14.6	22
20*2500	120	2500	600	3100*2000*2510	20	≥6	12	30
20*3200	120	3200	800	3920*2300*2800	20	≥5	17.6	30
20*4000	120	4000	800	4900*2200*2800	20	≥4	21.5	30
25*2500	120	2500	780	3100*2330*2850	25	≥6	18.2	37
30*2500	120	2500	780	3200*2350*2800	30	≥6	20	45
32*2500	120	2500	1000	3490*2440*2915	32	≥5	20	45
32*3200	120	3200	1000	4190*2440*3015	32	≥4	20	45
32*4000	120	4000	1000	5190*2500*3315	32	≥3	20	55
40*2500	120	2500	1000	3590*2540*3300	40	≥4	20	75
40*3200	120	3200	1000	4230*2500*3500	40	≥3	20	75

Detailed Photos
Products Features
E21S CONTROLER
Backgauge control
Control for general AC motors, frequency inverter
Intelligent positioning
Double programmable digital output
Stock counter
Program memory of up to 40 programs up to 25 steps per program
One side positioning
Retract function
One key backup/restore of parameters
mm/Inch
Chinese /English
The E21S Controller is likely equipped with a powerful processor capable of handling complex control algorithms and high-speed data processing. This ensures precise and responsive control over connected machines, devices, or systems,The controller is scalable, allowing it to be easily adapted or expanded to meet changing requirements. This might include adding additional I/O modules, increasing memory capacity, or upgrading software.
Gear motor RV40/90-400-0.37-6P
The Gear Motor RV40/90-400-0.37-6P is a worm gear motor with a 400 frame size, a rated power output of 0.37 kW, and a 6-pole stator winding. It is designed to provide controlled rotation with reduced speed and increased torque, making it suitable for a variety of industrial and automation applications. The specific model number (RV40/90) indicates that it belongs to a particular series or variant within the broader category of worm gear motors.RV40/90: This part of the designation likely refers to the model or series of the gear motor. RV series gear motors are commonly known for their use of worm gears, which provide high reduction ratios in a compact package. The numbers 40 and 90 could indicate different aspects of the motor's design, such as size, capacity, or a specific variant within the RV series. However, without more context, it's difficult to definitively state their exact meaning
Other Componant
Company Profile
HUDONG HEAVY INDUSTRY MACHINERY MANUFACTURING CO.,LTD. is a specialized company, designated by the nation to produce forging equipments, press brake, shearing machine, press machine and rolling machine etc., with a producing histroy of more than30 years.
The company has developed rapidly on design development and manufacture capability of products. We adopt advanced processing equipments, perfect designs, masterly craftwork and beautiful appearance. Our product has a strong structure, and a safe and reliable performance. Part of products win the title of "Award of high quality". And our company has been rated for consecutive years as "AAA Credit Unit", "Heavy Contract, Keep Promise Unit", "Customer Product Satisfaction Demonstration Unit", etc.
Our products have passed certificate of ISO9001:2008 Quality Management System, and all of our products are audited by the European Union CE certification.
The production management scale has been extended year after year with advantaged product market and high recognition by the customer. Since the past 30 years, the company has always adhered to the faithful management idea of "Customer First, Quality First", and established reliable market channel as well as mature clienteles. No matter at the present or in the future, our pursued objective for product quality is always: high-grade, high-precision, advanced technology, striving for manufacturing the most perfect machines.
FAQ
Q1. Are you a factory or a trading company?
A: Maanshan Hudong Heavy Industry Machinery Manufacturing Co.Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than30 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time?
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Maanshan Hudong Heavy Industry Machinery Manufacturing Co.Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.
