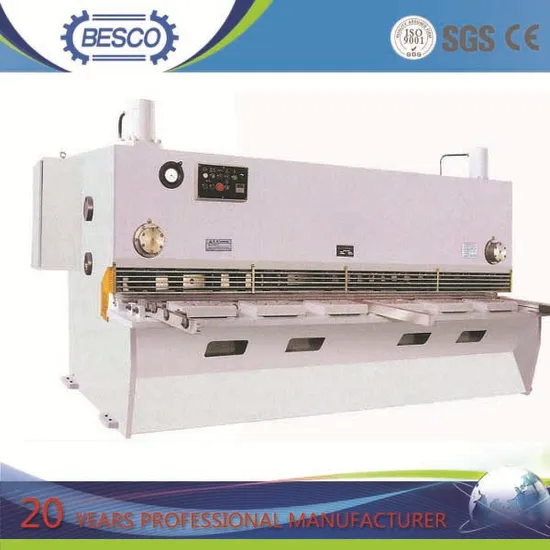

QC11y Hydraulic Guillotine Shear, Steel Plate Shearing Machine

Product Description

QC11y Hydraulic Guillotine Shear, Steel Plate Shearing Machine

performance characteristic

(1).The frame is welded construction with steel plate,Vibration to eliminate stress,With sufficient rigidity
and high strength,steady and reliable performance,easy operation and maintenance.
(2).Hydraulic drive,swing beam,the return of the knife beam is smooth and prompt by nitrogen cylinder.

The back gauge

The back gauge is motorized adjustable,The value is shown on the control on the front of
the machine,Adjusting the gap between blade is portable and prompt,The value of the
gap is indicated on a dial.

The cutting time and Safety

(1).The cutting times are shown in the control on the front of the machine,Equipped with
lighting-alignment device,protective fence and safety inter-locker to ensure the operation safety.
(2).Protective fence and the safety interlocker to ensure the operation safety. Power
supply switch that is set in the electric box will be automatically turned off when the
box's door is opened or the fence is turned up.Protecting barrier with safety interlocker
is mounted on the back of the machine. Another, there are travel limit protection and
foot pedestal mounted emergency off switch.

The blade clearance and the blade

(1).The adjustment of the gap between tools can be showed on an indicating dial.
(2).Adopt handwheel to rapidly and accurately adjust the blade clearance
(3).The rectangular monoblock blades featuring long life with 4 cutting edges, quality
high-carbon high-chrome blades D2 quality.
(4).Light alignment device eases drawing line for cutting, Standard front support sheet
frame, A set of standard blades

The electrics and hydraulic

European key electrics and Hydraulic Valves Advanced integral hydraulic system with good
reliablity-Imported from Germany.

The shearing angle

Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and
can shear much thicker sheet metal.

NC control

Front Operated Motorised Back gauge with digital readout display-Estun E10s, stroke-
Range 10 to 750 mm.

Ball

Rolling plate support of the machine, this can reduce the hurt of the plates and reduce the conflict force.
NC shearing machine,NC cutting machine for sale parameter

Model	Cutting thickness (mm)	Cutting width (mm)	Cutting angel (°)	Travel times (min-1)	Back gauge range (mm)	Anti-strength of plate (N/mm2)	Main power (Kw)
QC12Y-4*5000	4	5000	1.5	10	20-500	450	7.5
QC12Y-6*2500	6	2500	1.5	18	20-500	450	7.5
QC12Y-6*3200	6	3200	1.5	14	20-500	450	7.5
QC12Y-6*4000	6	4000	1.5	12	20-500	450	7.5
QC12Y-6*6000	6	6000	1.5	8	20-500	450	11
