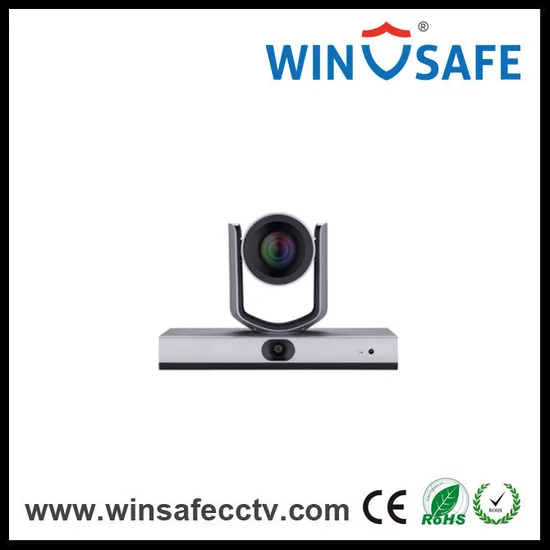

Amc-G200th Video Conference Speaker Voice Tracking USB IP PTZ Camera Church Broadcast Webinar
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
AMC-G200TH
Shape
Speaker Tracking Camera
Material
Plastic
Resolution Ratio
1920X1080
Feature
USB, HD, 3G-SDI
Language Support
English
Usage
Video
Image Sensor
1/2.8" Exmor CMOS, 2 MP
Focal
F = 3.9mm - 46.8mm
Iris
F1.6 - F2.8
Zoom
Optical: 12X, Digital: 12X
Field of View
72.5° - 6.3°
White Balance
Auto, Indoor, Outdoor, One Push,Manual, Auto Track
Video Adjustments
Support Eptz
Full-View
98
Preset Number
64
Transport Package
Neutral
Specification
CE, FCC, Rohs etc.
Trademark
WINSAFE/OEM
Origin
Shenzhen, Guangdong
HS Code
8525801390
Production Capacity
10000PCS/Month
Product Description
AMC-G200TH speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technology, it can automatically switch between close-up image to frame speakers and full view image to frame the whole room, it frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.
AMC-G200TH HDMI Video Conference Speaker Voice Tracking USB IP PTZ Camera
1/2.8" Exmor CMOS, 2MP
12x optical zoom, up to 72.5 degree FOV
Simultaneously output 3G-SDI, HDMI, USB2.0, Ethernet, up to 1080P60 resolution
Support H.264/H.265 video compression
Implemented with both audio positioning, body detection and recognition technologies, it can precisely frame the speakers, support AEC
Automatically switch between close-up image for speaker(s) and wide-angle image for all attendees
Built-in switch rules according to actual meeting scenes
| Model No. | AMC-G200TH | |
| Image Sensor | 1/2.8" Exmor CMOS, 2 MP | |
| Video Standard(HD) | 1080p60,1080p50,1080p/30,1080p/25,1080i/60,1080i50,720p/60,720p/50 | |
| Focal | f = 3.9mm - 46.8mm | |
| IRIS | F1.6 - F2.8 | |
| Zoom | Optical: 12X, Digital: 12X | |
| Field of View | 72.5° - 6.3° | |
| Focus | Auto, Manual, PTZ Trigger AF, One push | |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) | |
| Shutter Speed | 1/25 - 1/10,000s | |
| AGC | Auto/Manual | |
| White Balance | Auto, Indoor, Outdoor, One push,Manual, Auto Track | |
| AE Control | Auto, Manual, Shutter Priority, Iris Priority | |
| S/N Ratio | Above 50dB | |
| DNR | 2D/3D | |
| BLC | Support | |
| Full-View Camera | ||
| Image Sensor | 1/2.5" 4K CMOS, 8.57MP, 2.8mm | |
| Lens | Prime lens, 4X Digital Zoom | |
| Field of View | 98° | |
| Video Adjustments | Support EPTZ | |
| PTZ | ||
| Pan/Tilt Range | -90° - +90°; -30° - +90° | |
| Preset Number | 64 | |
| Network | ||
| Max,Image Size | 1920x1080 @ 60fps | |
| Video Compression | H.265,H.264 | |
| Audio Compression | AAC | |
| Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF | |
| Steam | Support 1 Tracking, 1 Full-view, 1 Switching, three steams in total | |
| Interface | ||
| Video Output Audio Input | 1 x HDMI interface, 1 x 3G-SDI Interface, 2 x LINE IN, including one channel with EC | |
| Audio Output | 1 x Line out | |
| Network Interface | 1 x 10M/100M | |
| USB Interface | 1 x USB2.0, Support UVC/UAC | |
| Control Interface | 1 x RS-232 | |
| General | ||
| Control Protocol | VISCA | |
| Address | 1 - 6 | |
| Power Supply | DC12V | |
| Power Consumption | Below 20W | |
| Working Temp | 0°C - +40°C | |
| Storage Temp | -20°C - +60°C | |
| Dimension | 245mm x 145mm x 165mm | |
| Weight | Below 2kg | |
