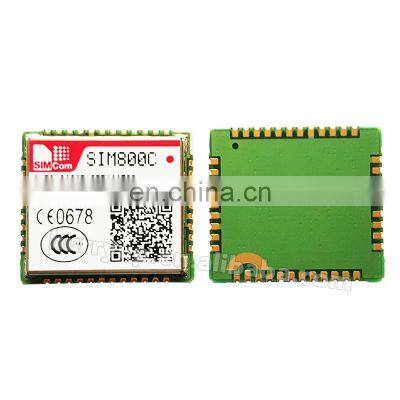

SIMCOM SIM800C GSM Module, SIM800C 2G GSM Wireless Module

Product Description

Product Description
DescriptionSIM800CGSM/GPRS ModuleThe SIM800C is a Quad-Band GSM/GPRS module in a LCC type which supports GPRS up to 85.6kbps data transfer. It has strong extension capability with abundant interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.Product Advantages● Small size quad-band GSM/GPRS module● LCC form factor, easy for solder● Abundant software functions: DTMF, MMS, MUX● Low Power consumption● Embedded TCP/UDP protocolsGeneral features• Frequency Bands: 850/900/1800/1900MHz• GPRS multi-slot class: 12/10• Dimensions: 17.6*15.7*2.3mm• Weight: 1.3±0.1g• Supply voltage: 3.4 ~ 4.4V• Operation temperature:-40℃ ~85℃• Compliant GSM phase 2/2+: Class 4 (2W @ 850/900MHz)• Compliant GSM phase 2/2+: Class 1 (1W @ 1800/1900MHz)• Control via AT commands (3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands)• Low power consumption• GPRS mobile station class BSpecifications for GPRS Data• GPRS class 12: Uplink/Downlink up to 85.6Kbps• PBCCH support• Coding schemes CS 1, 2, 3, 4• PPP-stack• USSDSpecifications for SMS via GSM/GPRS• Point to point MO and MT• SMS cell broadcast• Text and PDU modeSoftware features• 0710 MUX protocol• Embedded TCP/UDP protocol• FTP/HTTP/POP3/SMTP• MMS• D TMF• Jamming Detection• Audio Record• LBS*• SSL/TLS*• BT 3.0*• TTS*• EAT*Specifications for voice• Speech Codec Modes– AMR/HR/FR/EFR• Echo Arithmetic– AEC/EESInterfaces• Analog audio interface• UART• (U)SIM card(1.8V/3V )• RTC• ADC• GPIO• Antenna: GSM/BT*Certifications• CE/ACMA/FCC/GCF• 3C/SRRC/NAL• TIM• RoHS/REACH• Deutsche TelekomNote*: optionalWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
