Npl-2000d Advanced Fiber Grinding Machine Fiber Polisher Grinder Glass SMA Optical Fiber Cable Connector Polishing Machine Fiber Optic Polishing Machine

Product Description

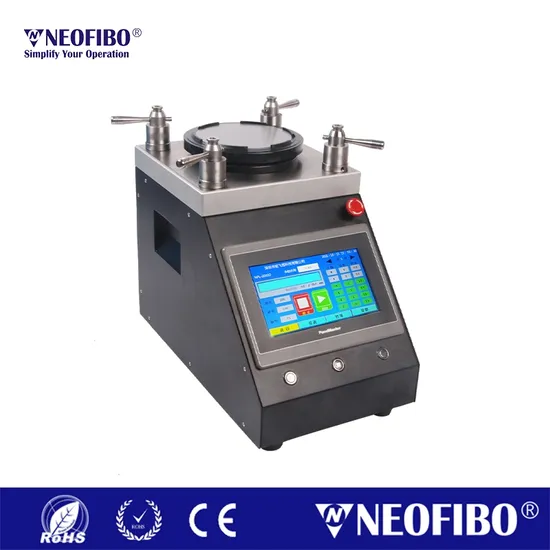

NEOFIBO NPL-2000D Glass SMA Connector Polishing Machine Fiber Optic Polishing Machine Platic Fiber Polishing Solution Neofibo : Your Reliable Supplier
* Can provide you with reliable polishing solution * 17+ year Manufacturing Experience for OEM/ODM polishing program* Independent research and development patent - Neoholder®* Products have CE, ISO 9001,ROHS certification * Support online video synchronization inspection machine* Equipment test report and operation guide can be provided * SGS certified factory, delivery speed and secure,50 units in stock* 30 days quality problems can be returned Products Description Description:The machine is suitable for end face grinding of fiber optic patch cords and fiber optic precision components, and can be used for product development trial production and feasibility verification. Multi-group data storage function, providing experience, inherited polishing parameter management, reducing the over-reliance on technical experience for polishing yield.Customized polishing fixtures provide more efficient and reliable polishing solutions for polishing equipment. Product Features:
* Built-in human-machine interface design, PLC control system;
* Inverter motor power priming, gentle starting and stopping, deceleration without loss of power;
* Built-in proven polishing parameters, up to 20 sets of parameters stored;
* Reduced over-reliance on technical experience for polishing yield;
* Polishing pressure is manually adjustable;
* Digital quantitative control of speed and time;
* Clockwise and counterclockwise rotation for precise control of the polishing volume;
* Polishing of 36 to 72 fiber optic connectors at one time.
* 1 to 6 polishing steps can be programmed as required.
Applications:
* Polishing of SC FC ST E2000 LC MU UPC and APC end faces.
* Widely used for polishing ceramic ferrules and MPO ferrules of optical fiber connectors.
* Polishing of mini-MT ferrules, multi-core fiber LENS and JUMPERs.
* Polishing of fiber arrays and glass capillaries using custom fixtures.
* Polishing of SMA905, D80 and other metal connectors.
* Polishing of PMMA plastic fibers and HFBR connectors.
* Polishing bare 300-micron quartz fibers, optical and optical medical fibers. Main parameters

Model	NPL-2000D
Control system	PLC and HMI
Pressure source	Four-corner pressure column pressurisation
Pad and sandpaper size	127mm
power	100W
Voltage	220V AC 50Hz
Application	Polishing of conventional and non-standard fibre optic connectors
Suitable connectors	SC FC ST E2000 MU LC MPO SMA MPO
Machine size	22*27*29cm
Package size	53*38*59cm
Net weight	22.0 kg
Gross weight	36.5 kg

Click Here And View More >>>Go
Standard configuration

No.	Product	Quantity	Unit
1	Polishing machine	1	set
2	Power cable	1	piece
3	Cable holder	1	set
4	Operating instructions	1	piece

Optional products and consumables

No.	Product	Quantity	Unit
1	Polishing fixture	1	piece
2	30um polishing film (100 pieces)	1	pack
3	9um polishing film (100 pieces)	1	pack
4	1um polishing film (100 pieces)	1	pack
5	0.02um polishing film (100 pieces)	1	pack
6	70 degree polishing rubber pad (HRP-5-70)	1	piece
	75 degree polishing rubber pad (HRP-5-75)	1	piece
	80 degree polishing rubber pad (HRP-5-80)	1	piece
	85 degree polishing rubber pad (HRP-5-85)	1	piece
	90 degree polishing rubber pad (HRP-5-90)	1	piece
7	4.80mm Polishing Glass Pad (PG5X-480-00)	1	piece
	4.90mm Polishing Glass Pad (PG5X-490-00)	1	piece
	5.00mm Polishing Glass Pad (PG5X-500-00)	1	piece
8	Polishing liquid (500ml)	1	bottle

Contact Us >>>Go
Note: Please refer to the product manual and the product information on the website for a variety of polishing fixture models; please consult our sales staff for polishing consumables as the material of the polished product varies greatly.
To know more products, please check quick links below connected to our homepage. Feel free to contact us.

Fiber Polishing Machine	Fiber Polishing Fixture	Fiber Production Line Equipment	PM Fiber Alignment Systerm	Fiber Polishing Consumable
Fiber Cleaning Solution	Optical Power Meter	Fiber Tool	Fiber Optic Connectors and Apater	Indoor Cables

Helpful Links
For instant communication, please click hereFor our catalogs, please click hereFor our home page, please click here
If you can't find a fixture suitable for you, please contact the supplier, we have professional staff to provide you with services.
Polishing Effect
About Us Shenzhen Neofibo Technology Limited.We have 17+ years experience. We could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support. FAQ
1.About the fixture of NEOPL-2000A, does it works perfect with the Seikoh Giken 550 polishing machine ?Yes, we confirm that it works perfect with the Seikoh Giken 550.
2.Polisher can't work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.
3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn't be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Please contact us if you have any questions or needs.
