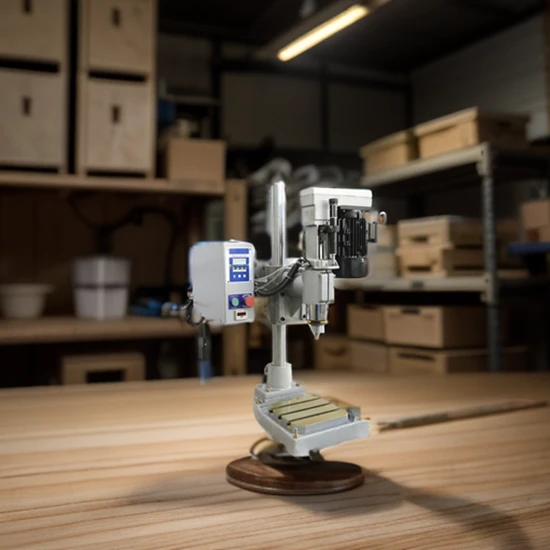

74 Versatile Pneumatic Drilling and Tapping Machine

Product Description

Product Description
Characteristic 1. This state-of-the-art drilling machine boasts exceptional precision and can be seamlessly integrated with two or four-axis multi-axis machines for streamlined drilling processes.
2. Experience significant electricity savings coupled with remarkable efficiency.

The main technical parameters
Speciflation	SS-74 automatic drilling machine	SS-92 automatic drilling machine
Spindle Taper	B16	B16
Buffer travel	30mm-60mm	30mm-60mm
spindle travel	80mm	80mm
spindle speed	1400-4000	1400-4000
Max drilling capacity	1.5mm-8mm	2mm-16mm
motor power	0.75kw	0.75kw
Number of available multiple shafts	2-4	2-10

Hot Product
Company Information

FAQ
1. Can the drilling machine perform tapping operations?
No, the drilling machine is engineered solely to create holes.
2. Is the machine's spacing adjustable?
Yes, it can be adjusted to suit various applications.
3. Is the cutting tool prone to breakage?
It is designed to resist breakage when used correctly.
4: If we require a non-standard machine, what information should we provide?
Please provide us with the following details.
1: A detailed drawing of your product.
2: Product samples for reference.
3: The product's dimensions: height, width, and thickness.
4: The range specs of the holes: maximum and minimum.
5: Material specifics: thickness, width, and the number of drilling and tapping holes required.
5: Can non-standard machines handle both tapping and drilling tasks?
YES, they can expertly manage both tasks.
6. Payment Terms
Upon signing the contract, a 40% deposit is required to activate the agreement.
7. Production Arrangement
Mass production commences after deposit receipt. Typically, CNC milling machines are ready in 20 days, while automatic drilling and tapping machines are completed within 15 days.
8. Packaging
We highly recommend using wooden box packing to ensure the product's safety during transit.
9. Acceptance Inspection Upon receipt, thoroughly inspect the product for any packing damage, leaks, or discrepancies in quantity and accessories. In case of any issues, promptly take pictures and contact us.
10. Warranty Duration
Enjoy a one-year warranty. We provide free components within the first year unless damage is intentional. We offer lifelong maintenance support. Post-warranty, components and express fees are chargeable.
We offer on-site debugging and training, with costs borne by the customer. This includes airfare between China and the destination, as well as complimentary accommodation and meals.
The 12-month warranty starts upon machine delivery. Should any issues arise, our engineers will respond within 24 hours. Support continues even post-warranty, with each CNC machine accompanied by English maintenance and operation manuals.
11. OEM Service
We welcome orders featuring customers' brands or trademarks.
