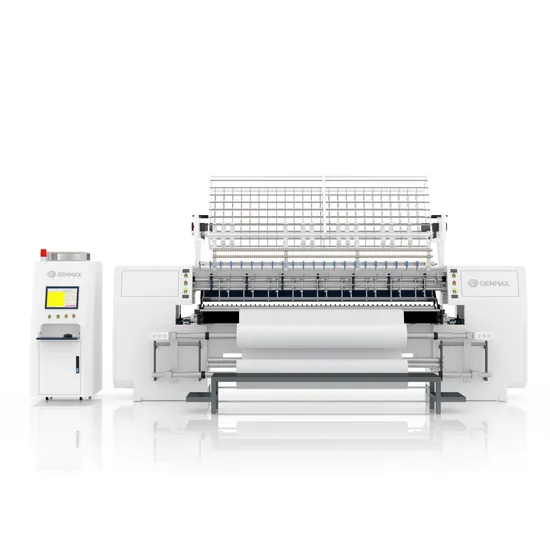

Computer Multi Needle Quilting Sewing Machine for Quilt Maquina PARA Hacer Acolchados
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
YS-94
Certification
ISO, CE, SGS
Condition
New
Voltage
380V
Type
Computerized Quilting Machine
Quilting Width
2400mm
Space Between Needles
25.4mm
Thickness of Quilting
≤30mm
Stitch Length
2~7mm
Speed of Production(M/H)
60-100 M/H
Transport Package
Wooden Case
Specification
Set
Trademark
Genmax
Origin
China
HS Code
84522190
Production Capacity
100sets
Product Description
If you need more detailed information and other models, please email us. We will promptly reply to you.Advantages:
1.Panasonic servo drive system.
2.Needle bar and press plate are connected by a cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
3.Both serial patterns and Tack & Jumppatterns (360° and 180°) are available..
4.The machine can automatically stop when the thread breaks.
5.Computerized automatic needle-lifting and speed adjustment
6.New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting
7.Precise CAD drawing.
8.Fault detecting system
| Model | YS94 | Dimension(L×W×H) | 4700 x 1370 x1780mm |
| Quantity of needle bar | 3 | Quilting width | 2400mm |
| Space between needle bars | 76.2,152.4mm | Space between needles | 25.4mm |
| X-axis movement displacement | 304.8mm | Thickness of quilting | ≤30mm |
| Stitch length | 2~7mm | Speed of production(m/h) | 60-100 m/h |
| Model of needle | 14#-21# | Speed of main shaft(RPM) | 300~800rpm |
| Total power required | 4.5KW | Voltage | 380V/50HZ 220V/60HZ, 3-Phase |
| Gross weight | 3200KG |
