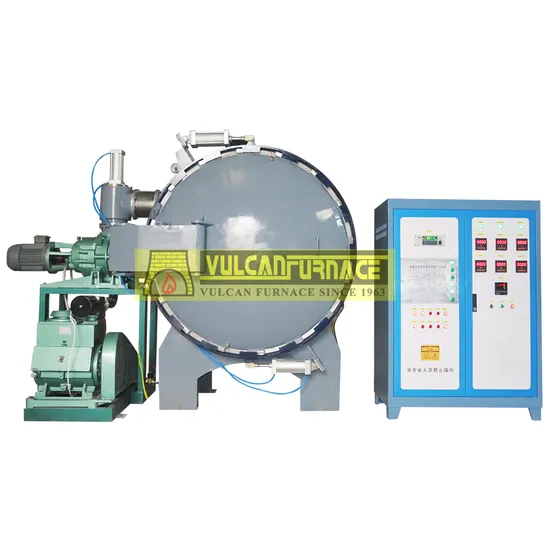

Factory Direct High-Temperature Vacuum Furnace Vf-16zkl for Precision Heat Treatment

Product Description

ApplicationEquipment widely used in universities, research institutes, industrial and mining enterprises such as powder,electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractory materials,building materials, chemicals, metal sintering and metal heat treatment Experiment and production.
Technical CharacteristicsThis equipment has introduced advanced technology, independent research and development of energy saving,environmentally friendly new electric furnace, the device has a scientific and rational design technology, elegant appearance, advanced and reasonable structure, easy operation, high-quality cold-rolled steel shell, the precision CNC machining, Luxury, beautiful two-color imported epoxy powder electrostatic spray process from processing, high temperature, corrosion-resistant, long-term from fade.
The furnace has a uniform temperature field, the surface temperature of the double-layer heat-resistant furnace body is close to room temperature, and the heating and cooling functions are adjustable. The furnace adopts imported high-temperature composite fiber materials and is constructed by a numerical control process. Chilling heat, corrosion resistance, non-collapse, no crystallization, no residue, no pollution, long service life. The control system uses microcomputer intelligent adjustment technology, with PID adjustment, automatic control, self-tuning function,50 sections of programming, and the preparation of a variety of heating, thermostat, cooling program, temperature control accuracy. Protection device using independent protection: (over-temperature, over-voltage, super-current, broken even, power, leakage, short circuit, etc.). In addition, through our independent research and development of control software, electric furnace and computer associated single or multiple furnace can be achieved remote control, start the electric furnace, stop the electric furnace, set the temperature program, temperature program storage, view the history curve, print Historical curve and so on. Honors: ISO9001: 2008, CE ,AAA certificateDetails Images
With AccessoriesVULCAN FURNACE each furnace product comes with the appropriate accessories and instructions to
facilitate customer trial.
Product Parameters

Chamber Material	Chamber Size	Voltage	Power KW	Temp precision
aluminium oxide fiber	200*150*150	220	4	±1 ºC
aluminium oxide fiber	300*200*120	220	6	±1 ºC
aluminium oxide fiber	300*200*200	380	10	±1 ºC
aluminium oxide fiber	400*250*160	380	12	±1 ºC
aluminium oxide fiber	400*300*300	380	14	±1 ºC
aluminium oxide fiber	500*300*200	380	15	±1 ºC
aluminium oxide fiber	500*300*300	380	18	±1 ºC
aluminium oxide fiber	500*400*400	380	20	±1 ºC
aluminium oxide fiber	500*500*500	380	25	±1 ºC
aluminium oxide fiber	800*500*500	380	40	±1 ºC
aluminium oxide fiber	1200*800*800	380	95	±1 ºC
aluminium oxide fiber	2000*800*800	380	150	±1 ºC
Temp:800°C,1200°C,1400°C,1600°C,1700°C,1800°C,2200°C
OEM size,temperature,vacuum system,atmosphere system can be accepted

Company Profile
Henan Vulcan Furnace Industry Co., Ltd. was founded in 1963, formerly one of the earliest state-owned large-scale design institutes engaged in the production and research of electric furnaces in China. After the restructuring of the Design Institute in 1999, some technicians founded the Henan Electric Furnace Research Institute, mainly engaged in the production and technical consultation of various electric furnaces. In 2022, Henan Electric Furnace Research Institute integrated a number of domestic and foreign first-line supporting enterprises and changed its name to Vulcan Furnace Industry, located in the High-tech Zone of Luoyang City, Henan Province, China. Vulcan furnace industry has passed the ISO9001 quality system certification, CE certification, a total of 3 factories, with a total area of 15000 square meters. Vulkan Furnace has more than 10 senior engineers and more than 100 workers. With nearly 70 years of production experience and excellent quality, we have established long-term good cooperative relations with many large domestic scientific research institutes, research institutions, universities, medical institutions, large production enterprises, and listed companies.So far, Vulcan electric furnaces have been exported to more than 30 countries and regions such as the United States, France, Russia, Canada, the United Kingdom, Australia, South Korea, Turkey, India, Pakistan, South Africa, Brazil, Thail. Welcome to contact us and establish a good cooperative relationship!
Certifications
Production Process01 AUTOMATIC CUTTINGThe CNC machine tool used for automatic cutting can cut out very precise shapes according to the drawings, with an error of nomore than 0.02mm, which ensures that the electric furnaces of Vulcan Furnace Industry have a beautiful appearance and are durable.
02 FOLDING MACHINEMicrocomputer control, safe production and protection. Set up the data sheet according to the drawing, then fold the steel plate
into the specified angle. All these components form the frame of the Vulcan electric stove.
03 WELDINGPrecision welding, the different parts of the electric furnace are welded together, the weld seam is beautiful and reliable, and
all have been polished and polished many times.04 EPOXY RESIN SPRAYINGEpoxy resin spraying with thickness up to the standard can accept a variety of color customization, waterproof and anti-corrosion,
the surface is very good, and the color can be maintained for a long time. 05 INSTALLATION & COMMISSIONINGInstall high-quality heating elements, chambers, and wires into the furnace step by step according to the standard operating
procedure for electric furnace installation. The display screen can adjust the program to English or Chinese according to customer
needs.06 COMPLETEDVulcan furnace has a strong mass production capacity and design level, and can manufacture different types of furnaces from small
to large. The temperature is from 800-3600 degrees Celsius.07 PACKAGE
Vulcan Furnaces has extensive experience in the packaging of electric furnaces. Heating elements that are too brittle will beindividually packaged to avoid damage during transportation. The packaging includes shock-absorbing air bubble pads, woodenpallets, steel frame pallets, plywood wooden boxes, etc.
FAQ Q: What is the MOQ ?
* A: 1 set for our standard furnace
Q: Can I ask for special designs?
A: Sure! And it's Free!
Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: Can I send the sample to you to test the furnace before I buy it ?
A: VULCAN FURNACE has a professional product test center, which can provide perfect product testing.
Q: When you ship my order?
A: For conventional standard-sized experimental and industrial furnaces, we usually have stock that we can ship in 2-3 days. Custom products are usually delivered in 10-30 days.
Q: How about the quality guarantee period?
A: One year!
Q: How can you guarantee the production quality ?
A: We have more than 60 years experience in this field. We have strictly quality control system in our production process. We have4 times inspection for each finished product before package.
