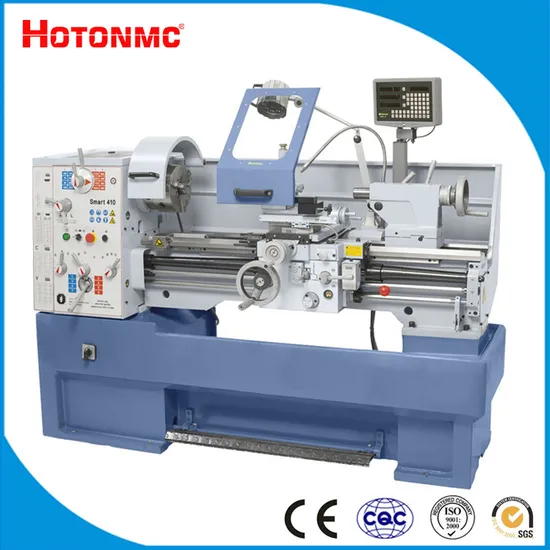

Universal metal horizontal gap bed turning lathe CD6241 CM6241 CM6241V
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6246 CM6241 CM6241V
Guide Rail
Horizontal Guide Rail
Tool Holder
4 way tool post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
460mm
Swing Over Cross Slide
270mm
Width of Bed
300mm
Taper of Spindle Bore
MT6
Spindle Bore
58mm
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOTONMC
Origin
Shandong, China
HS Code
8458190000
Production Capacity
10 PCS/Month
Product Description
METAL LATHE MACHINE FEATURES:
The guide way and all gears in the head stock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful head stock gear train, high rotating accuracy and smooth running with low noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
SPECIFICATIONS:
| SPECIFICATION | MODEL | |||||||||||
| C6241×1000 | C6241V×1500 | C6246×2000 | C6246V ×1000 | C6246V ×1500 | C6246V ×2000 | |||||||
| Capacity | ||||||||||||
| Swing over bed | 410 | 460 | ||||||||||
| Swing over cross slide | 220 | 270 | ||||||||||
| Swing in gap diameter | 640 | 690 | ||||||||||
| Distance between centers | 1000 | 1500 | 2000 | 1000 | 1500 | 2000 | ||||||
| Valid length of gap | 165mm | |||||||||||
| Width of bed | 300mm | |||||||||||
| Headstock | ||||||||||||
| Spindle nose | D1-6 | |||||||||||
| Spindle bore | 58mm | |||||||||||
| Taper of spindle bore | No.6 Morse | |||||||||||
| Range of spindle speed | 12 changes, 25~2000r/min | |||||||||||
| Feeds and threads | ||||||||||||
| Compound rest travel | 128mm | |||||||||||
| Cross slide travel | 285mm | |||||||||||
| Max.section of tool | 25×25mm | |||||||||||
| Lead screw thread | 6mm or 4T.P.I. | |||||||||||
| Longitudinal feeds range | 42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev) | |||||||||||
| Cross feeds range | 42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev) | |||||||||||
| Threads metric pitches | 41 kinds, 0.1~14mm | |||||||||||
| Threads imperial pitches | 60 kinds, 2~112T.P.I. | |||||||||||
| Threads diametral pitches | 50 kinds, 4~112DP | |||||||||||
| Threads module pitches | 34 kinds, 0.1~7MP | |||||||||||
| Tailstock | ||||||||||||
| Quill diameter | 60mm | |||||||||||
| Quill travel | 130mm | |||||||||||
| Quill taper | No.4 Morse | |||||||||||
| Motor | ||||||||||||
| Main motor power | 5.5kW(7.5HP) 3PH | |||||||||||
| Coolant pump power | 0.1kW(1/8HP) 3PH | |||||||||||
| Dimension and weight | ||||||||||||
| Overall dimension(L×W×H) | 220×108×134 | 275×108×13 | 325×108×134 | 220×108 ×137 | 275×108 ×137 | 325×108 ×137 | ||||||
| Packing size(L×W×H) | 225×112×162 | 280×112×156 | 330×113×156 | 225×112 ×162 | 280×112 ×156 | 330×113 ×156 | ||||||
| Net weight | 1580kg | 1745kg | 1900kg | 1645kg | 1810kg | 1965kg | ||||||
| Gross weight | 1845kg | 2050kg | 2230kg | 1910kg | 2115kg | 2295kg | ||||||
| STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES |
| 3 jaw chuck Sleeve and center Oil gun | 4 jaw chuck and adapter Steady rest Follow rest Driving plate Face plate Working light Foot brake system Coolant system |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
