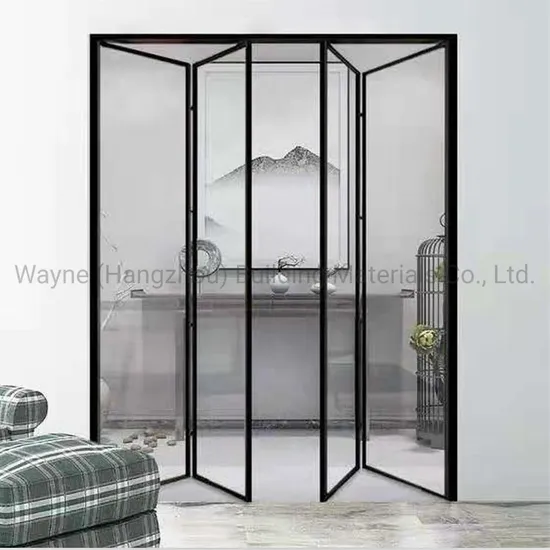

Modern Design Home Kitchen Living Room Use Slim Frame Interior Glass Door

Product Description

Brief Introduction :
Our Aluminium Sliding Bi Folding Doors/ Bi-Fold Doors really are the ultimate of all Doors, creating that extra space and improving your view in almost any house, we believe it's one of the best investments you can make in your home.
We offer many different threshold/cill options depending on the doors purpose, we offer the best in security, sheer style, elegance, reliability and simplicity.
Larger View :
No Pillar at 90 degree corners, it makes a larger view and allow abundant sunshine comes into the glass house.
Openning Method:
Product Details : Aluminium Swing Handle
Automatic Door Locking function
Just One Pull - It is locked
A press and a pull - It opens
Systematic Profile Design
Completely Hidden --
when the door leaf is closed
Elegant & Simple Appearance
Advantage of our 68 series folding door / bi-folding door system:
1. Door Structure Width: 68mm
2. Single Sash Width: 680-1200mm
3. Single Sash Height: 3800mm
4. Glass Thickness: 6-45mm
5. Single sash load capacity: 120 KGS
6. Exterior hardware: Pulley bracket, handle,etc. could be customized color same as per profile color
7. Unique anti-falling fittings, avoid door sash falling down, make sure safety
8. Non-thermal break options also available
Function of our 68 series folding door / bi-folding door system:
1. Water tightness : 1000 Pa
2. Wind pressure resistance: 4270 Pa
3. Air tightness: 300 Pa
4. Heat Insulation: Uw 2.4 W/m2.K
(Test sample with W 4000mm * H 3000mm, 4 sashes folding door)
Product Description

Profiles	6063-T5 high quality thermal break aluminium profile, thickness 2.0 mm 6063-T5 high quality non-thermal break aluminium profiles, thickness 2.0 mmPVC/UPVC profiles
Glass	Double toughened glazing:5mm+12A+5mm (A:Air);5mm+12A+5mm tinted; 5mm+12A+5mm Low-E; 5mm+27A+5mm Single toughened glazing: 3/4/5/6/8/10/12/15/19/21//6.38/11.76mm Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm
Hardware	German brand: Roto, Siegenia, GezeAustralian brand: DoricChinese brand: Kinlong
Mesh	Stainless steel security meshAluminium security meshFiberglass flyscreenRetractable flyscreen
Finish	Powder coatingAnodizedElectrophoresisWood grainFluorine carbon coating

Functions and Feature Details :
1. Max height : 3800mm
2. Double Seal, with waterproof and anti-pinch hand function
3. Bottom railing drainage system design, make sure the system with good waterproof function
4. Profile Thickness 2.0mm
5. Stainless Steel Sliding Wheel and Guide Rails to make sure anti-corrosion and sliding smoothly
6. The compact sealing German adhesive between profiles, good corner connection strength and waterproof function, with nice and neat window frames
7. Width and height adjustment element, the sash width and height could be slightly adjusted
8. Top hung guide rail and wheel system, make sure the folding sashes safety while openning and close
Factory View:
Packing & Loading:
Project Case:
3 left + 3 right Aluminium folding doors for Outdoor Aluminium Glass Sunroom for SPA sun house
Main Aluminium and Upvc window and doors that we provide :
1. Aluminium Sliding Door
2. Aluminium Folding Door
3. Aluminium Entrance French Door
4. Framess Glass Door
5. Aluminium Tilt Turn Window
6. Aluminium Casement Window
7. Aluminium Sliding Window
8. Motorized skylight window
9. Fold up window /vertical folding window
10. Vertical sliding window
Slim Frame Folding Doors
